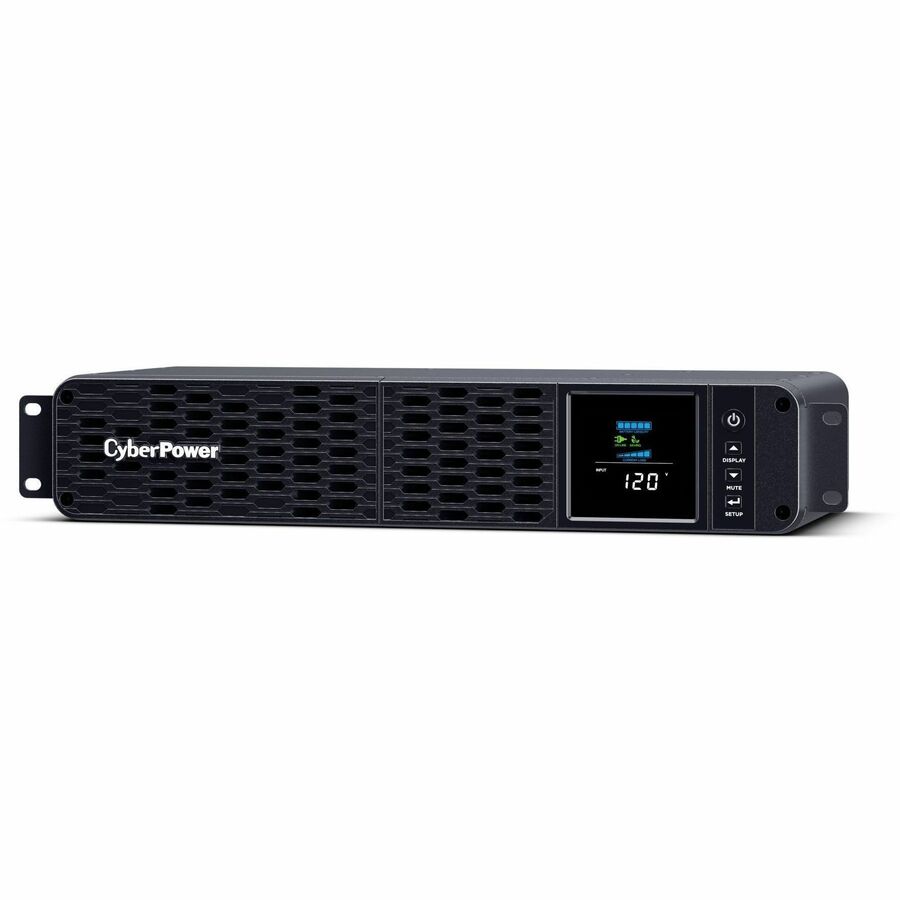

CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems

Name: CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems
Brand: CYBERPOWER
SKU: 04PW04
Price: 359.95 USD
Availability: InStock

CYBERPOWER

PCN#

04PW04

MFG#

CP1500PFCRM2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$359.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1500VA/1000W, 120 VAC, NEMA 5
15P, 2U, Rackmount, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $500000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778Energy StarYesCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 30 lbs.

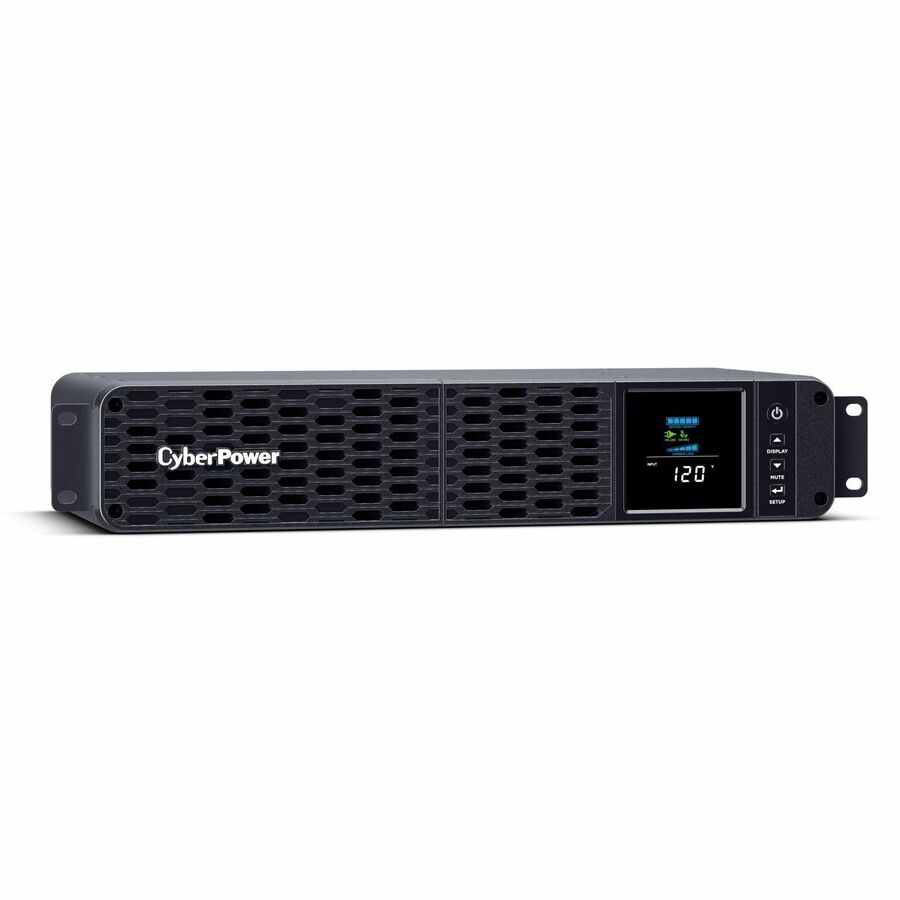

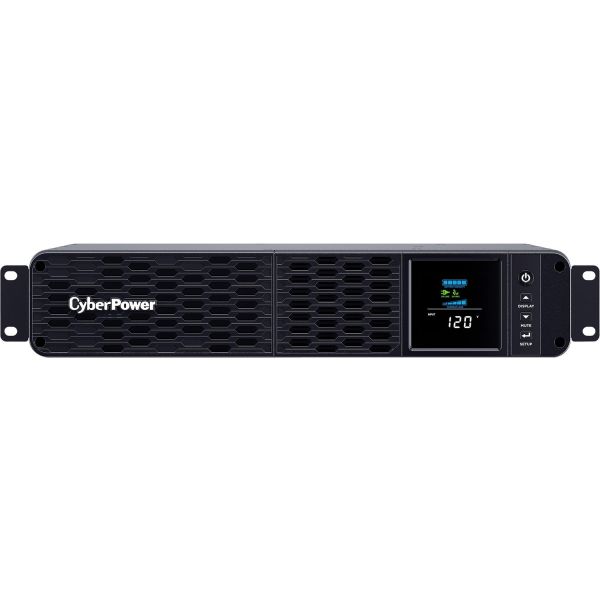

CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP1500PFCRM2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Line	PFC Sinewave
Product Series	PFC Sinewave UPS
Product Model	CP1500PFCRM2U
Product Name	CP1500PFCRM2U PFC Sinewave UPS Systems

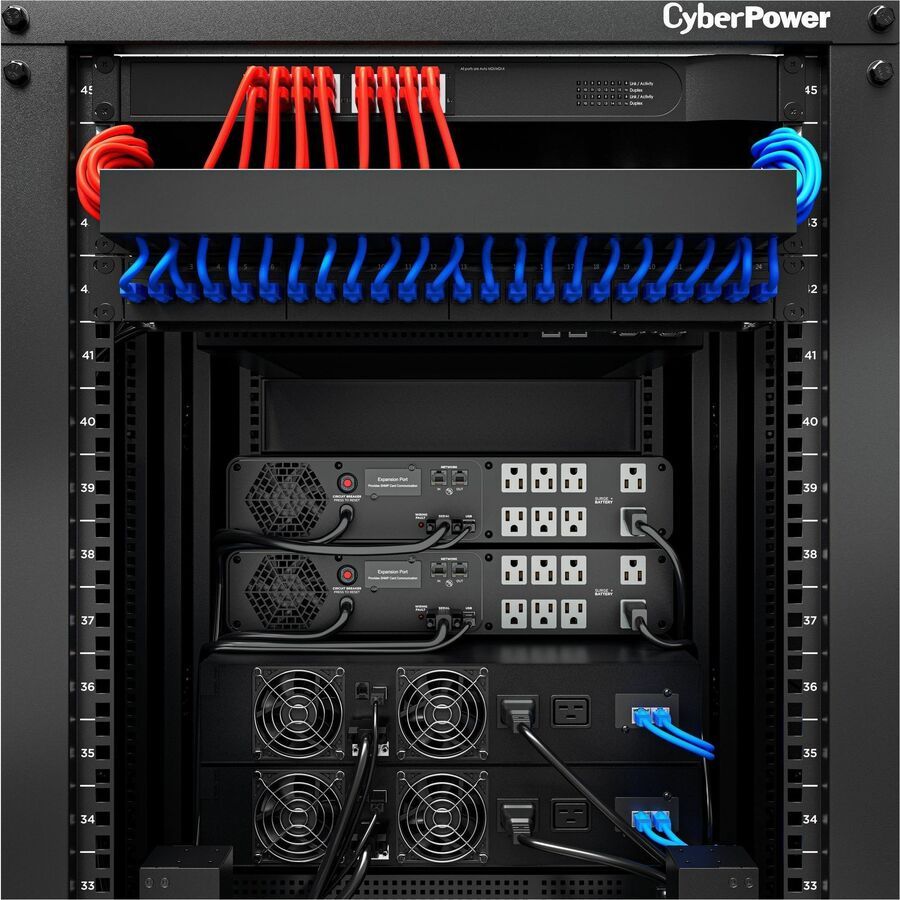

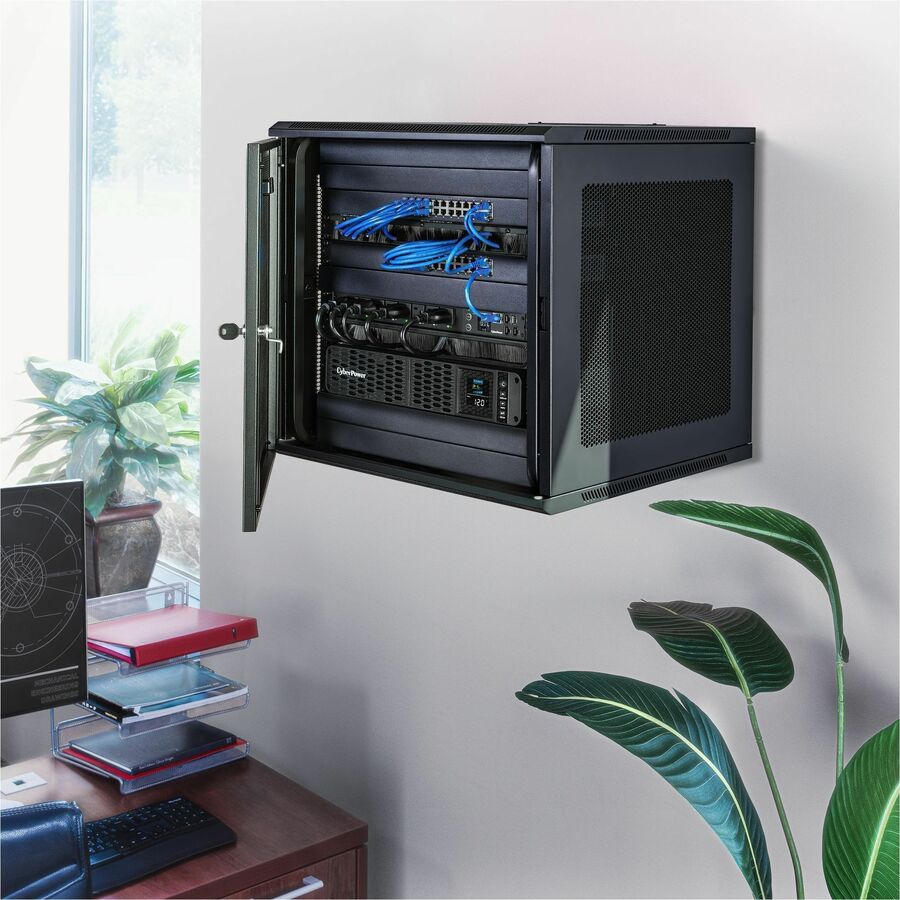

Marketing Information	The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility. The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium. The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a 500,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

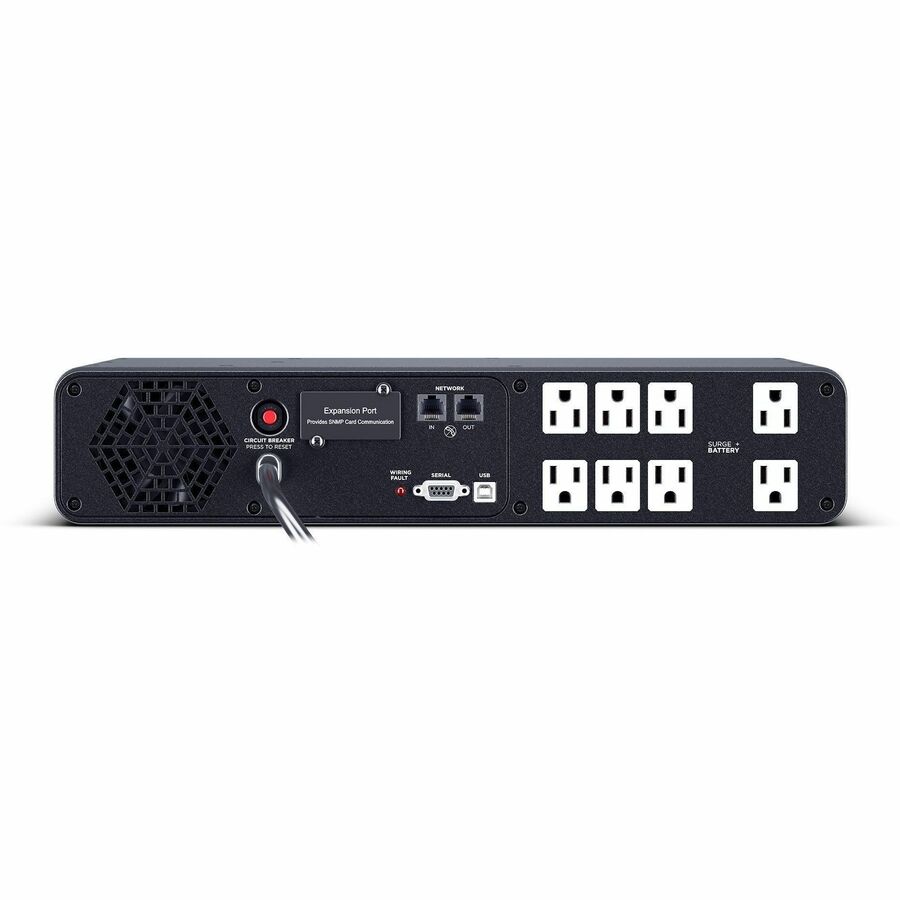

Receptacle Detail	8 x NEMA 5-15R
Number of Battery & Surge Outlets	8
Dataline Protection	RJ-45
Overload Protection	Yes
Cord Length	6 ft
Transfer Time	8 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Application/Usage	Surveillance System Security System POS Network Device Storage Device Audio System
Surge Suppression	Yes

Power Description

Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1000 W
Input Voltage	120 V AC
Input Voltage Range	82 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	50 Hz 60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	1500 J
Circuit Breaker	Yes
Output Power Factor	0.7

Display & Graphics

Display

LCD

Management

Network Management	Dry Contact SNMP/HTTP Remote Monitoring
Alarm	Battery Mode

Controls/Indicators

Status Indicators

Wiring Fault

Interfaces/Ports

Serial Port	Yes

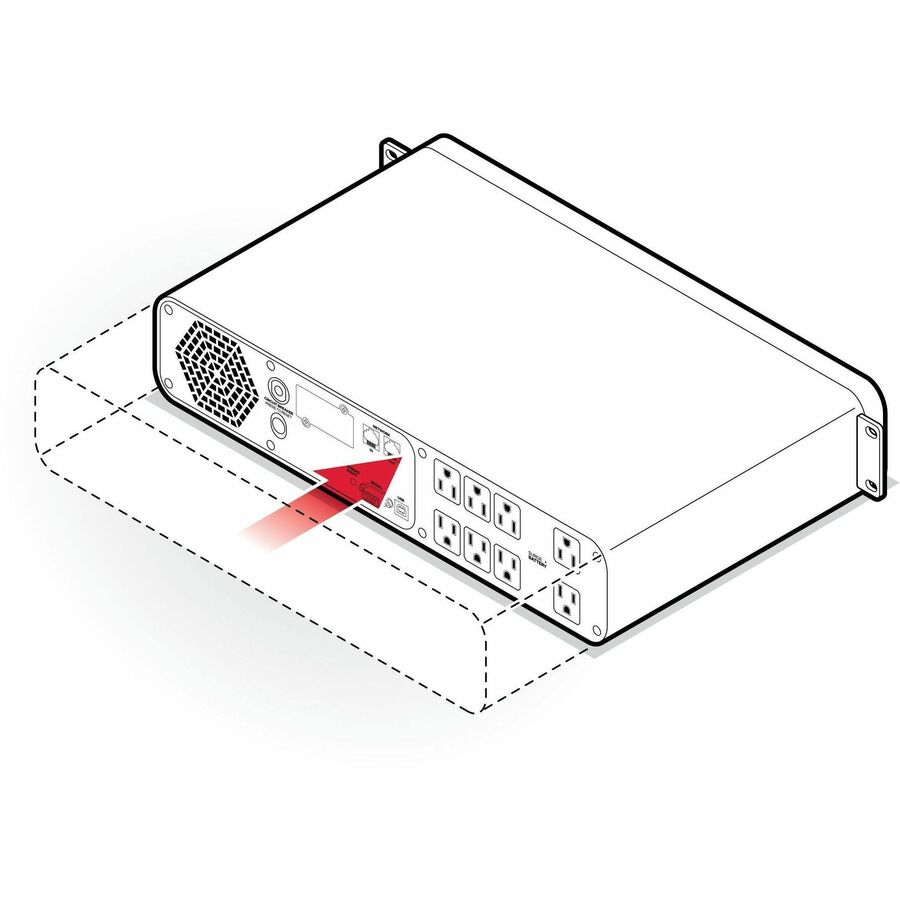

Network (RJ-45)	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

DC System Voltage	12 V DC
Number of Batteries	2
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	3.10 Minute
Backup/Run Time (Half Load)	10.20 Minute
Typical Battery Recharge Time	8 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 95%
Thermal Dissipation	7.71 W

Physical Characteristics

Color Family	Black
Product Color	Black

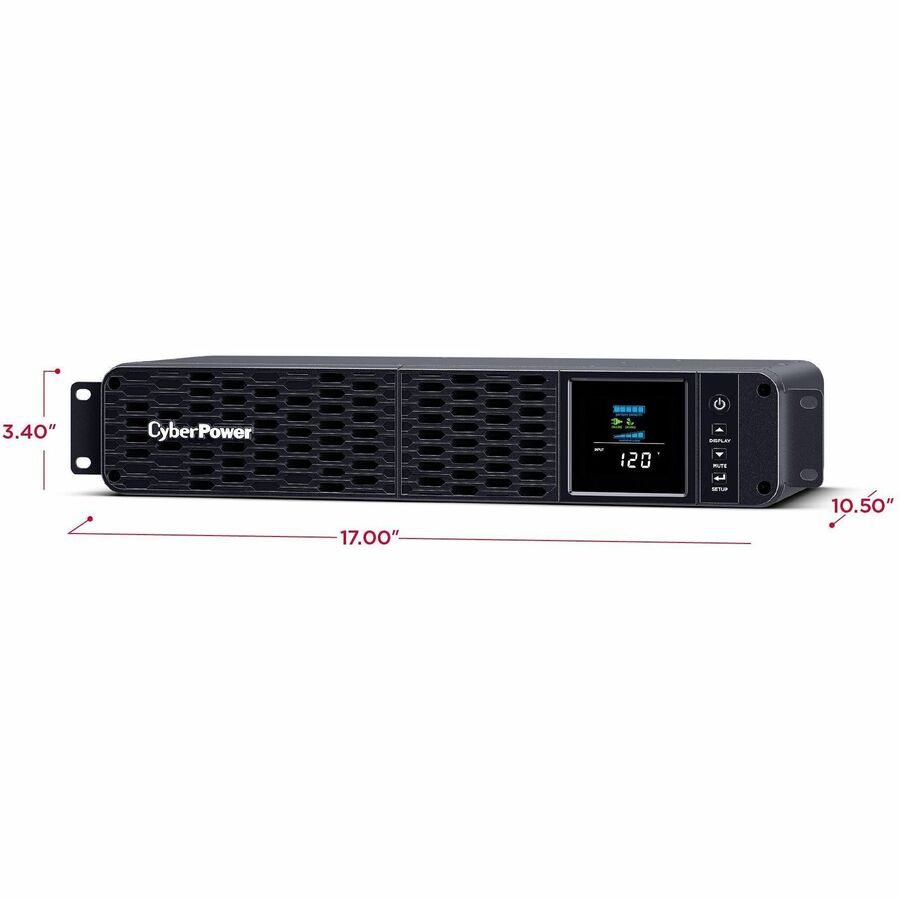

Height	3.40"
Width	17"

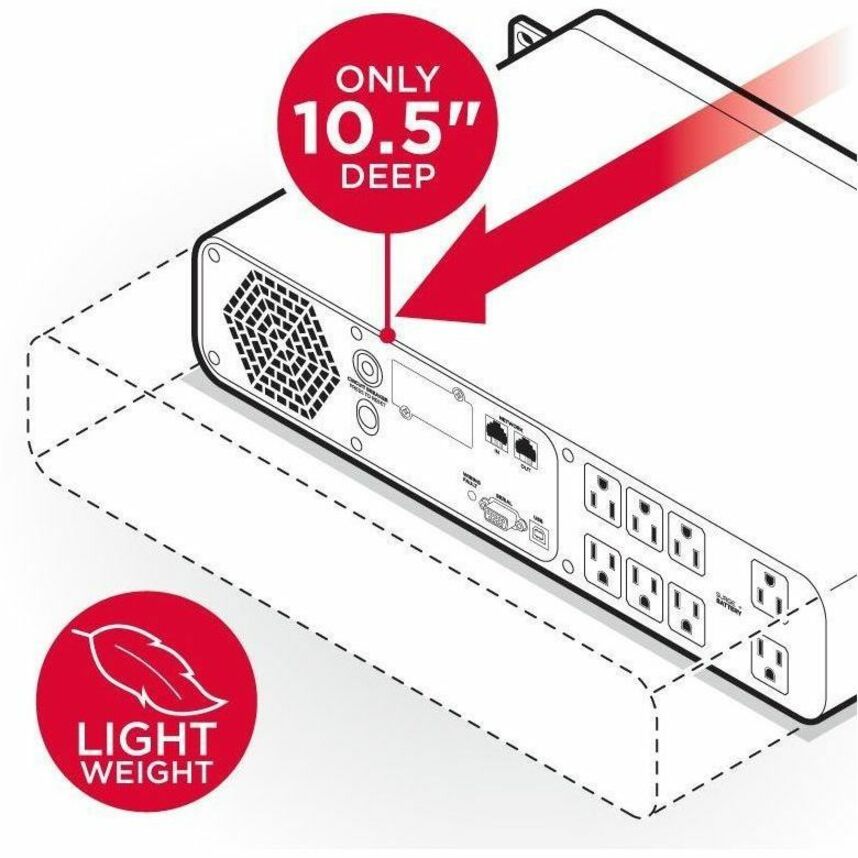

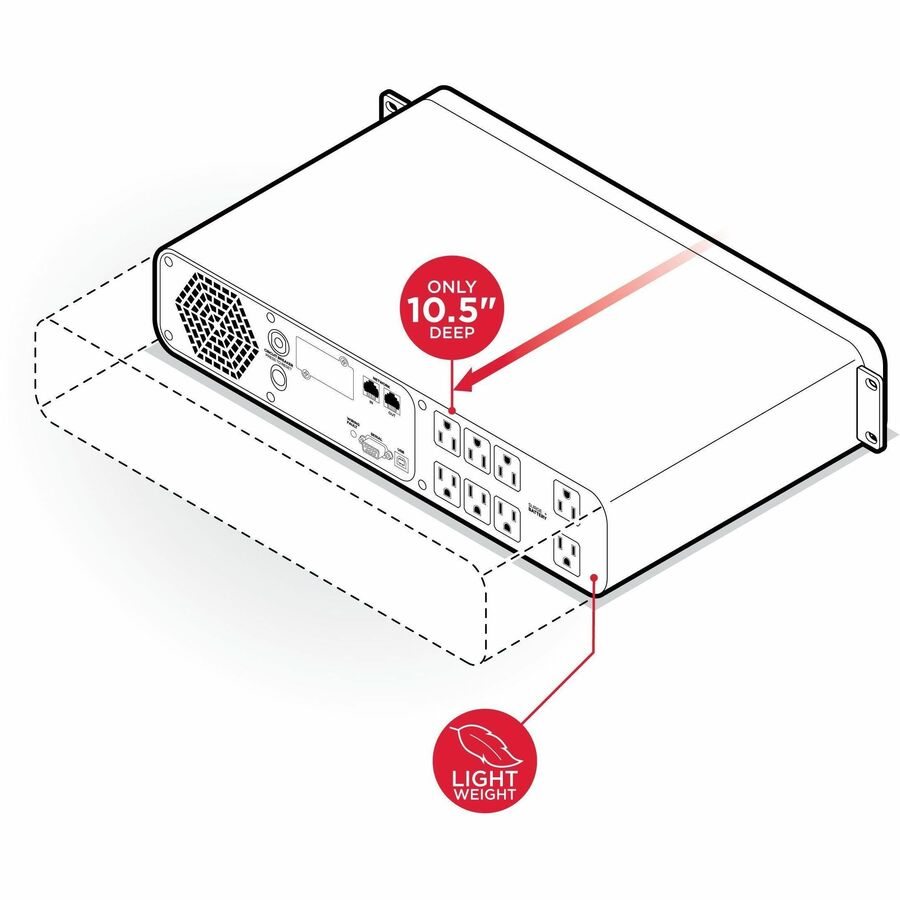

Depth	10.50"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	26.80 lb

Miscellaneous

Additional Information	Active PFC Compatible : Yes Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1290X2D Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 3.1 min Runtime at Half Load : 10.2 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.64 x 26.67 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 3.4 x 10.5 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 86 x 267 (mm) Weight (kg) : 12.16 Weight (lb) : 26.8 Shipping Dimensions - (WxHxD) (cm) : 37.34 x 16.26 x 52.32 (cm) Shipping - Dimensions (WxHxD, in) : 14.7 x 6.4 x 20.6 (in) Shipping - Dimensions (WxHxD, mm) : 373.38 x 162.56 x 523.24 (mm) Shipping - Weight (kg) : 13.43 Shipping - Weight (lb) : 29.6 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 88 VAC - 144 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlets - Widely Spaced : 2 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 0.7 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +11% VA : 1500 VA Watts : 1000 W EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Wiring Fault Management Cable : USB Cable Serial Port : 1 Dry Contact SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rackmount Material of Construction : Plastic Rack Height : 2U AC Mode Thermal Dissipation : 26.3 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 500000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778
Energy Star	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	500000 Lifetime
