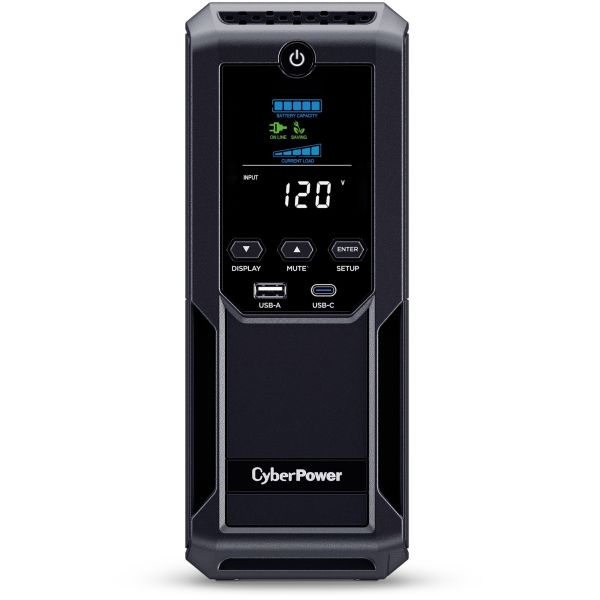

CyberPower Intelligent LCD UPS CP1500AVRLCD3 1500VA Mini-tower UPS

• A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a

• 500,000 Connected Equipment Guarantee.

• USB Type A
• USB Type C
• NEMA 5-15R

• 1 x USB Type A
• 1 x USB Type C
• 12 x NEMA 5-15R

• RJ-45
• RG-6

• Desktop Computer
• Workstation
• Network Device
• Home Entertainment System
• SOHO Network
• Computer Peripheral
• Home Theater
• Equipment
• Personal Electronic
• Home Network
• Router
• Modem
• VoIP Phone System

• 50 Hz
• 60 Hz

• Sine Wave
• Simulated Sine Wave

• Battery Mode
• Low Battery
• Overload
• Fault

LED Indicators:

• Power On
• Wiring Fault

• Energy Saving : GreenPower UPS™ Bypass Technology
• Energy Star Certified : Yes
• UPS Topology : Line Interactive
• Battery Quantity : 2
• Battery Size : 12 V / 9 Ah
• Battery Type : Sealed Lead-Acid Battery
• Replacement Battery Cartridge : RB1290X2E
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 3 min
• Runtime at Half Load : 12 min
• Typical Recharge Time : 8 Hours
• User Replaceable Battery : Yes
• Physical Dimensions - (WxHxD) (cm) : 10.01 x 25.91 x 35.0 (cm)

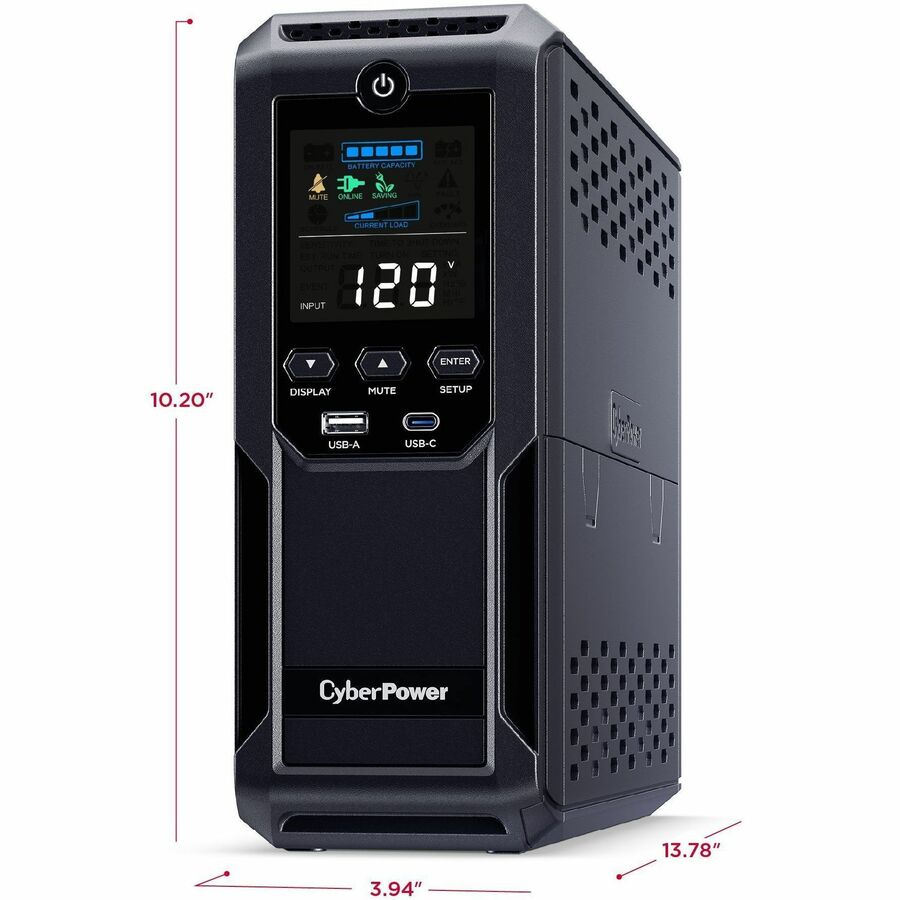

• Physical Dimensions - (WxHxD) (in) : 3.94 x 10.2 x 13.78 (in)
• Physical Dimensions - (WxHxD) (mm) : 100 x 259 x 350 (mm)
• Weight (kg) : 10.8
• Weight (lb) : 23.8
• Shipping Dimensions - (WxHxD) (cm) : 19.0 x 36.8 x 45.01 (cm)
• Shipping - Dimensions (WxHxD, in) : 7.48 x 14.49 x 17.72 (in)
• Shipping - Dimensions (WxHxD, mm) : 189.99 x 368.05 x 450.09 (mm)
• Shipping - Weight (kg) : 11.5
• Shipping - Weight (lb) : 25.35
• Circuit Breaker : 15 A
• Cord Length : 6 ft (1.8 m)
• Input Frequency Range : 57 Hz - 63 Hz
• Input Plug Type : NEMA 5-15P
• Nominal Input Voltage : 120 VAC
• Plug Style : Right Angle - 45° Offset
• Automatic Voltage Regulation : Single Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 60 Hz ± 1%
• On Battery Voltage : 120 VAC ± 5%
• On Battery Waveform : Simulated Sine Wave

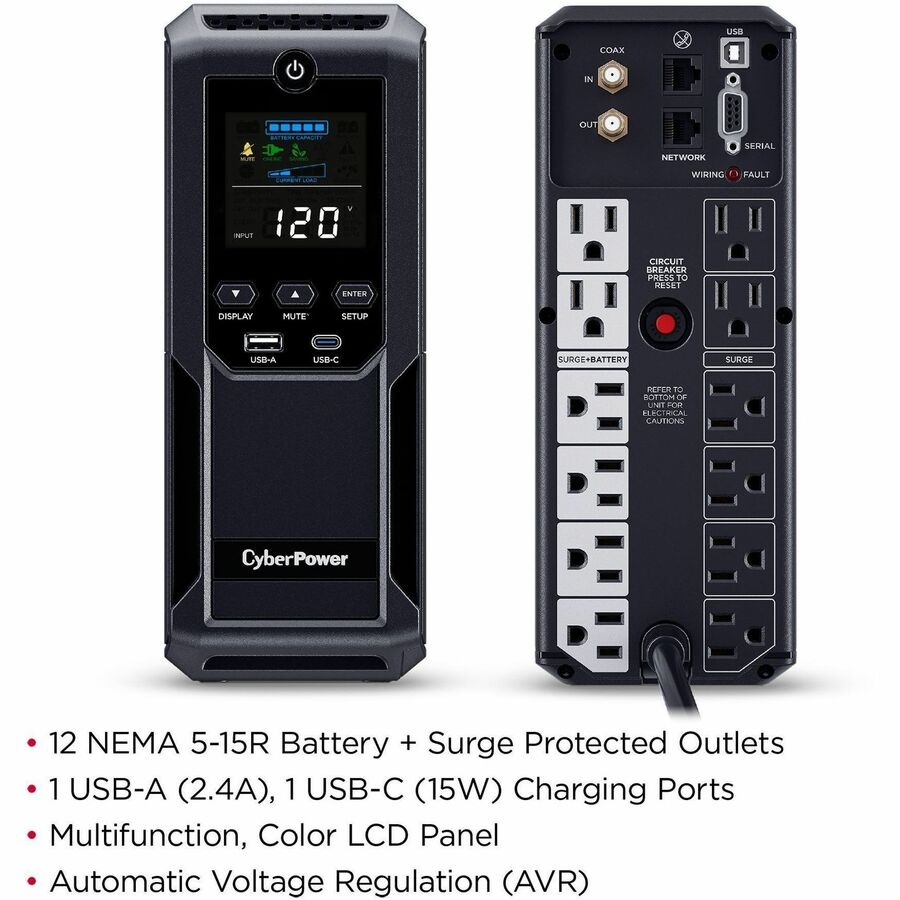

• Outlets - Battery & Surge Protected : 6
• Outlets - Surge-Only Protected : 6
• Outlets - Total : 12
• Outlet Type COMPUTED : 12 - NEMA 5-15R
• Output Power Factor : 0.6
• Overload Protection : Internal Circuitry Limiting
• Typical Transfer Time : 4 ms
• USB Charge Port Type COMPUTED : 1 Type A
• USB Charge Port Voltage COMPUTED : 5 VDC
• USB Charge Port Watts COMPUTED : 20 Watts
• VA : 1500 VA
• Watts : 900 W
• Coax Protection RG6 COMPUTED : 1 in
• EMI/RFI Filtration COMPUTED : Yes
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• Surge Suppression (Joules) : 1500 J
• Coax Protection RG6 COMPUTED : 1 in
• EMI/RFI Filtration COMPUTED : Yes
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• Surge Suppression (Joules) : 1500 J
• Audible Alarms : Battery Mode
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Color : Black
• Form Factor : Mini-Tower
• Material of Construction : Plastic
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Elevation : 0 - 50000 ft (0 - 15239 m)
• Storage Relative Humidity : 0 - 95% (non-condensing)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• CEG Amount :
• 500000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U2A
• Product Warranty : 3 Year Limited Warranty

• UL1778
• cUL 107 5th
• FCC DOC Class B

Three-year warranty (including coverage of batteries)

• 500000 Lifetime
