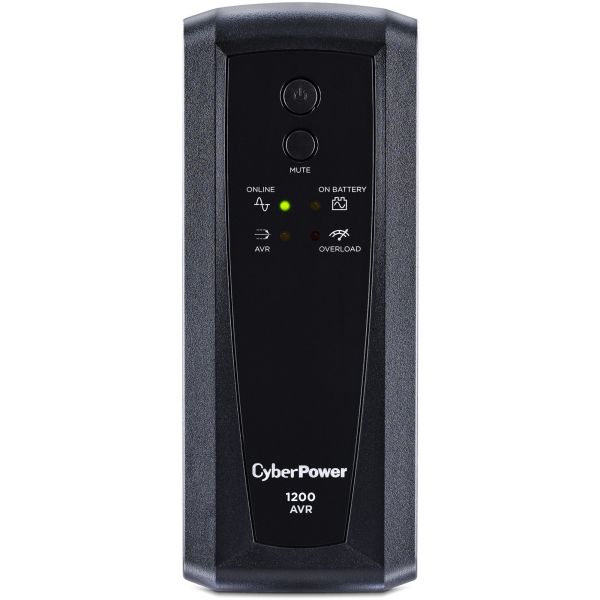

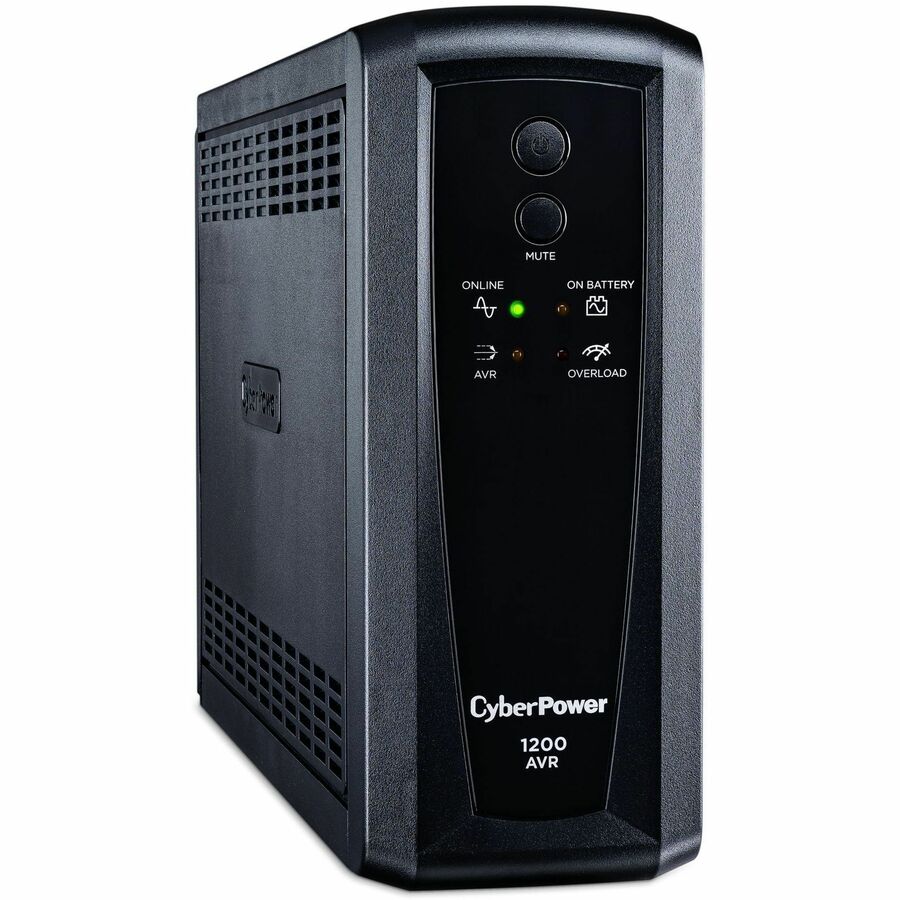

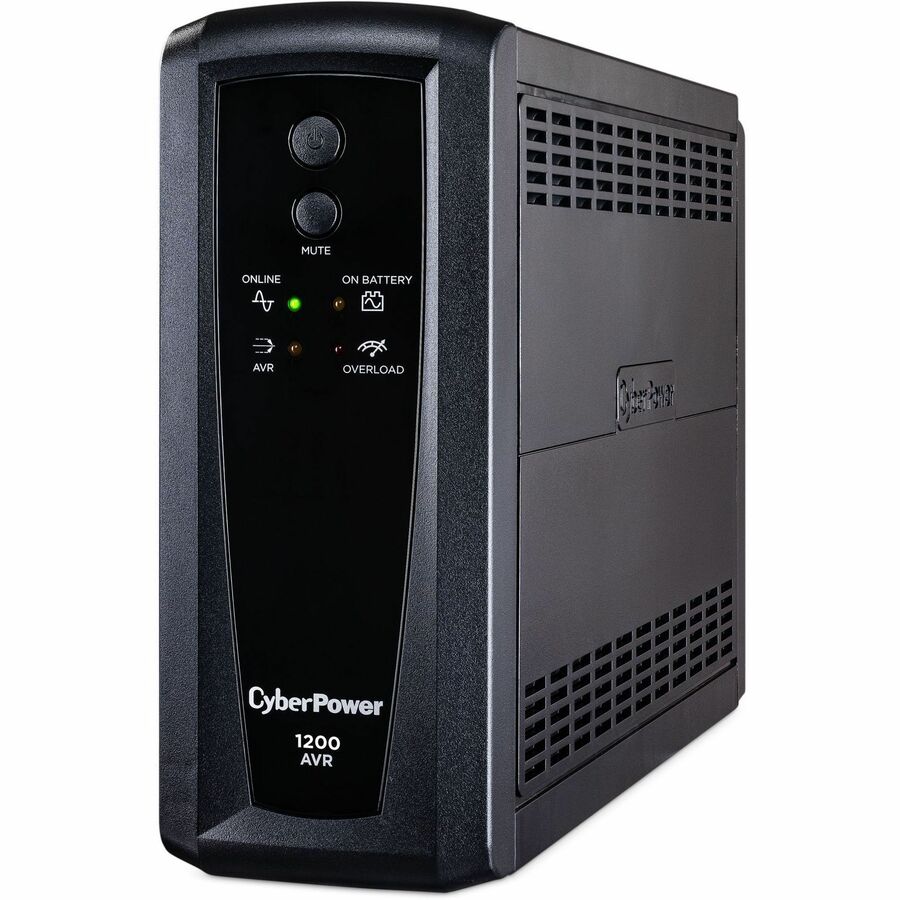

CyberPower CP1200AVR AVR UPS Systems

Name: CyberPower CP1200AVR AVR UPS Systems
Brand: CYBERPOWER
SKU: 9GM274
Price: 170.01 USD
Availability: InStock

CYBERPOWER

PCN#

9GM274

MFG#

CP1200AVR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$170.01

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1200VA/720W, 120 VAC, NEMA 5
15P, Mini
Tower, 10 Outlets, PowerPanel® Personal, $375000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsFCC Class B certifiedcULUL 1778Software IncludedPowerPanel PEEnergy StarYesCountry of OriginChinaEnvironmentally FriendlyYesWarranty

Shipping Weight: 23 lbs.

CyberPower CP1200AVR AVR UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP1200AVR
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	AVR UPS
Product Model	CP1200AVR
Product Name	CP1200AVR AVR UPS Systems
Marketing Information	A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1200AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1200AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1200AVR comes with a three-year warranty (including coverage of batteries) and a 375,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

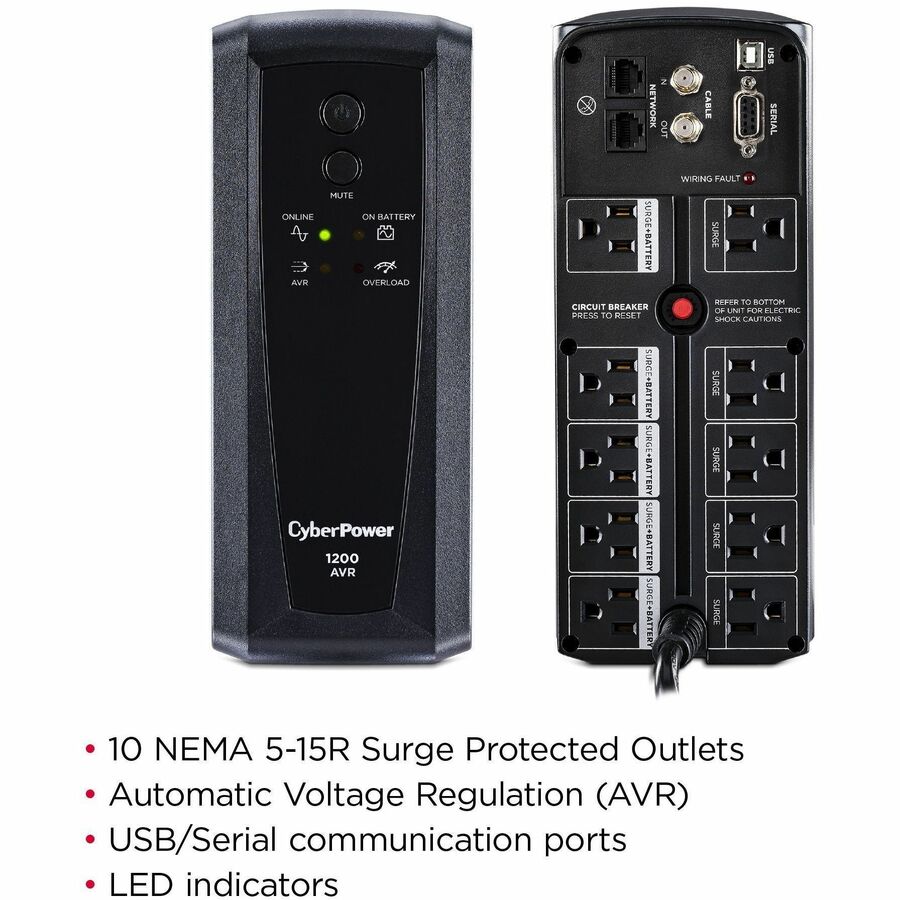

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

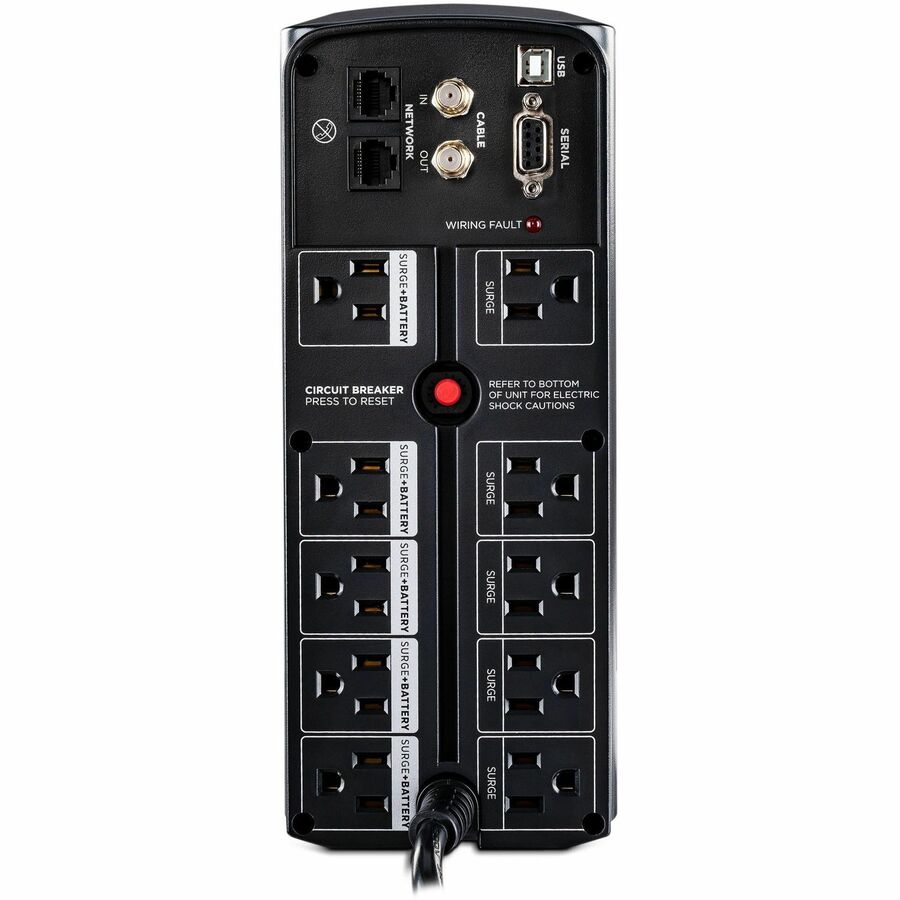

Receptacle Detail	8 x NEMA 5-15R
Dataline Protection	Coax RJ-45
Bypass Switch	Not Provided
Emergency Power OFF	No
Cord Length	6 ft
Transfer Time	4 ms

Power Description

Load Capacity (VA)	1200 VA
Load Capacity (Watt)	720 W
Input Voltage	120 V AC
Output Voltage	120 V AC
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1080 J
Circuit Breaker	Yes

Management

Alarm

Low Battery
On Battery
Overload

Controls/Indicators

Status Indicators

Power On
Wiring Fault

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

Number of Batteries	2
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	3 Minute
Backup/Run Time (Half Load)	12 Minute
Battery Life	6 Year
Typical Battery Recharge Time	8 Hour
Hot Swappable	Yes

Environmental Conditions

Maximum Operating Temperature

113°F (45°C)

Physical Characteristics

Color Family	Black
Product Color	Black

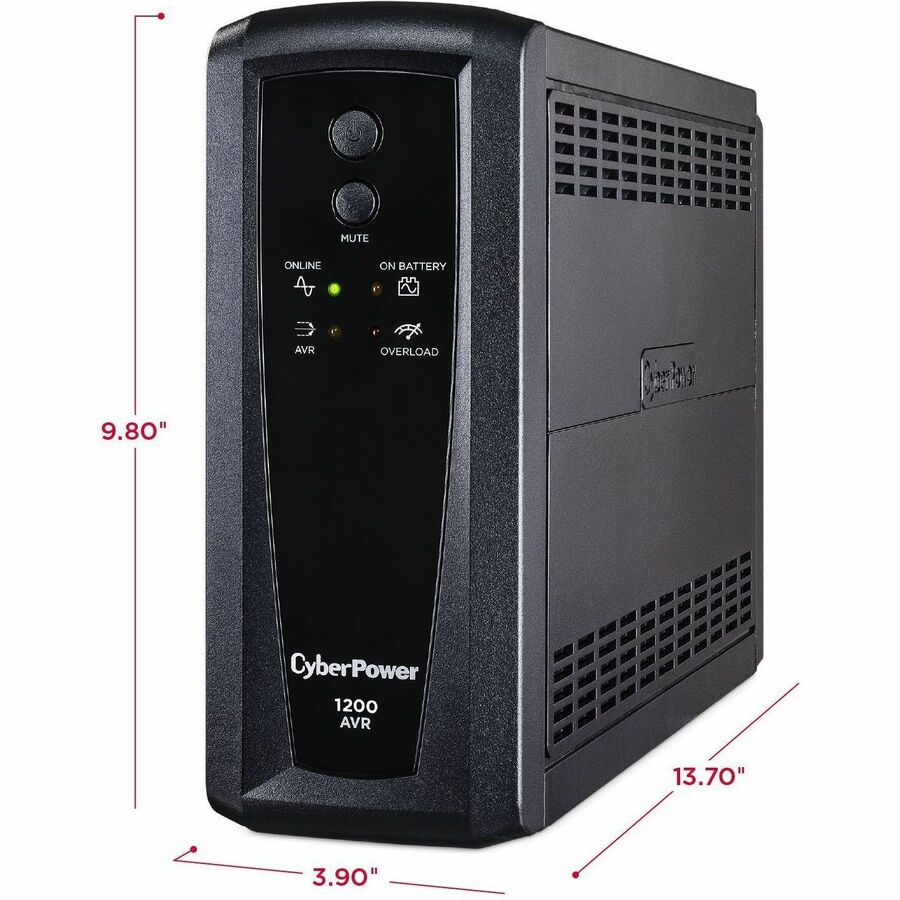

Height	9.75"
Width	4"
Depth	13.25"
Form Factor	Tower
Weight (Approximate)	24.30 lb

Miscellaneous

Package Contents	AVR CP1200AVR 1200VA UPS User Manual Power Management Software Warranty Card Coaxial Cable Phone Cable USB Cable
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1270X2C (for serial numbers that begin with "CT6" or "CDM") Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 3 min Runtime at Half Load : 12 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 34.8 x 24.89 x 9.91 (cm) Physical Dimensions - (WxHxD) (in) : 13.7 x 9.8 x 3.9 (in) Physical Dimensions - (WxHxD) (mm) : 348 x 249 x 99 (mm) Weight (kg) : 9.9 Weight (lb) : 21.83 Shipping Dimensions - (WxHxD) (cm) : 19.3 x 36.53 x 43.82 (cm) Shipping - Dimensions (WxHxD, in) : 7.6 x 14.38 x 17.25 (in) Shipping - Dimensions (WxHxD, mm) : 193.04 x 365.25 x 438.15 (mm) Shipping - Weight (kg) : 6.46 Shipping - Weight (lb) : 14.25 Adjustable Voltage Range : 135 - 144 VAC Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 88 VAC - 144 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 5 Outlets - Surge-Only Protected : 5 Outlets - Total : 10 Outlets - Widely Spaced : 2 Outlet Type COMPUTED : 10 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 8 ms USB Charge Port : No VA : 1200 VA Watts : 720 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Dry Contact Software (Free Download) : PowerPanel® Personal Color : Black Form Factor : Mini-Tower Material of Construction : Plastic Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 375000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	FCC Class B certified cUL UL 1778
Software Included	PowerPanel PE
Energy Star	Yes
Country of Origin	China
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year
Additional Warranty Information	CyberPower stands behind its products by offering an industry leading 3-year warranty CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge Connected Equipment Guarantee of 375,000
