CYBERPOWER CP1000PFCRM1U UPS 6 NEMA 5-15R NEMA 5-15P 3 YR WTY

Name: CYBERPOWER CP1000PFCRM1U UPS 6 NEMA 5-15R NEMA 5-15P 3 YR WTY
Brand: CYBERPOWER
SKU: NM1682
Price: 539.95 USD
Availability: InStock

CYBERPOWER

PCN#

NM1682

MFG#

CP1000PFCRM1U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$539.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1000VA/600W, 120 VAC, NEMA 5
15P, 1U, Rackmount, Sine Wave, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year warranty (including coverage of batteries)Directly Connected Equipment Guarantee300000 Lifetime

Shipping Weight: 34 lbs.

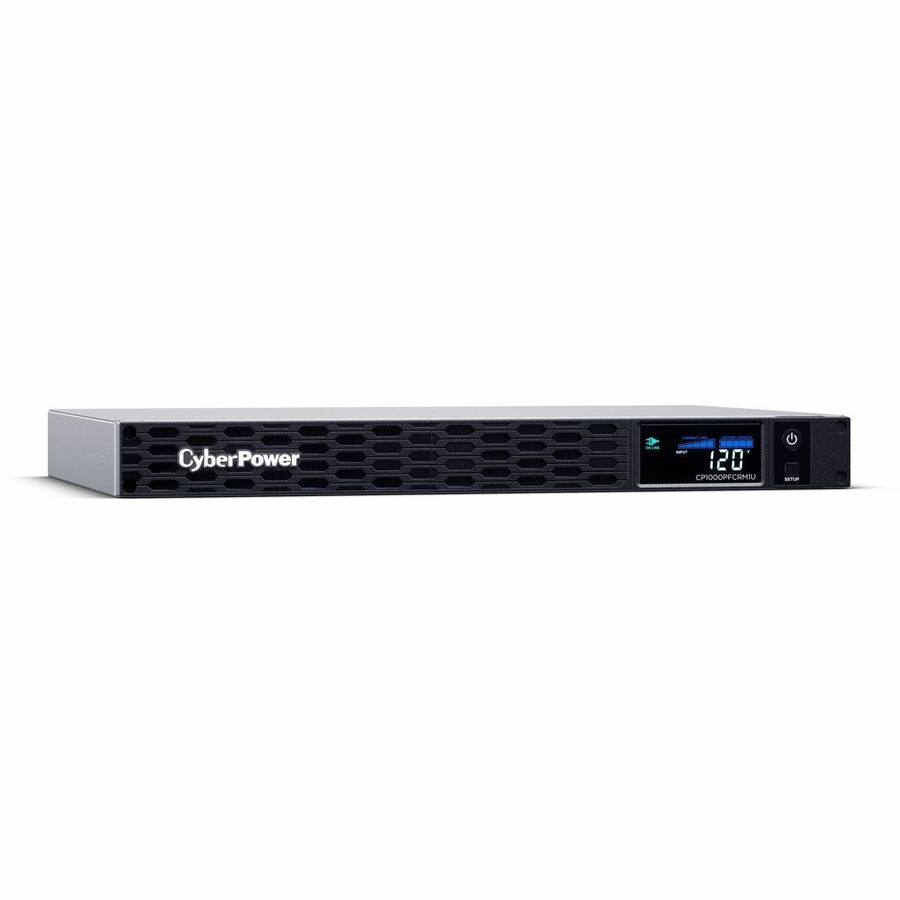

CyberPower CP1000PFCRM1U PFC Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP1000PFCRM1U
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Line	PFC Sinewave
Product Model	CP1000PFCRM1U
Product Name	PFC Sinewave CP1000PFCRM1U 1000VA Rack-mountable UPS
Marketing Information	The CP1000PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility. The CP1000PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. The CP1000PFCRM1U comes with a three-year warranty (including coverage of batteries) and a 300,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R
Number of Battery & Surge Outlets	4
Number of Surge-only Outlets	2
Dataline Protection	RJ-45
Overload Protection	Yes
Cord Length	10 ft
Transfer Time	8 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS Bypass Technology
Application/Usage	Security System Audio/Video Equipment Workstation Corporate Server Network Device Telecommunication
Surge Suppression	Yes
Features	Audible Alarm

Power Description

Load Capacity (VA)	1000 VA
Load Capacity (Watt)	600 W
Input Voltage	120 V AC
Input Voltage Range	88 V AC - 144 V AC 97 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	57 Hz 63 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	1150 J
Circuit Breaker	Yes
Output Power Factor	0.6

Display & Graphics

Display

LCD

Management

Network Management	Dry Contact SNMP/HTTP Remote Monitoring
Alarm	Battery Mode Low Battery Overload Fault

Controls/Indicators

Status Indicators

LED Indicators:

Power On
Wiring Fault

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	4
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	6V
Battery Capacity	7000 mAh
Typical Battery Recharge Time	8 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 95%
Storage Relative Humidity	0% - 95%

Physical Characteristics

Color Family	Black
Product Color	Black
Height	1.7"
Width	17"
Depth	15.3"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	30.20 lb

Miscellaneous

Certifications & Standards	UL1778 CSA C22.2 No. 107.3 FCC Class B DOE
Energy Star	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year warranty (including coverage of batteries)
Directly Connected Equipment Guarantee	300000 Lifetime
