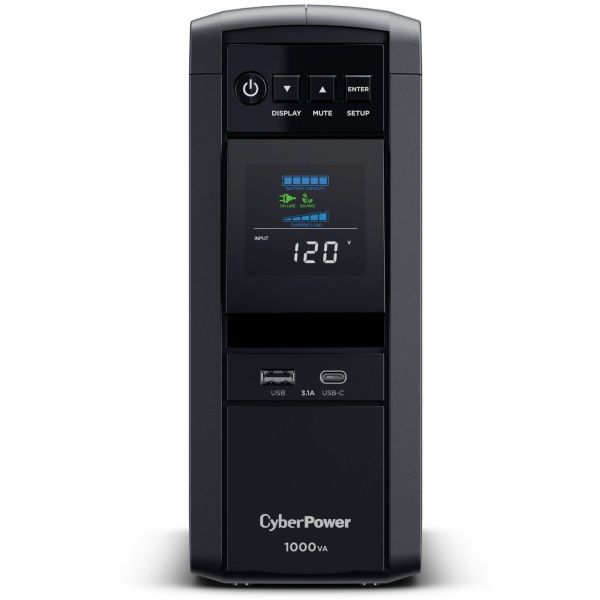

CyberPower CP1000PFCLCD PFC Sinewave UPS Systems

Name: CyberPower CP1000PFCLCD PFC Sinewave UPS Systems
Brand: CYBERPOWER
SKU: 9GM044
Price: 179.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM044

MFG#

CP1000PFCLCD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$179.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1000VA/600W, 120 VAC, NEMA 5
15P, Mini
Tower, Sine Wave, 10 Outlets, LCD, PowerPanel® Personal, $350000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778cUL 107.3FCC DOC Class BSoftware IncludedPowerPanel Personal Edition SoftwareEnergy StarYesEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 17 lbs.

CyberPower CP1000PFCLCD PFC Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP1000PFCLCD
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	PFC Sinewave UPS
Product Model	CP1000PFCLCD
Product Name	CP1000PFCLCD PFC Sinewave UPS Systems
Marketing Information	A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1000PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility. The CP1000PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure. The CP1000PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000PFCLCD comes with a three-year warranty (including coverage of batteries) and a 350,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	USB Type A NEMA 5-15R USB Type C

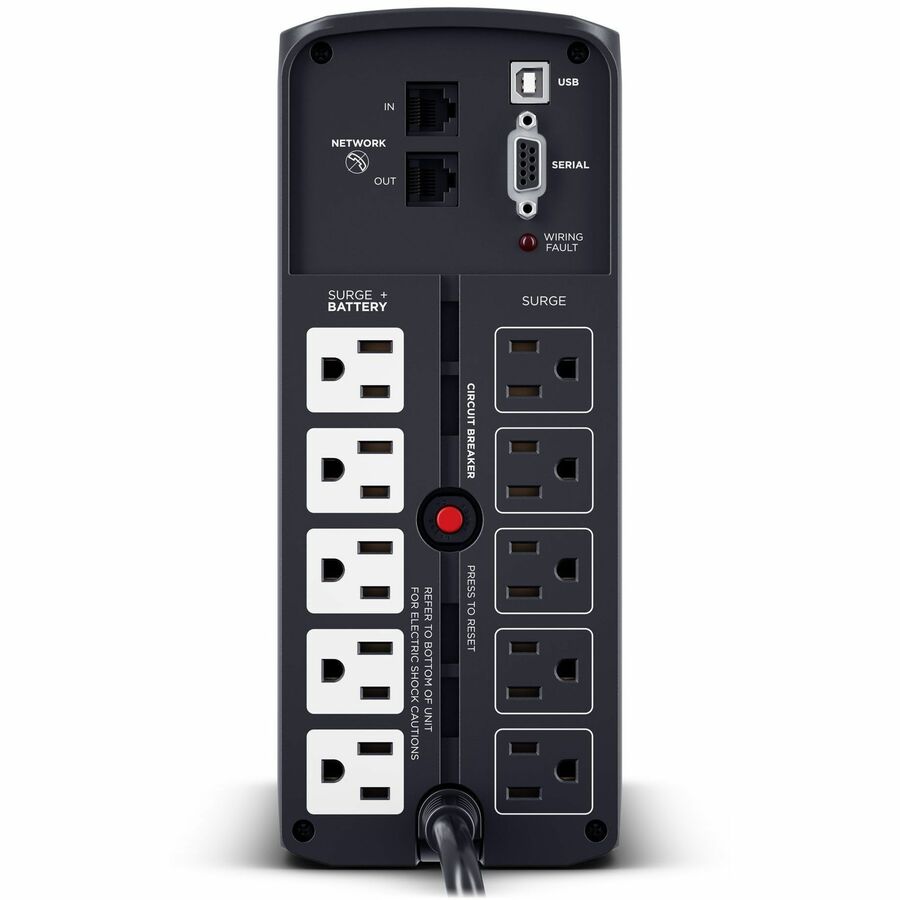

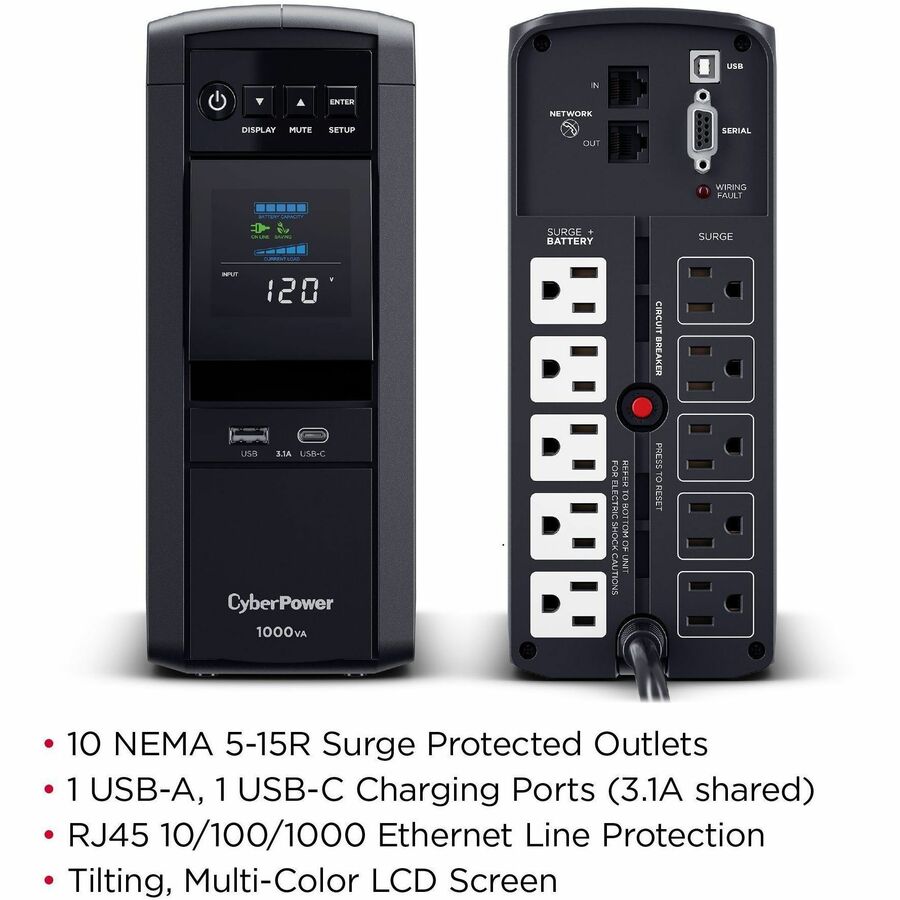

Receptacle Detail	10 x NEMA 5-15R 1 x USB Type A 1 x USB Type C
Number of Battery & Surge Outlets	5
Number of Surge-only Outlets	5
Dataline Protection	RJ-45
Overload Protection	Yes
Cord Length	5 ft
Transfer Time	4 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS Bypass Technology
Application/Usage	Desktop Computer Workstation Home Theater Electronic Equipment Home Network Router Modem VoIP Phone System
Surge Suppression	Yes
Features	Audible Alarm

Power Description

Load Capacity (VA)	1000 VA
Load Capacity (Watt)	600 W
Input Voltage	120 V AC
Input Voltage Range	88 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	57 Hz 63 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	1150 J
Circuit Breaker	Yes
Output Power Factor	0.6

Display & Graphics

Display

LCD

Management

Network Management	Relay-MS Card Dry Contact
Alarm	Battery Mode

Controls/Indicators

Status Indicators

Power On
Wiring Fault

Interfaces/Ports

Serial Port	Yes
USB	Yes
EPO Port	No
USB (HID Compliant) Port	Yes
Number of USB Ports	2

Battery Information

Number of Batteries	1
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	2 Minute
Backup/Run Time (Half Load)	6 Minute
Typical Battery Recharge Time	8 Hour
Hot Swappable	No
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Operating Humidity	0% - 95%

Physical Characteristics

Color Family	Black
Product Color	Black

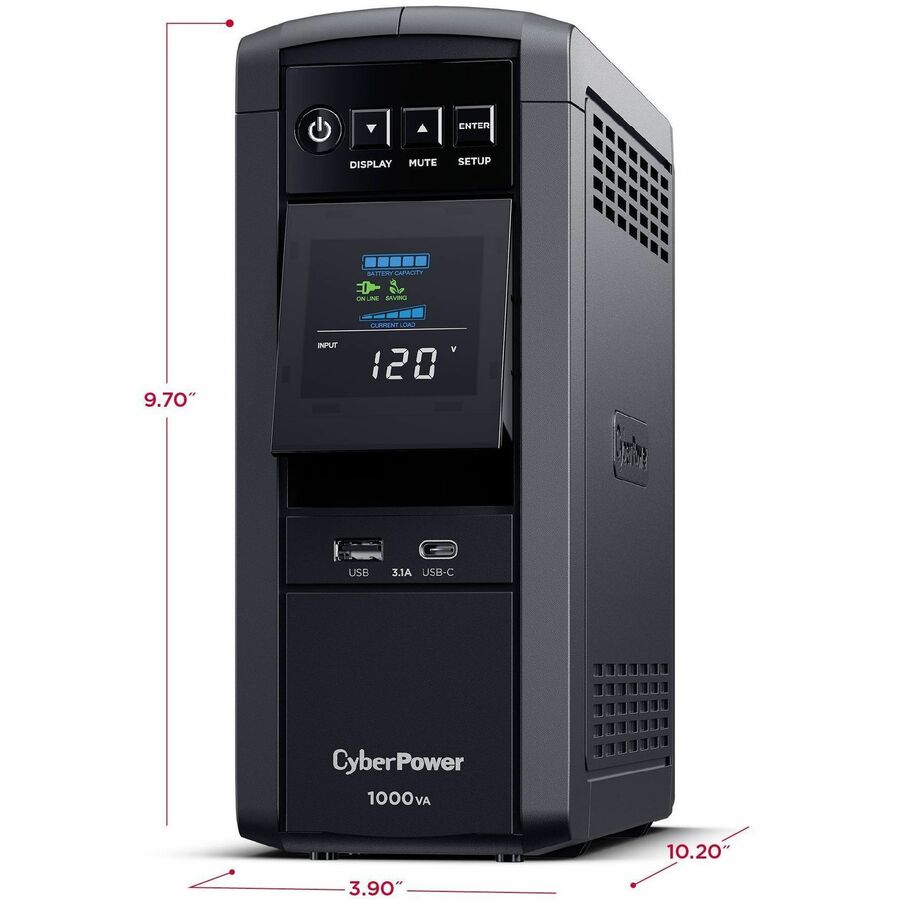

Height	9.70"
Width	3.94"
Depth	10.24"
Form Factor	Mini-tower
Weight (Approximate)	15.39 lb

Miscellaneous

Package Contents	PFC Sinewave CP1000PFCLCD 1000VA Mini-Tower UPS User Manual Telephone Cable PowerPanel Personal Edition Software CD Coaxial Cable USB A+B Type Cable Warranty Registration Card Function Setup Guide
Additional Information	Active PFC Compatible : Yes Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 1 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : No Replacement Battery Cartridge : RB1290 Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 2 min Runtime at Half Load : 6 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 10.01 x 24.64 x 26.01 (cm) Physical Dimensions - (WxHxD) (in) : 3.94 x 9.7 x 10.24 (in) Physical Dimensions - (WxHxD) (mm) : 100 x 246 x 260 (mm) Weight (kg) : 6.98 Weight (lb) : 15.39 Shipping Dimensions - (WxHxD) (cm) : 16.99 x 32.99 x 34.01 (cm) Shipping - Dimensions (WxHxD, in) : 6.69 x 12.99 x 13.39 (in) Shipping - Dimensions (WxHxD, mm) : 169.93 x 329.95 x 340.11 (mm) Shipping - Weight (kg) : 7.5 Shipping - Weight (lb) : 16.53 Circuit Breaker : 15 A Cord Length : 5 ft (1.5 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 88 VAC - 144 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 5 Outlets - Surge-Only Protected : 5 Outlets - Total : 10 Outlet Type COMPUTED : 10 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +11.5% USB Charge Port : Yes USB Charge Port Amperage : 3.1 Amps (Shared) USB Charge Port Quantity : 2 USB Charge Port Standard : Type A USB Charge Port Type COMPUTED : 1 Type A USB Charge Port Voltage COMPUTED : 5 VDC VA : 1000 VA Watts : 600 W EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible Surge Suppression (Joules) : 1150 J EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible Surge Suppression (Joules) : 1150 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : No HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Dry Contact Software (Free Download) : PowerPanel® Personal Color : Black Form Factor : Mini-Tower Material of Construction : Plastic Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 350000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U1B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 cUL 107.3 FCC DOC Class B
Software Included	PowerPanel Personal Edition Software
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year warranty (including coverage of batteries)
Directly Connected Equipment Guarantee	350000 Lifetime
