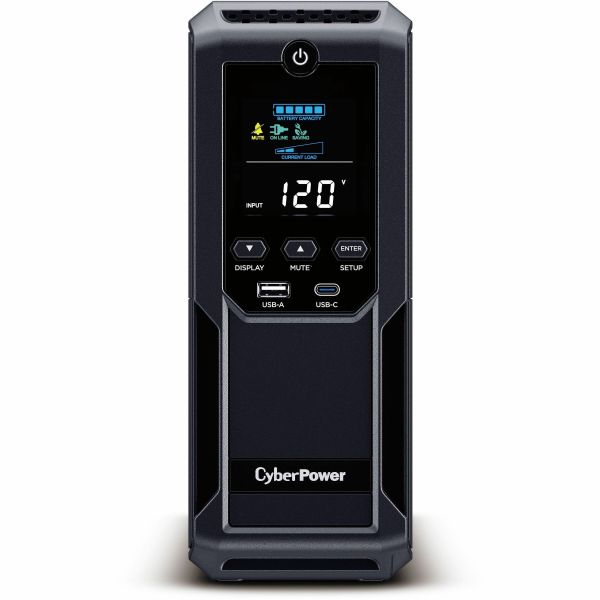

CyberPower Intelligent LCD BRG1500AVRLD2 1500VA Mini-tower UPS

Name: CyberPower Intelligent LCD BRG1500AVRLD2 1500VA Mini-tower UPS
Brand: CYBERPOWER
SKU: 08HQ70
Price: 289.95 USD
Availability: InStock

CYBERPOWER

PCN#

08HQ70

MFG#

BRG1500AVRLCD2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$289.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1500VA/900W, 57
120 VAC, NEMA 5
15P, Mini
Tower, 12 Outlets, LCD, $500000 CEG, 5YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyEnergy StarYesEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 27 lbs.

CyberPower BRG1500AVRLCD2 Intelligent LCD UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BRG1500AVRLCD2
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Line	Intelligent LCD
Product Model	BRG1500AVRLD2
Product Name	BRG1500AVRLCD2 Intelligent LCD UPS Systems
Marketing Information	A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1500AVRLD2 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The BRG1500AVRLD2 comes with a five year warranty (including coverage of batteries) and a 500,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
AVR Range	Boost +10% / Buck --10%
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

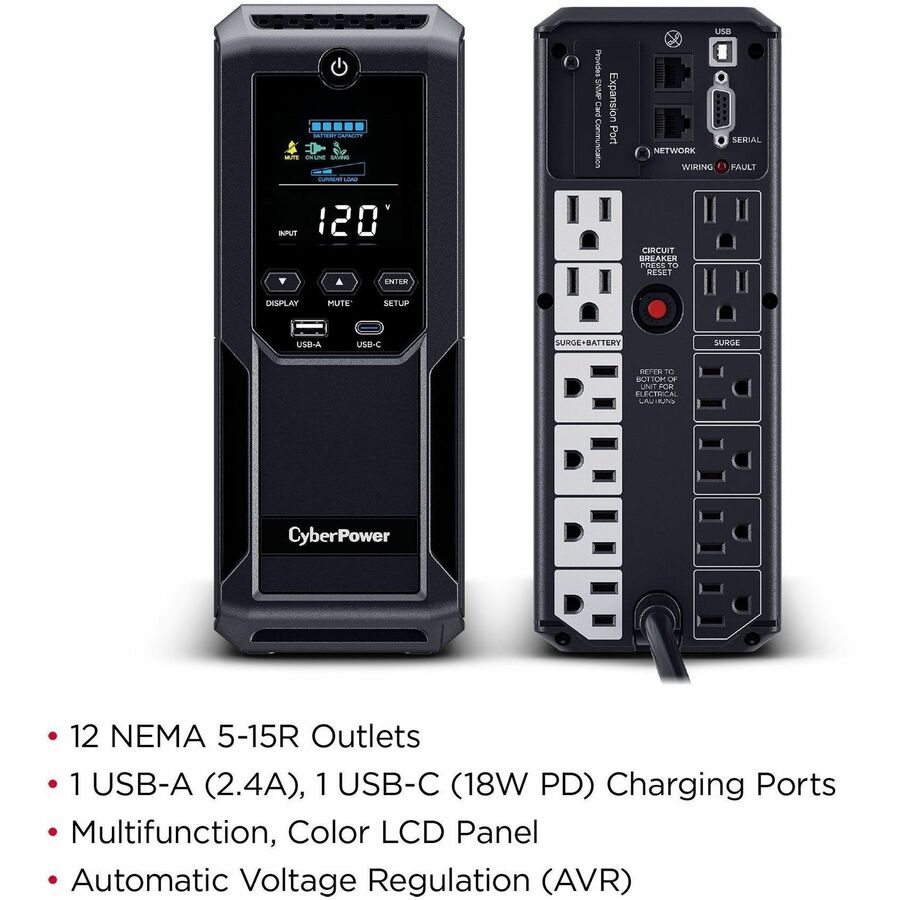

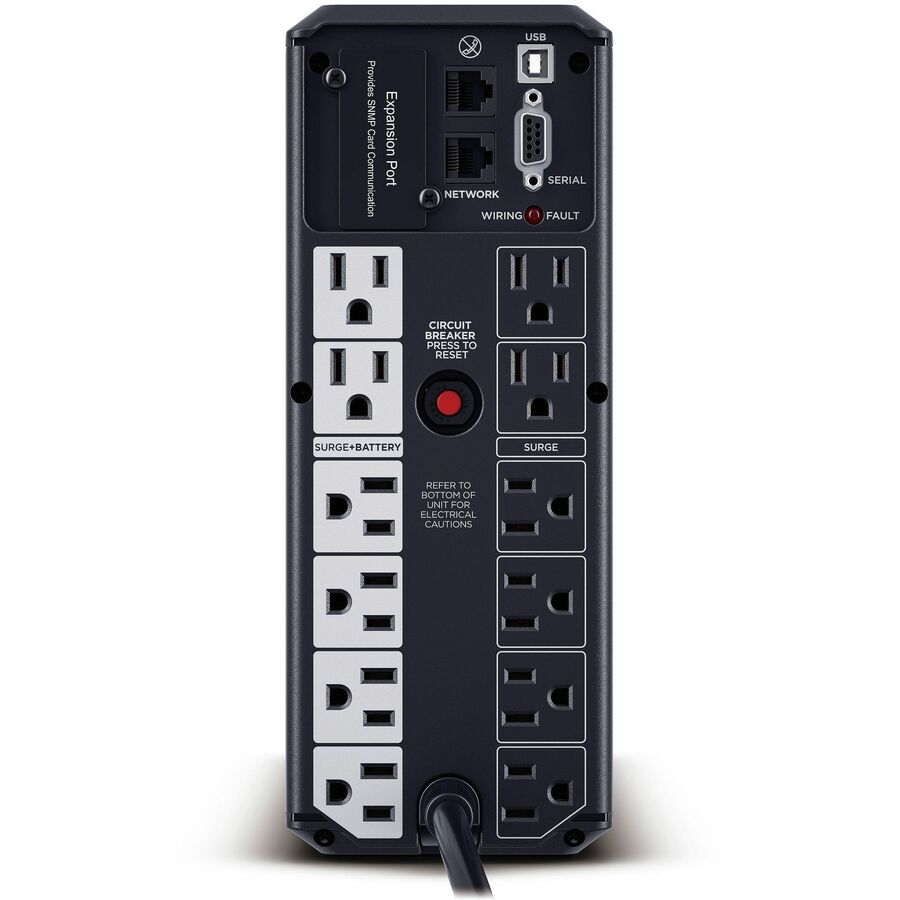

Receptacle Detail	12 x NEMA 5-15R
Number of Battery & Surge Outlets	6
Number of Surge-only Outlets	6
Dataline Protection	RJ-45
Overload Protection	Yes
Transfer Time	4 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS Bypass Technology
Application/Usage	Desktop Computer Workstation Network Device Home Entertainment System Personal Electronic Home Network Router Modem VoIP Phone System

Power Description

Load Capacity (VA)	1500 VA
Load Capacity (Watt)	900 W
Input Voltage	120 V AC
Output Voltage	120 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1500 J

Management

Network Management	SNMP/HTTP Remote Monitoring
Alarm	Battery Mode Low Battery Overload Fault

Controls/Indicators

Status Indicators

LED Indicators:

Power On
Wiring Fault

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	2
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	2 Minute
Backup/Run Time (Half Load)	12 Minute
Typical Battery Recharge Time	8 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 95%
Storage Relative Humidity	0% - 95%

Physical Characteristics

Color Family	Black
Product Color	Black

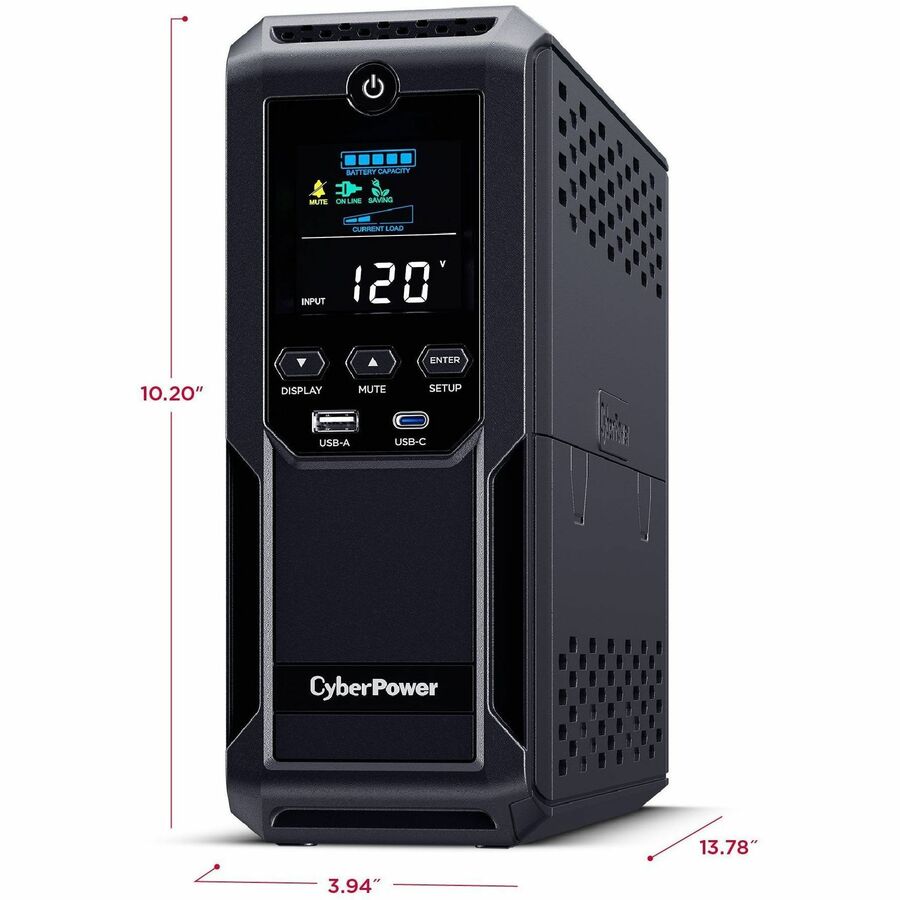

Height	10.20"
Width	3.94"
Depth	13.78"
Form Factor	Mini-tower
Weight (Approximate)	23.81 lb

Miscellaneous

Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Replacement Battery Cartridge : RB1290X2E Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 2 min Runtime at Half Load : 12 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 10.01 x 25.91 x 35.0 (cm) Physical Dimensions - (WxHxD) (in) : 3.94 x 10.2 x 13.78 (in) Physical Dimensions - (WxHxD) (mm) : 100 x 259 x 350 (mm) Weight (kg) : 10.8 Weight (lb) : 23.8 Shipping Dimensions - (WxHxD) (cm) : 19.0 x 36.8 x 45.01 (cm) Shipping - Dimensions (WxHxD, in) : 7.48 x 14.49 x 17.72 (in) Shipping - Dimensions (WxHxD, mm) : 189.99 x 368.05 x 450.09 (mm) Shipping - Weight (kg) : 11.5 Shipping - Weight (lb) : 25.35 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Nominal Input Voltage : 57 - 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 6 Outlets - Surge-Only Protected : 6 Outlets - Total : 12 Outlet Type COMPUTED : 12 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port Type COMPUTED : 1 Type A USB Charge Port Voltage COMPUTED : 5 VDC USB Charge Port Watts COMPUTED : 20 Watts VA : 1500 VA Watts : 900 W EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Color : Black Form Factor : Mini-Tower Material of Construction : Plastic Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 500000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 5 Year Limited Warranty
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
