CyberPower UPS Systems BP72V60ART2U Extended Battery Modules

Name: CyberPower UPS Systems BP72V60ART2U Extended Battery Modules
Brand: CYBERPOWER
SKU: 9GM040
Price: 1171.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM040

MFG#

BP72V60ART2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,171.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

72 VDC / 60 A
12 V / 9 Ah Sealed Lead
Acid Battery, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCompatibilityCyberPower UPS: OL2200RXL2U OL2200RTXL2UN OL3000RTXL2U OL3000RTXL2UN OL3000RTXL2UHV OL3000RTXL2UHVN Certifications & StandardsUL1778Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 99 lbs.

CyberPower UPS Systems BP72V60ART2U Extended Battery Modules

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BP72V60ART2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Extended Battery Modules
Product Model	BP72V60ART2U
Product Name	BP72V60ART2U Extended Battery Modules
Marketing Information	The CyberPower BP72V60ART2U rack/tower convertible Extended Battery Module (EBM) for Smart App Online UPS systems OL2200RTXL2U, O22000RTXL2UN, OL3000RTXL2U, OL3000RTXL2UN and OL3000RTXL2UHVN extends battery runtimes during power outages. This EBM takes 2U of rack space and can be installed as a tower to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.
Product Type	Battery Unit

Technical Information

Battery Characteristics	User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Maximum Battery Recharge Time	4 Hour
Battery Capacity	9000 mAh
Output Voltage	72 V DC

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Tower/Rack Mountable
Rack Height	2U

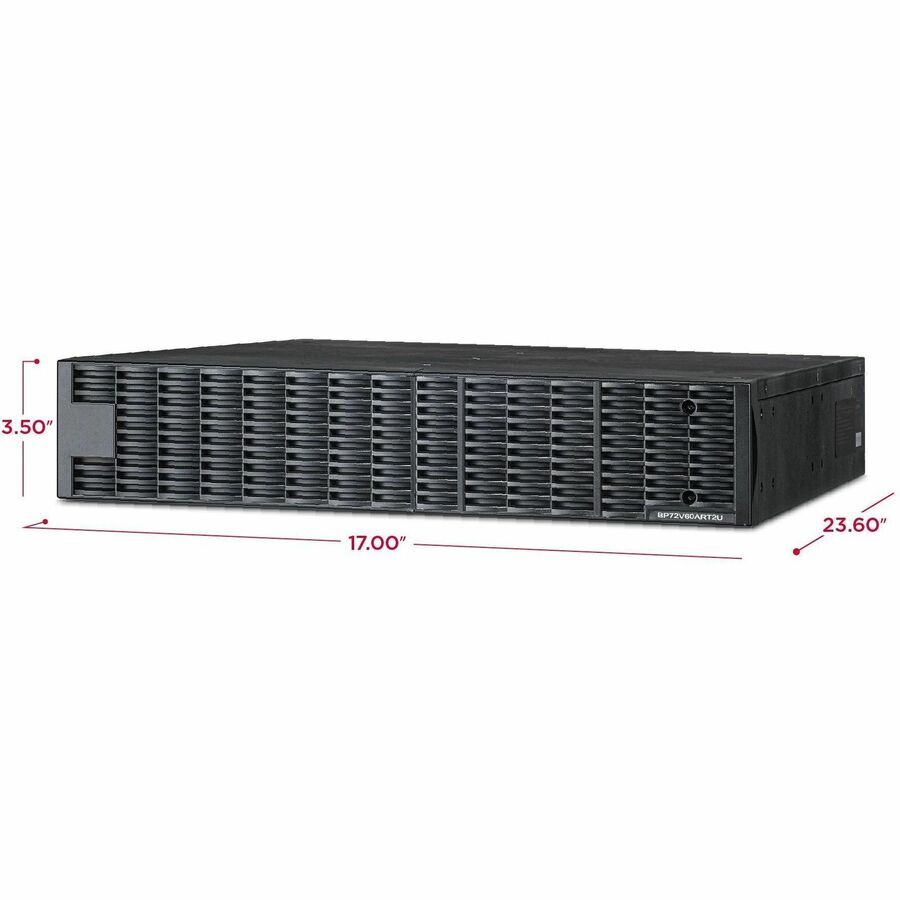

Height	3.5"
Width	17"
Depth	23.6"
Weight (Approximate)	96.80 lb

Miscellaneous

Package Contents	Smart App Online BP72V60ART2U 2200 and 3000VA UPS External Battery Module Mounting Hardware
Additional Information	Amperage : 60 A DC Voltage : 72 VDC Battery Quantity : 12 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Expansion Ready (Daisy-Chain) : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1290X6B Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 4 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 59.94 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 23.6 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 599 (mm) Weight (kg) : 43.91 Weight (lb) : 96.8 Shipping Dimensions - (WxHxD) (cm) : 57.15 x 24.13 x 87.96 (cm) Shipping - Dimensions (WxHxD, in) : 22.5 x 9.5 x 34.63 (in) Shipping - Dimensions (WxHxD, mm) : 571.5 x 241.3 x 879.6 (mm) Shipping - Weight (kg) : 53.21 Shipping - Weight (lb) : 117.3 Circuit Breaker : 60 A Nominal Input Voltage : 72 VAC USB Charge Port : No Color : Black Material of Construction : Metal Mounting Hardware : Yes Rack Height : 2U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Models : OL2200RXL2U, OL2200RTXL2UN, OL3000RTXL2U, OL3000RTXL2UN, OL3000RTXL2UHV, OL3000RTXL2UHVN UPS Models : OL2200RXL2U Environmental : RoHS Compliant Safety : UL1778 Extended Warranty Option : WEXT5YR-BP2 Product Warranty : 3 Year Limited Warranty
Compatibility	CyberPower UPS: OL2200RXL2U OL2200RTXL2UN OL3000RTXL2U OL3000RTXL2UN OL3000RTXL2UHV OL3000RTXL2UHVN
Certifications & Standards	UL1778
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
