CyberPower UPS Systems BP48VP2U03 Extended Battery Modules

Name: CyberPower UPS Systems BP48VP2U03 Extended Battery Modules
Brand: CYBERPOWER
SKU: 9GM085
Price: 1264.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM085

MFG#

BP48VP2U03

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,264.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

48 VDC / 70 A
12 V / 5.7 Ah Sealed Lead
Acid Battery, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCompatibilityCyberPower UPS:PR2200RTXL2UANPR3000RTXL2UANPR2200RTXL2UHVANPR3000RTXL2UHVANPR2200RTXL2UACNPR3000RTXL2UACNCertifications & Standards CE RCM UL1778 cUL FCC Class B VCCI Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 100 lbs.

CyberPower BP48VP2U03 Extended Battery Modules

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BP48VP2U03
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Extended Battery Modules
Product Model	BP48VP2U03
Product Name	BP48VP2U03 Extended Battery Modules

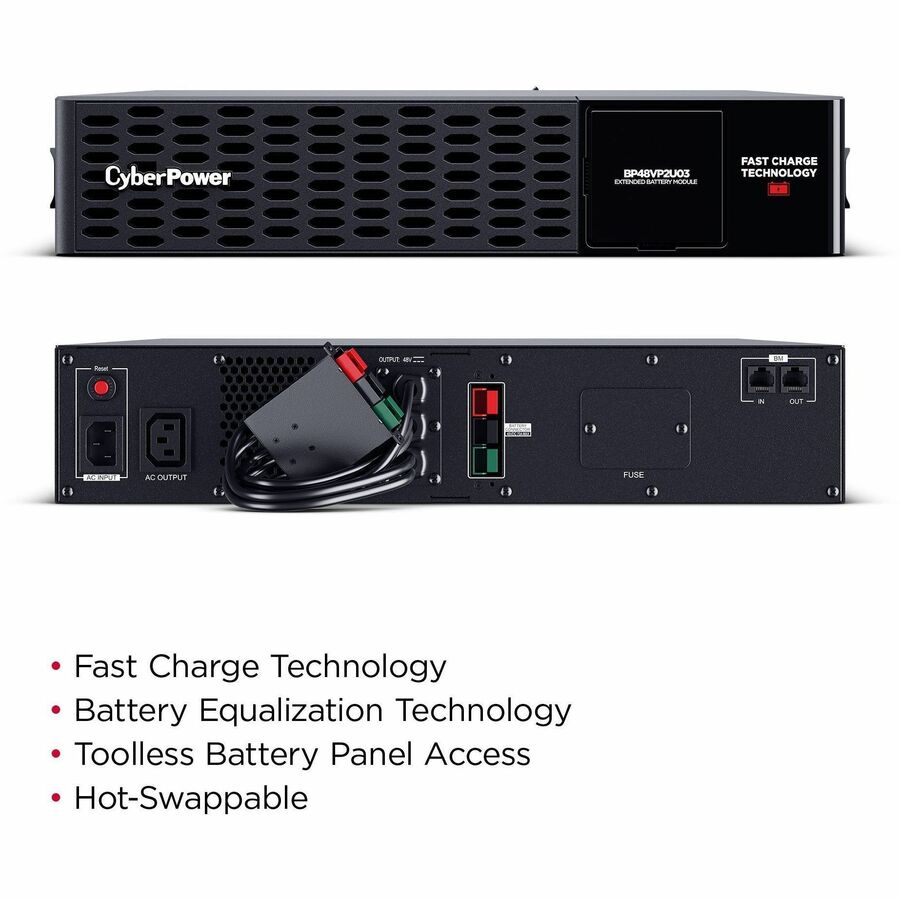

Marketing Information	The CyberPower BP48VP2U03 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following Smart App Sinewave UPS systems: PR2200RTXL2UAN, PR3000RTXL2UAN, PR2200RTXL2UHVAN, PR3000RTXL2UHVAN, PR2200RTXL2UACN, PR3000RTXL2UACN, PR2200RTXL2UHVACN, PR3000RTXL2UHVACN. This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple. With a three-year lifetime limited warranty, you can trust CyberPower's commitment to the quality of the BP48VP2U03.
Product Type	UPS Battery Pack

Technical Information

Battery Characteristics	Sealed/User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Maximum Battery Recharge Time	6 Hour
Battery Capacity	5700 mAh
Output Voltage	48 V DC
Battery Size	12V
Output Current	70 A

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack/Tower
Rack Height	2U

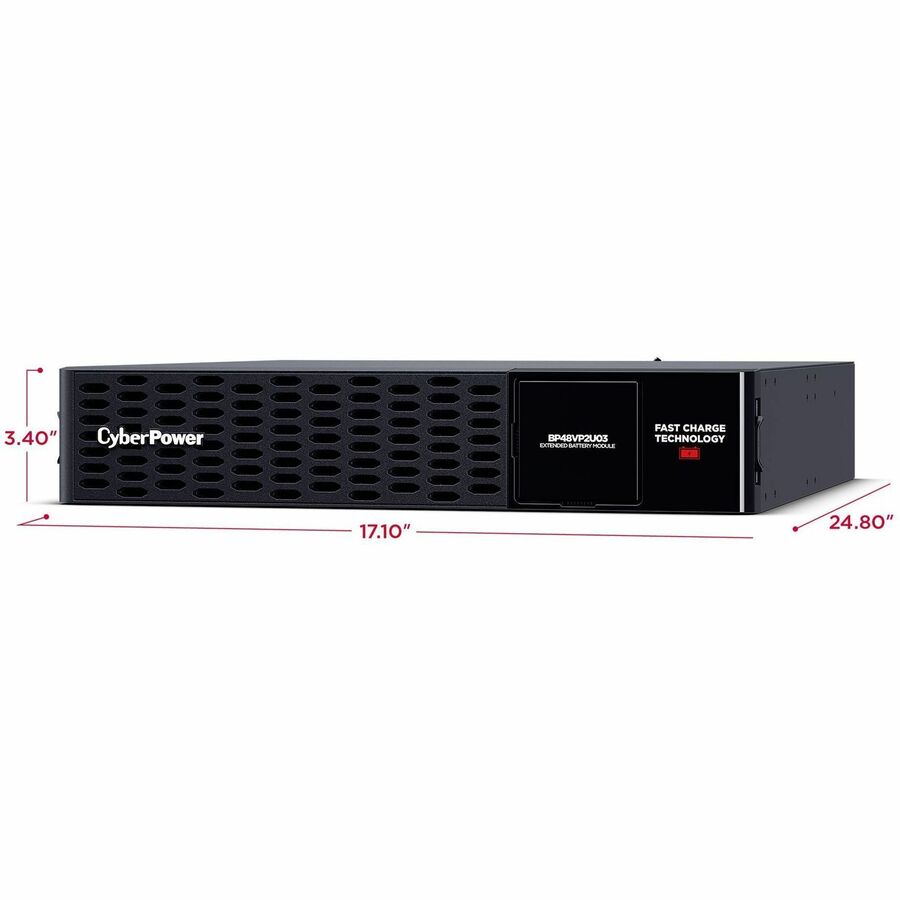

Height	3.4"
Width	17.1"
Depth	24.8"
Weight (Approximate)	90.60 lb

Miscellaneous

Additional Information	Amperage : 70 A DC Voltage : 48 VDC Battery Quantity : 16 Battery Size : 12 V / 5.7 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1260X8 Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 6 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 62.99 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 24.8 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 630 (mm) Weight (kg) : 41.1 Weight (lb) : 90.6 Shipping Dimensions - (WxHxD) (cm) : 57.79 x 27.31 x 76.2 (cm) Shipping - Dimensions (WxHxD, in) : 22.75 x 10.75 x 30.0 (in) Shipping - Dimensions (WxHxD, mm) : 577.85 x 273.05 x 762.0 (mm) Shipping - Weight (kg) : 47.63 Shipping - Weight (lb) : 105.00 Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : IEC-320 C14 Input Voltage Range : 100 VAC - 240 VAC USB Charge Port : No Color : Black Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Models : PR2200RTXL2UAN, PR3000RTXL2UAN, PR2200RTXL2UHVAN, PR3000RTXL2UHVAN, PR2200RTXL2UACN, PR3000RTXL2UACN, PR2200RTXL2UHVACN, PR3000RTXL2UHVACN Environmental : RoHS Compliant Safety : CE\|RCM\|UL1778\|cUL\|FCC Class B\|VCCI Extended Warranty Option : WEXT5YR-BP1 Product Warranty : 3 Year Limited Warranty
Compatibility	CyberPower UPS: PR2200RTXL2UAN PR3000RTXL2UAN PR2200RTXL2UHVAN PR3000RTXL2UHVAN PR2200RTXL2UACN PR3000RTXL2UACN
Certifications & Standards	CE RCM UL1778 cUL FCC Class B VCCI
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
