CyberPower UPS Systems BP48VP2U02 Extended Battery Modules

Name: CyberPower UPS Systems BP48VP2U02 Extended Battery Modules
Brand: CYBERPOWER
SKU: 9GM054
Price: 791.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM054

MFG#

BP48VP2U02

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$791.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

48 VDC / 70 A
12 V / 9 Ah Sealed Lead
Acid Battery, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCompatibilityCyberPower UPS Models:PR1000LCDRTXL2UAPR1500LCDRTXL2UPR1500RTXL2UPR1500RTXL2UCPR1500RTXL2UCNPR2000RTXL2UPR2000RTXL2UCPR2000RTXL2UCNPR2200LCDRTXL2UPR2200RTXL2UPR2200RTXL2UCPR2200RTXL2UCNPR3000LCDRTXL2UPR3000RTXL2UPR3000RTXL2UCPR3000RTXL2UCNOR1500LCDRTXL2UOR2200LCDRTXL2UCertifications & Standards CE RCM UL1778 cUL FCC Class B VCCI Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 82 lbs.

CyberPower BP48VP2U02 Extended Battery Modules

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BP48VP2U02
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Extended Battery Modules
Product Model	BP48VP2U02
Product Name	BP48VP2U02 Extended Battery Modules
Marketing Information	The CyberPower BP48VP2U02 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following UPS systems: PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR1500RTXL2UC, PR1500RTXL2UCN, PR2000RTXL2U, PR2000RTXL2UC, PR2000RTXL2UCN, PR2200LCDRTXL2U, PR2200RTXL2U, PR2200RTXL2UC, PR2200RTXL2UCN, PR3000LCDRTXL2U, PR3000RTXL2U, PR3000RTXL2UC, PR3000RTXL2UCN, OR1500LCDRTXL2U, and OR2200LCDRTXL2U. This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple. With a three-year lifetime limited warranty, you can trust CyberPower's commitment to the quality of the BP48VP2U02.
Packaged Quantity	8
Product Condition	New
Product Type	External Battery Pack

Technical Information

Battery Characteristics	User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Maximum Battery Recharge Time	6 Hour
Battery Capacity	9000 mAh
Input Voltage	120 V
Output Voltage	48 V DC
Battery Size	12V

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack/Tower
Rack Height	2U

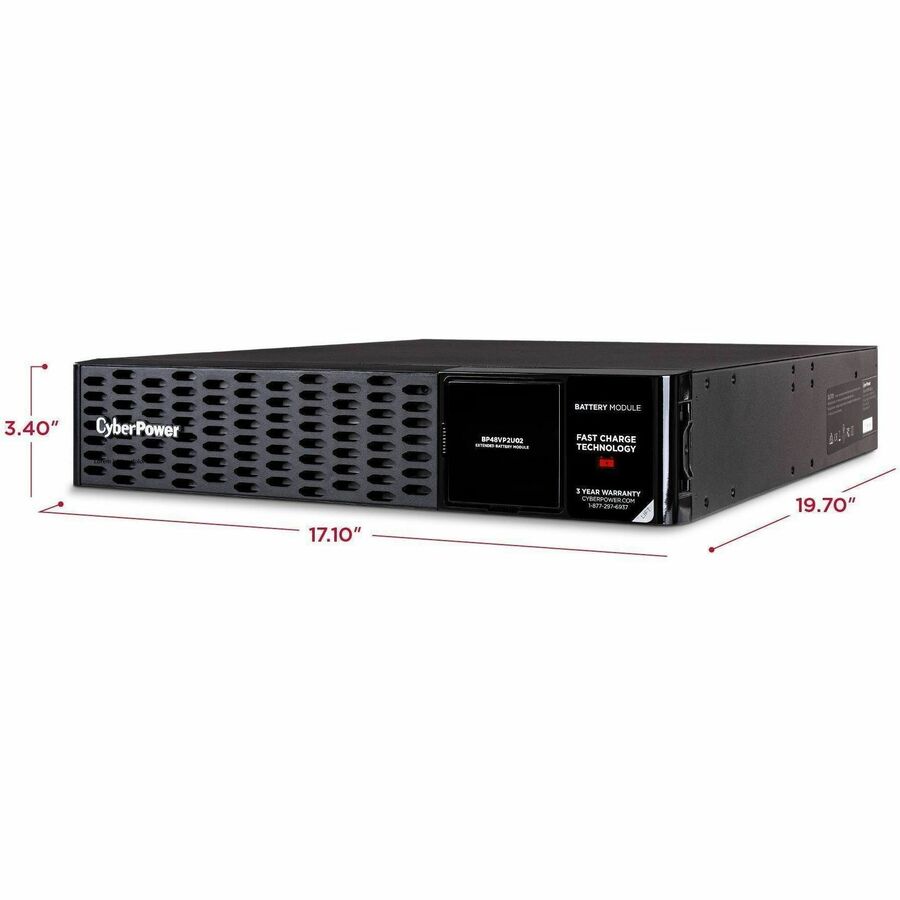

Height	3.4"
Width	17.1"
Depth	19.7"
Weight (Approximate)	66.20 lb

Miscellaneous

Additional Information	Amperage : 70 A DC Voltage : 48 VDC Battery Quantity : 8 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 6 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 30.03 Weight (lb) : 66.2 Shipping Dimensions - (WxHxD) (cm) : 55.88 x 26.67 x 62.23 (cm) Shipping - Dimensions (WxHxD, in) : 22.0 x 10.5 x 24.5 (in) Shipping - Dimensions (WxHxD, mm) : 558.8 x 266.7 x 622.3 (mm) Shipping - Weight (kg) : 36.47 Shipping - Weight (lb) : 80.4 Circuit Breaker : 70 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : IEC-320 C14 Input Voltage Range : 100 VAC - 240 VAC Nominal Input Voltage : 120 VAC USB Charge Port : No Color : Black Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Models : PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR1500RTXL2UC, PR1500RTXL2UCN, PR2000RTXL2U, PR2000RTXL2UC, PR2000RTXL2UCN, PR2200LCDRTXL2U, PR2200RTXL2U, PR2200RTXL2UC, PR2200RTXL2UCN, PR3000LCDRTXL2U, PR3000RTXL2U, PR3000RTXL2UC, PR3000RTXL2UCN, OR1500LCDRTXL2U, and OR2200LCDRTXL2U. Environmental : RoHS Compliant Safety : CE, RCM , UL1778, cUL, FCC Class B, VCCI Extended Warranty Option : WEXT5YR-BP1 Product Warranty : 3 Year Limited Warranty
Compatibility	CyberPower UPS Models: PR1000LCDRTXL2UA PR1500LCDRTXL2U PR1500RTXL2U PR1500RTXL2UC PR1500RTXL2UCN PR2000RTXL2U PR2000RTXL2UC PR2000RTXL2UCN PR2200LCDRTXL2U PR2200RTXL2U PR2200RTXL2UC PR2200RTXL2UCN PR3000LCDRTXL2U PR3000RTXL2U PR3000RTXL2UC PR3000RTXL2UCN OR1500LCDRTXL2U OR2200LCDRTXL2U
Certifications & Standards	CE RCM UL1778 cUL FCC Class B VCCI
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
