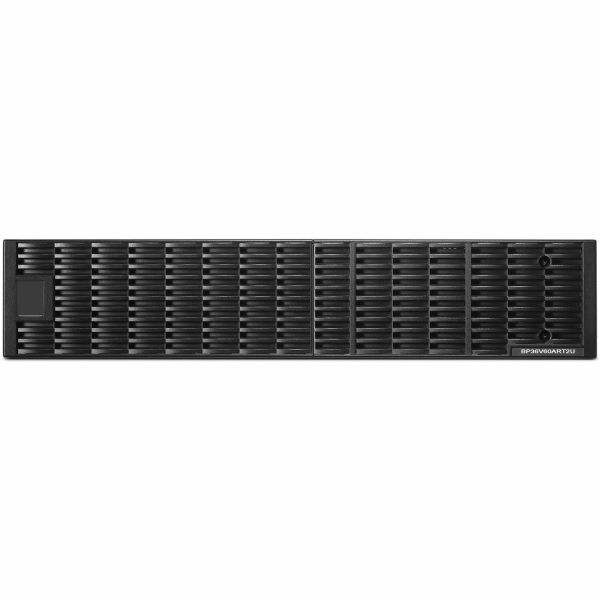

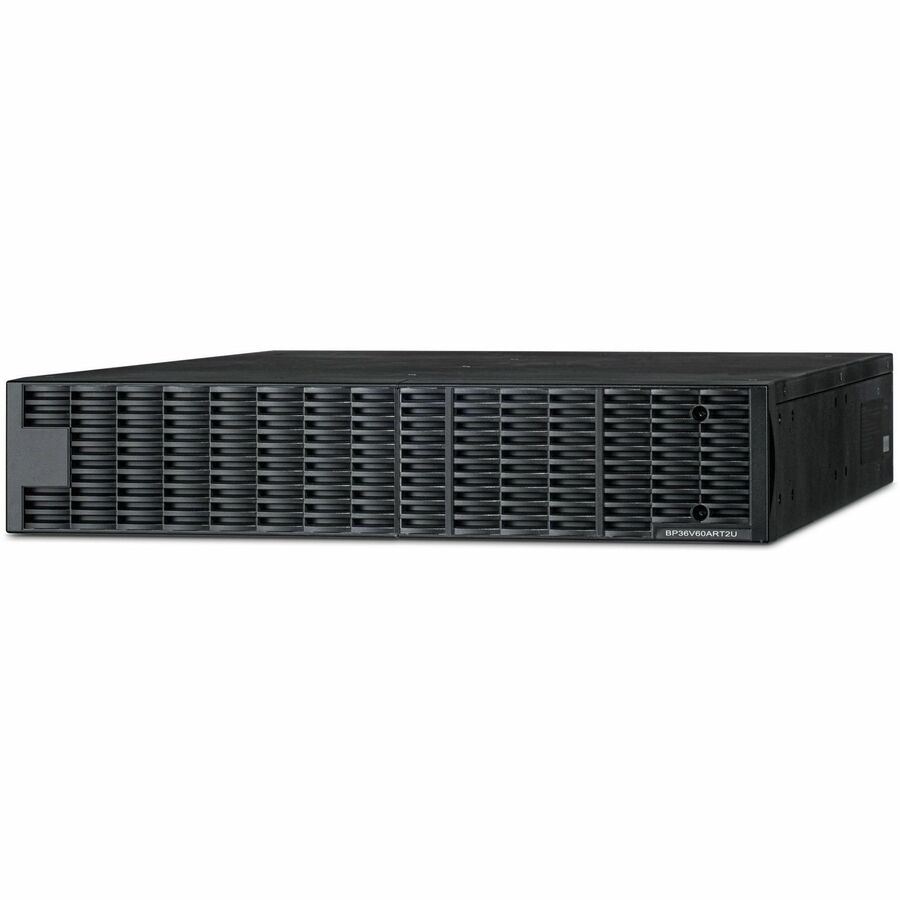

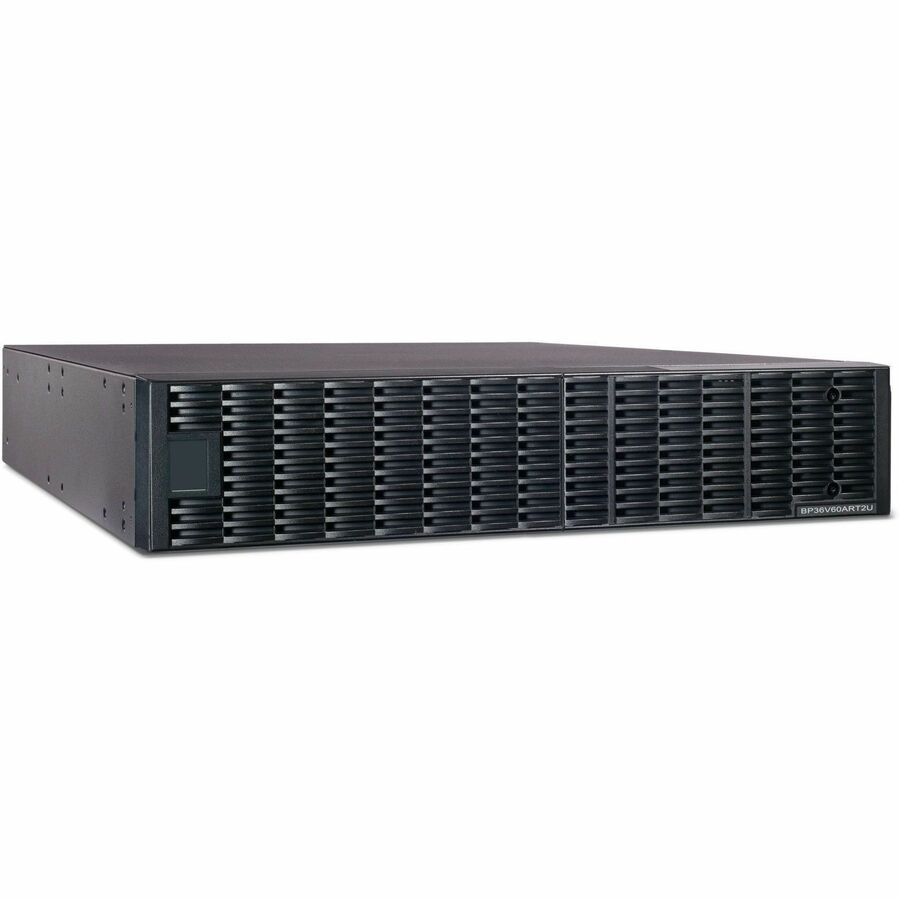

CyberPower UPS Systems BP36V60ART2U Extended Battery Modules

Name: CyberPower UPS Systems BP36V60ART2U Extended Battery Modules
Brand: CYBERPOWER
SKU: 9GM339
Price: 709.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM339

MFG#

BP36V60ART2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$709.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

36 VDC / 60 A
12 V / 9 Ah Sealed Lead
Acid Battery, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 67 lbs.

CyberPower UPS Systems BP36V60ART2U Extended Battery Modules

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BP36V60ART2U
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Extended Battery Modules
Product Model	BP36V60ART2U
Product Name	BP36V60ART2U Battery Unit

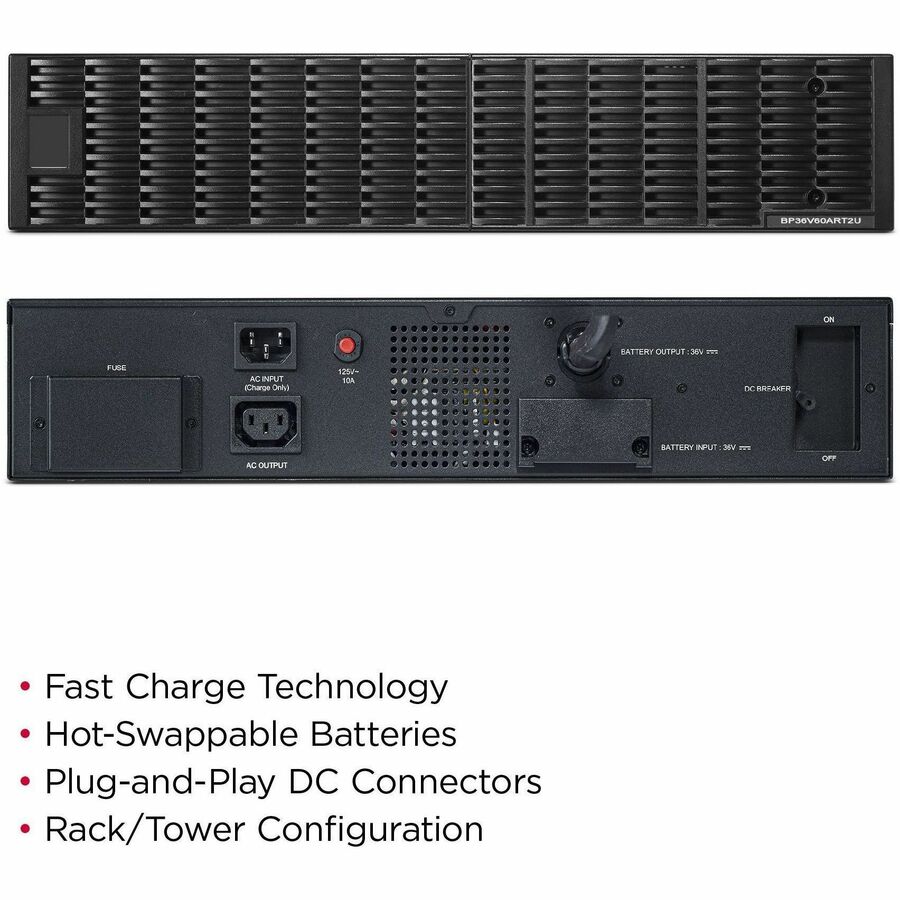

Marketing Information	The CyberPower BP36V60ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U and OL1500RTXL2UN. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity. Up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy-chaining additional EBMs to a UPS system. The BP36V60ART2U typically has a UPS charging time of 4 hours (0-90%), regardless of whether one or ten EBMS are installed, and comes with a three-year warranty. Extended Battery Module Expands runtime and quickly restores full backup power with Fast Charge Technology. Hot-Swappable Batteries Can be replaced without powering down vital equipment. Fast Charge Technology Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS. Smart Battery Management Uses a three-cycle charging mode that improves battery life and reduces generated heat. Plug-and-Play DC Connectors Allow for daisy-chaining additional EBMs to a UPS system. Replaceable DC Fuses Are located behind an easy-access panel. Resettable AC Circuit Breaker Resets the UPS swiftly in case of an overload. Rack/Tower Configuration Allows for horizontal rack or vertical tower installation. Three-Year Warranty Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details. What's In The Box Extended Battery Module, User's manual, Registration card, Rackmount left rail, Rackmount right rail, Left hanging bracket, Right hanging bracket, IEC320 C14 to NEMA 5-15P Power cord, Rackmount ears (Stands) (2), Tie plate, M5X8L black pan head screws (8), M5X12L black pan head screws (12), M5X6L silver pan head screws (6), Plastic washers (8), Screw hole dust covers (10), Rubber feet (12)
Product Type	Battery Unit

Technical Information

Battery Characteristics	User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Maximum Battery Recharge Time	4 Hour
Battery Capacity	9000 mAh
Output Voltage	36 V DC

Physical Characteristics

Product Color	Black

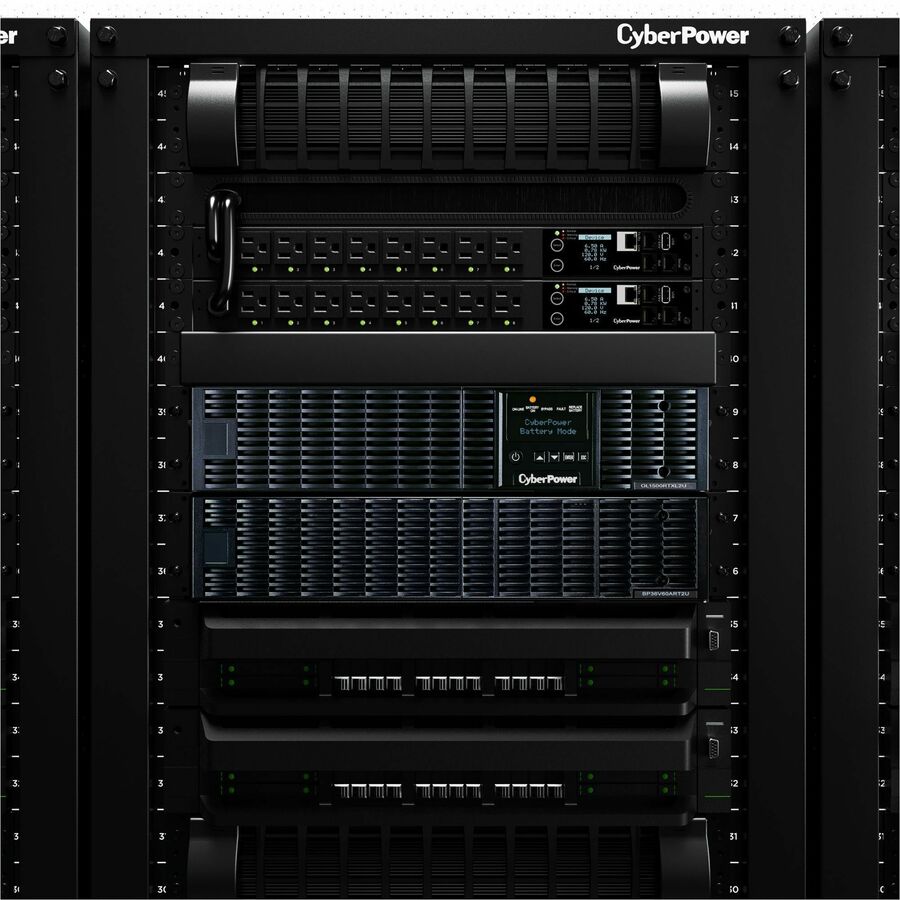

Form Factor	Tower/Rack Mountable
Rack Height	2U

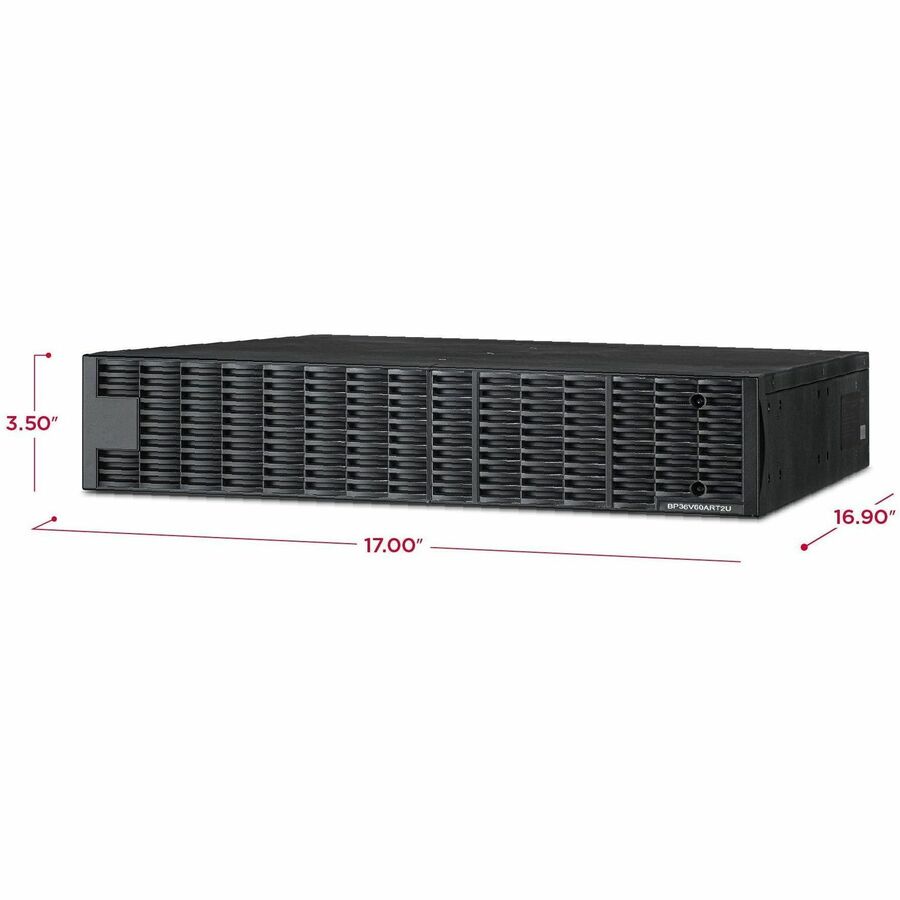

Height	3.5"
Width	17"
Depth	16.9"
Weight (Approximate)	50.60 lb

Miscellaneous

Package Contents	BP36V60ART2U Battery Unit User's manual Registration card Rackmount left rail Rackmount right rail Left hanging bracket Right hanging bracket IEC320 C14 to NEMA 5-15P Power cord 2 x Rackmount ears (Stands) Tie plate 8 x M5X8L black pan head screws 12 x M5X12L black pan head screws 6 x M5X6L silver pan head screws 8 x Plastic washers 10 x Screw hole dust covers 12 x Rubber feet
Additional Information	Amperage: 60A Battery Quantity: 6 Battery Size: 12 V / 9 Ah Battery Type: Sealed Lead-Acid Battery Replacement Battery Cartridge: (1) RB1290X3R and (1) RB1290X3L Built-in Charger: Yes Expansion Ready (Daisy-Chain): Yes Material of Construction: Metal Mounting Hardware: Yes Operating Elevation: 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity: 0 - 90 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C) Storage Elevation: 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity: 0 - 95% (non-condensing) Storage Temperature: 5 - 113 °F (-15 - 45 °C)
Compatibility	CyberPower UPS: OL1000RTXL2U OL1000RTXL2UN OL1500RTXL2U OL1500RTXL2UN
Certifications & Standards	UL1778 CSA C22.2 NO.107.3-05 FCC DOC Class A
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
