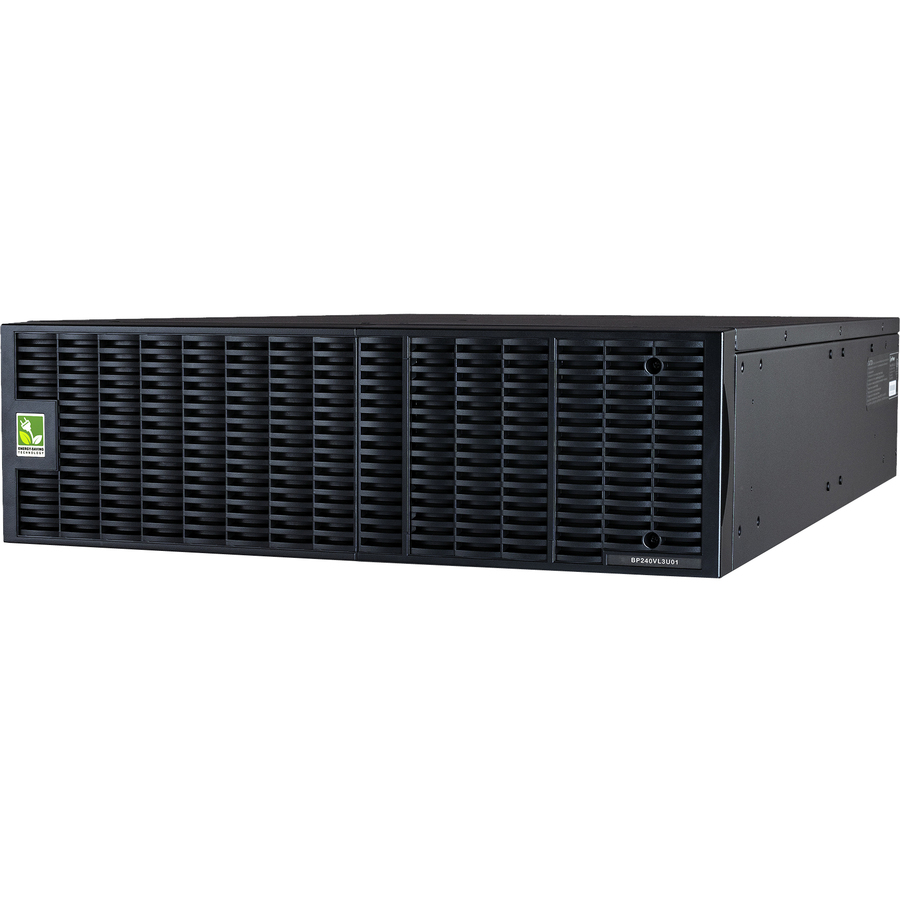

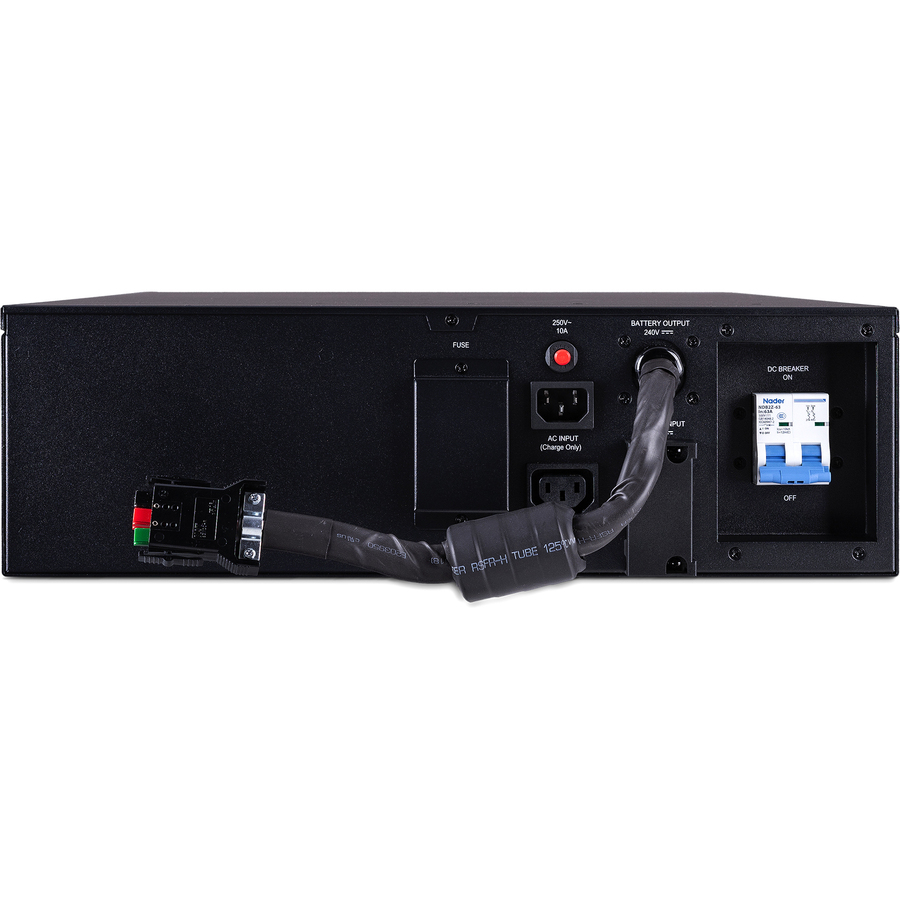

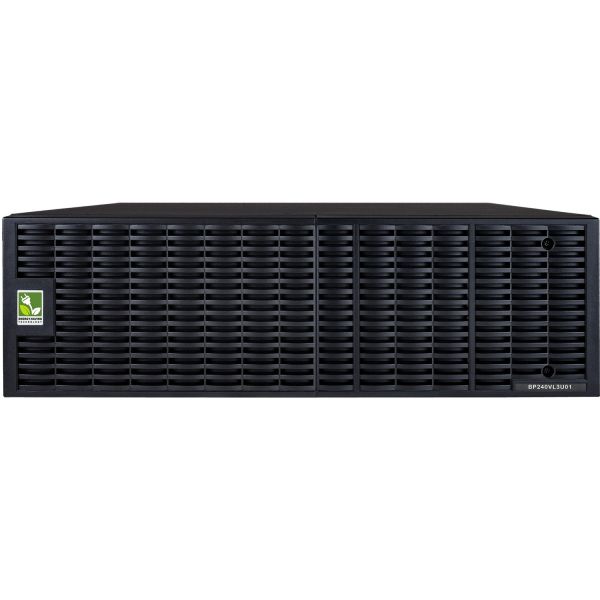

CyberPower UPS Systems BP240VL3U01 Extended Battery Modules

Name: CyberPower UPS Systems BP240VL3U01 Extended Battery Modules
Brand: CYBERPOWER
SKU: 9GM266
Price: 1814.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM266

MFG#

BP240VL3U01

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,814.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

240 VDC / 30 A
12 V / 7 Ah Sealed Lead
Acid Battery, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCompatibilityCyberPower UPS Models: OL6KRT OL6KRTF OL8KRT OL8KRTF OL10KRT OL10KRTF OL10KRTHW Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 95 lbs.

CyberPower UPS Systems BP240VL3U01 Extended Battery Modules

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BP240VL3U01
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Extended Battery Modules
Product Model	BP240VL3U01
Product Name	BP240VL3U01 Extended Battery Modules
Marketing Information	The CyberPower BP240VL3U01 rack/tower convertible Extended Battery Module (EBM) extends UPS runtimes during power outages. Designed for select Smart App Online UPS systems, this EBM takes 3U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply from 0-90% in four hours. Up to ten EBMs can be connected in a daisy-chain to the UPS. The BP240VL3U01 typically has a UPS charging time of four hours regardless of whether one or ten EBMs are installed when Fast Charge is connected. With a three-year warranty, you can trust CyberPower's commitment to the quality of the BP240VL3U01.
Product Type	Battery Unit

Technical Information

Battery Chemistry	Lead Acid
Hot Swappable	Yes
Maximum Battery Recharge Time	4 Hour
Battery Capacity	7000 mAh
Output Voltage	12 V DC

Physical Characteristics

Height	5.2"
Width	17.1"
Depth	26"
Weight (Approximate)	167.55 lb

Miscellaneous

Package Contents	Smart App Online BP240VL3U01 6-10kVA UPS Extended Battery Module Rack Mounting Hardware
Additional Information	Amperage : 30 A Current Rating : 30 A DC Voltage : 240 VDC Battery Quantity : 20 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Charger Input Voltage : 200 - 240 VAC Charger Max. Output Current : 1.5 A Expansion Ready (Daisy-Chain) : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1270X10 Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 4 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.31 x 13.21 x 66.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 5.2 x 26 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 132 x 660 (mm) Rail Depth - Max. Mounting : 36.02 in (914.91 mm) Rail Depth - Min. Mounting : 20.47 in (519.94 mm) Weight (kg) : 75.84 Weight (lb) : 167.2 Shipping Dimensions - (WxHxD) (cm) : 59.99 x 37.49 x 89.99 (cm) Shipping - Dimensions (WxHxD, in) : 23.62 x 14.76 x 35.43 (in) Shipping - Dimensions (WxHxD, mm) : 599.95 x 374.9 x 899.92 (mm) Shipping - Weight (kg) : 10.66 Shipping - Weight (lb) : 23.5 Cord Length : 10 ft (3.0 m) Input Plug Type : NEMA L6-30P Input Voltage : 200 - 240 VAC USB Charge Port : No Color : Black Form Factor : Rack / Tower Material of Construction : Metal Mounting Hardware : Yes Rack Height : 3U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : -4 - 113 °F (-20 - 45 °C) Models : OL6KRT OL6KRTF OL6KRTMB OL6KRTMBTF OL6KRTHW OL8KRT OL8KRTF OL8KRTMB OL8KRTMBTF OL8KRTHW OL10KRT OL10KRTF OL10KRTMB OL10KRTMBTF OL10KRTHW UPS Models : OL6KRT OL6KRTF OL6KRTMB OL6KRTMBTF OL6KRTHW OL8KRT OL8KRTF OL8KRTMB OL8KRTMBTF OL8KRTHW OL10KRT OL10KRTF OL10KRTMB OL10KRTMBTF OL10KRTHW Environmental : RoHS Compliant Safety : UL1778 Extended Warranty Option : WEXT5YR-BP5 Product Warranty : 3 Year Limited Warranty
Compatibility	CyberPower UPS Models: OL6KRT OL6KRTF OL8KRT OL8KRTF OL10KRT OL10KRTF OL10KRTHW
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
