CyberPower UPS Systems BP192VL2U01 Extended Battery Modules

Name: CyberPower UPS Systems BP192VL2U01 Extended Battery Modules
Brand: CYBERPOWER
SKU: 12MT69
Price: 1865.95 USD
Availability: InStock

CYBERPOWER

PCN#

12MT69

MFG#

BP192VL2U01

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,865.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

192 VDC / 60 A
12 V / 5.7 Ah Sealed Lead
Acid Battery, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCompatibilityCyberPower UPS Systems: OL8KRTHD OL10KRTHD Certifications & StandardsUL1778Environmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 55 lbs.

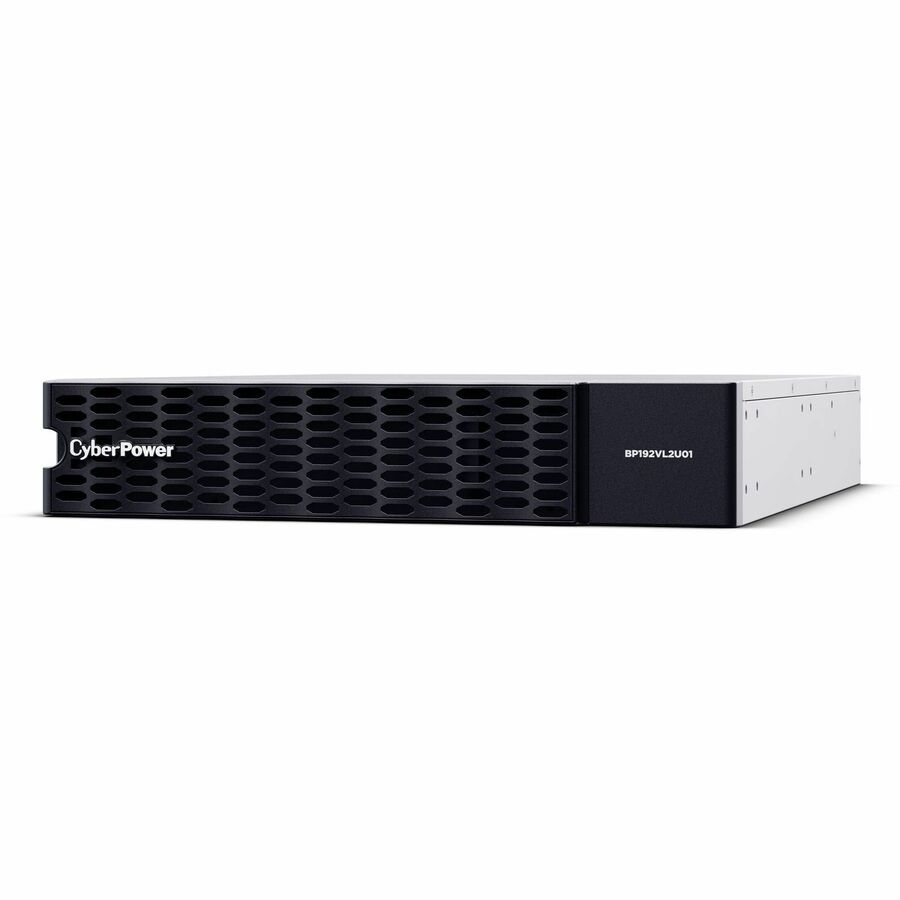

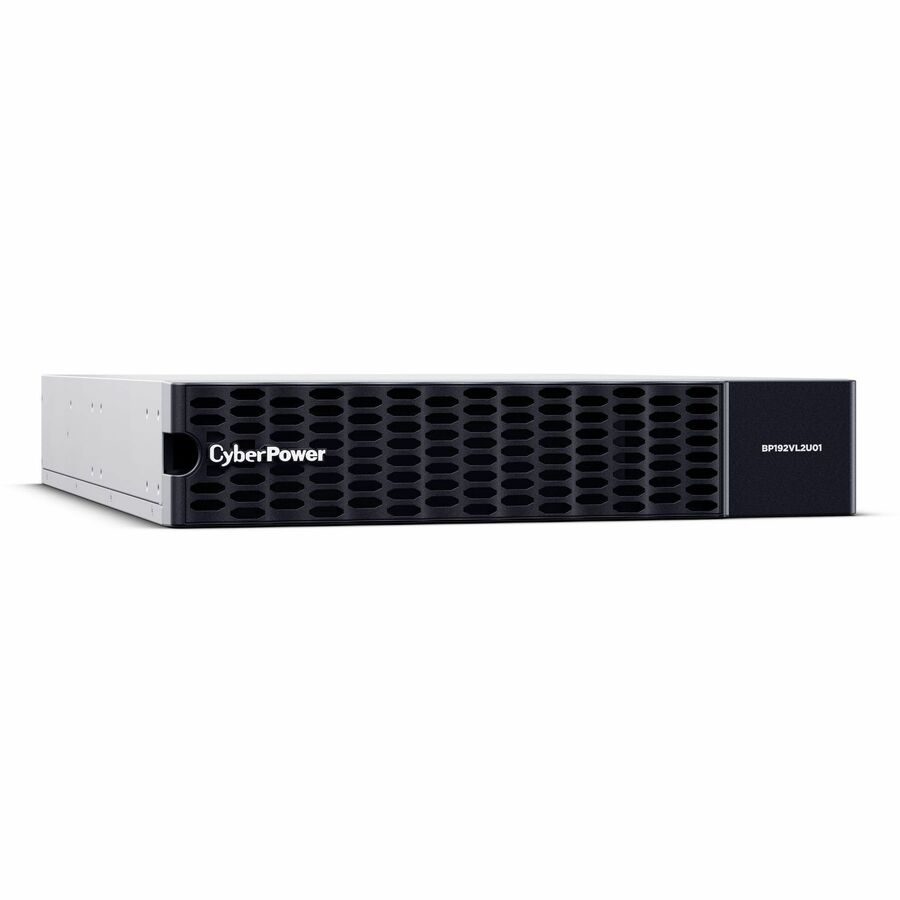

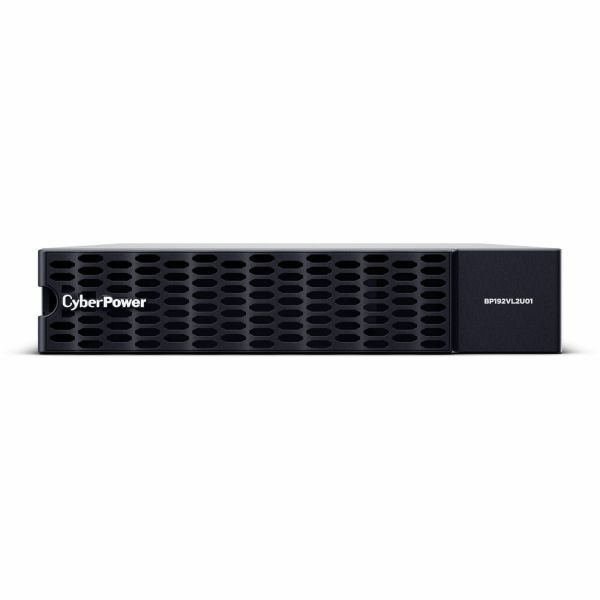

CyberPower BP192VL2U01 Extended Battery Modules

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BP192VL2U01
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Extended Battery Modules
Product Model	BP192VL2U01
Product Name	BP192VL2U01 Extended Battery Modules

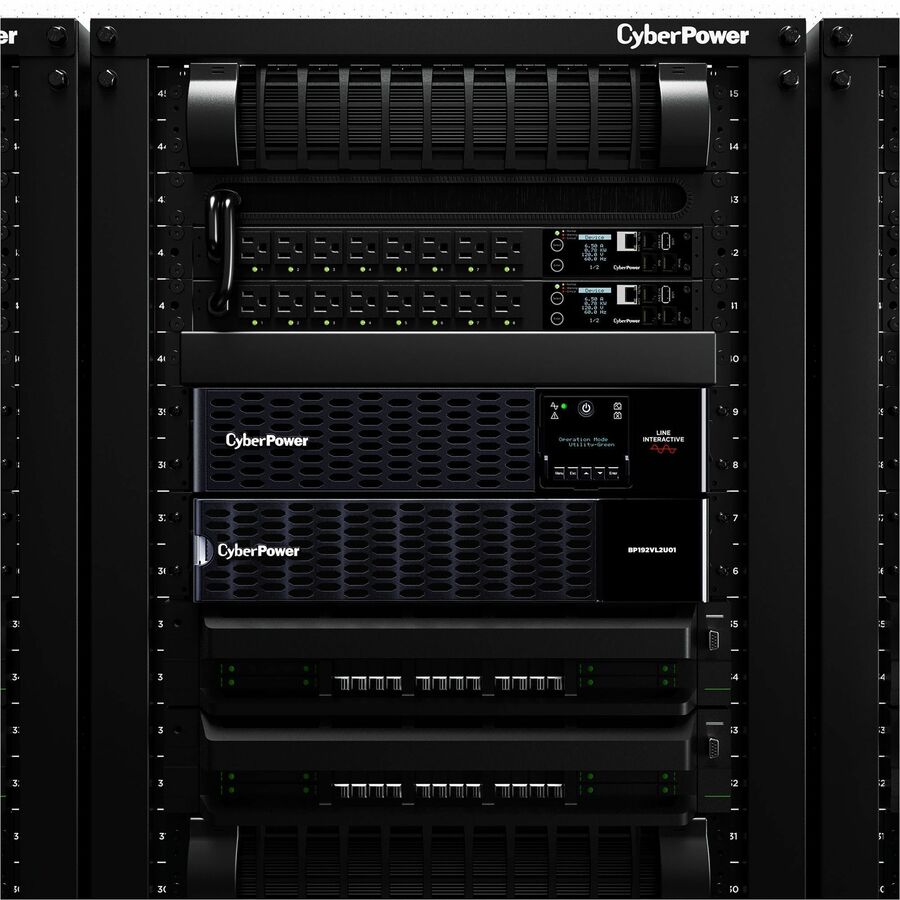

Marketing Information	The CyberPower BP192VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL8KRTHD and OL10KRTHD. The BP192VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
Packaged Quantity	1
Product Type	UPS Battery Pack

Technical Information

Battery Characteristics	Sealed Lead Acid (SLA)
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Maximum Battery Recharge Time	4 Hour
Battery Capacity	6000 mAh
Output Voltage	192 V DC
Battery Size	12V
Output Current	60 A

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)

Physical Characteristics

Form Factor	Rack/Tower
Height	3.4"
Width	17.1"
Depth	28.3"
Weight (Approximate)	101.39 lb

Miscellaneous

Package Contents	Extended Battery Modules BP192VL2U01 UPS Battery Pack Mounting Hardware
Additional Information	Amperage : 60 A DC Voltage : 192 VDC Battery Quantity : 16 Battery Size : 12 V / 5.7 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Expansion Ready (Daisy-Chain) : Yes Field-serviceable Battery : Replaceable by qualified technician Hot Swappable : Yes Replacement Battery Cartridge : RB1260X8A (1) (Left) + RB1260X8B (1) (Right) Replacement Battery Cartridge Quantity : 1 Typical Recharge Time : 4 Hours (0% to 90% charged) User Replaceable Battery : No Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.64 x 71.88 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.4 x 28.3 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 86 x 719 (mm) Weight (kg) : 45.99 Weight (lb) : 101.4 Shipping Dimensions - (WxHxD) (cm) : 59.79 x 21.31 x 109.8 (cm) Shipping - Dimensions (WxHxD, in) : 23.54 x 8.39 x 43.23 (in) Shipping - Dimensions (WxHxD, mm) : 597.92 x 213.11 x 1098.04 (mm) Shipping - Weight (kg) : 54.11 Shipping - Weight (lb) : 119.3 USB Charge Port : No Chassis Color : Unpainted Form Factor : Rack / Tower Front Panel Color : Black Material of Construction : Metal Mounting Hardware : Yes Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : -4 - 113 °F (-20 - 45 °C) Models : OL8KRTHD, OL10KRTHD UPS Models : OL8KRTHD Environmental : RoHS Compliant Safety : UL1778 Extended Warranty Option : WEXT5YR-BP5 Product Warranty : 3 Year Limited Warranty
Compatibility	CyberPower UPS Systems: OL8KRTHD OL10KRTHD
Certifications & Standards	UL1778
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
