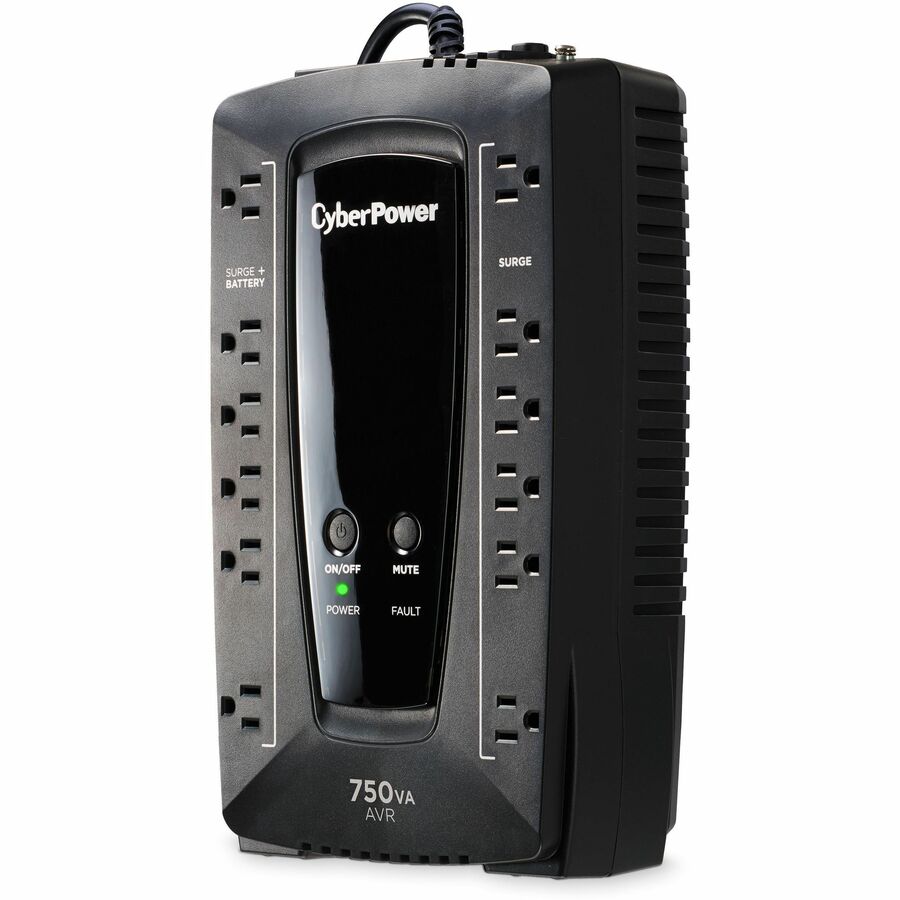

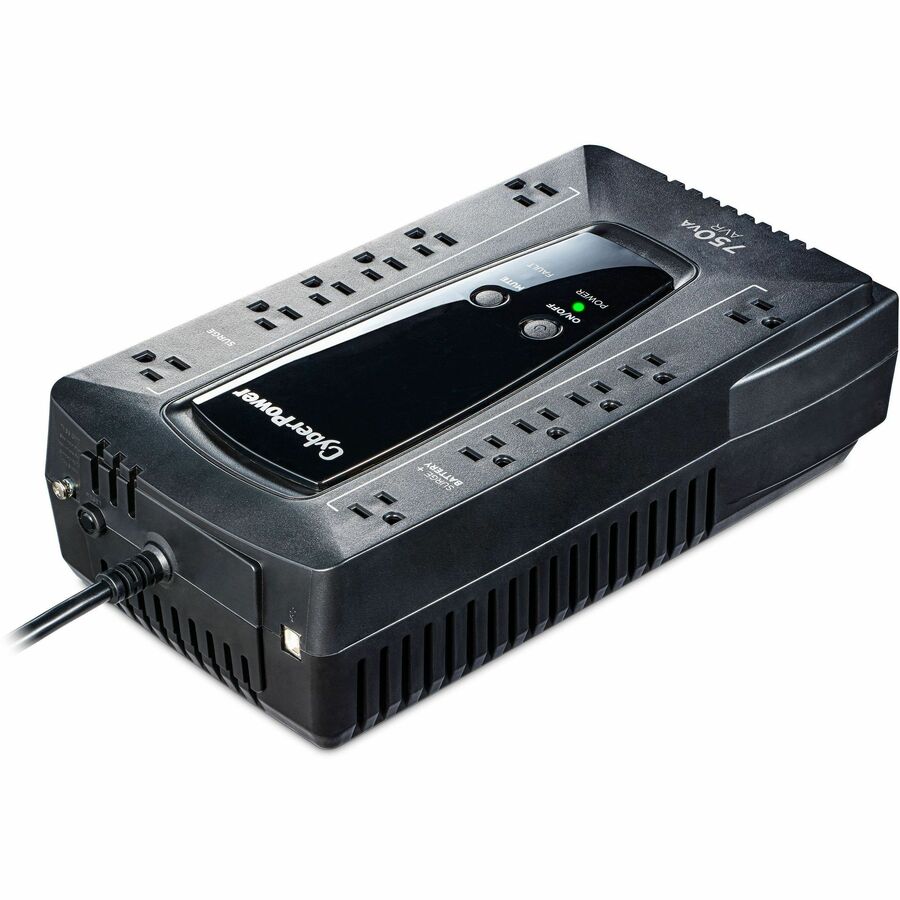

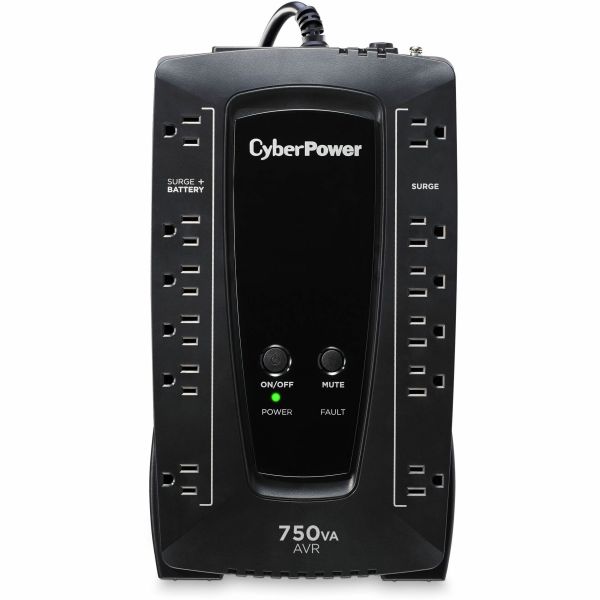

CyberPower AVRG750U AVR UPS Systems

• A compact UPS with line interactive topology, the CyberPower AVRG750U provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750U comes with a three-year warranty (including coverage of batteries) and a

• 150,000 Connected Equipment Guarantee.

• Surge
• EMI
• RFI

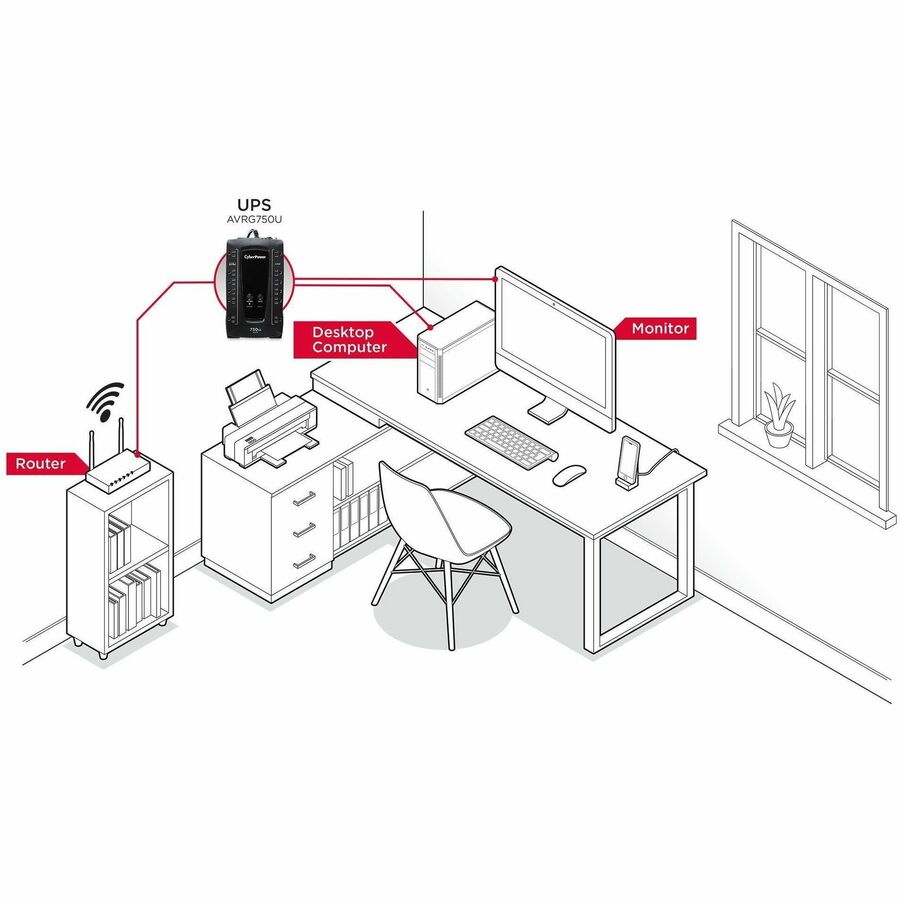

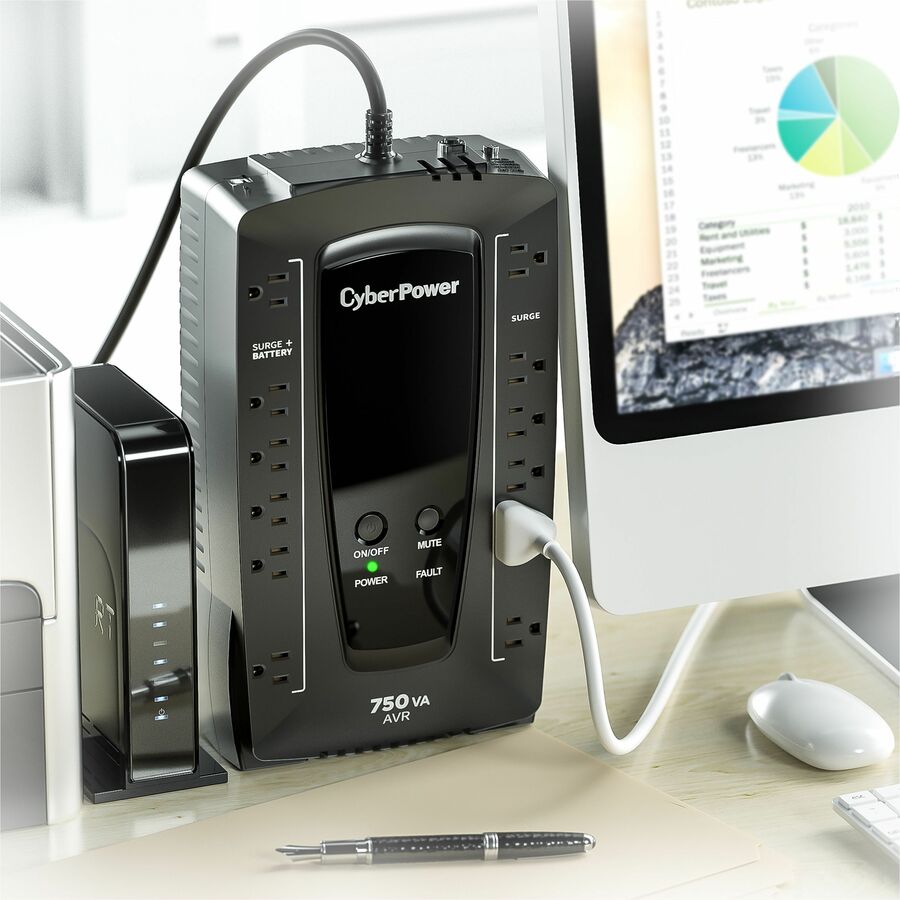

• Desktop Computer
• Workstation
• Network Device

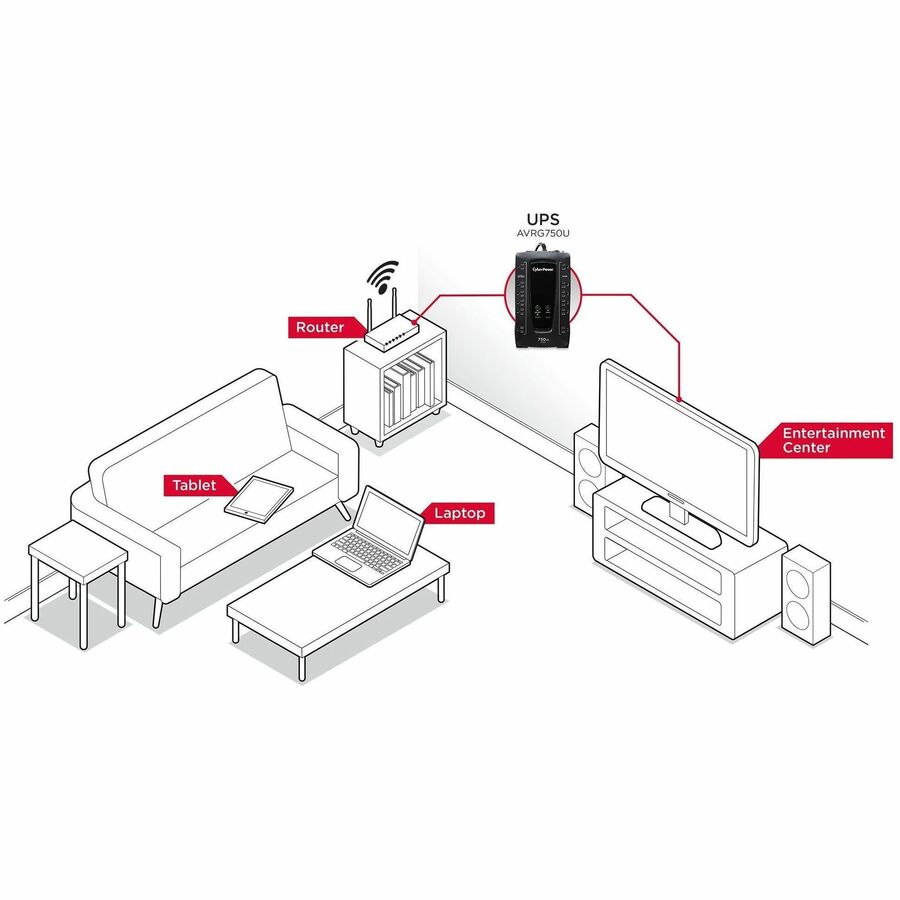

• Home Entertainment System
• Personal Electronic
• Home Network
• Router
• Modem
• VoIP Phone

• 57 Hz
• 63 Hz

• Battery Mode
• Low Battery
• Overload
• Fault

LED Indicators:

• Power On
• Wiring Fault

• Energy Saving : GreenPower UPS™ Bypass Technology
• Energy Star Certified : Yes
• UPS Topology : Line Interactive
• Battery Quantity : 1
• Battery Size : 12 V / 7 Ah
• Battery Type : Sealed Lead-Acid Battery
• Hot Swappable : No
• Replacement Battery Cartridge : RB1270B
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 2.5 min
• Runtime at Half Load : 7.6 min
• Typical Recharge Time : 8 Hours
• User Replaceable Battery : Yes

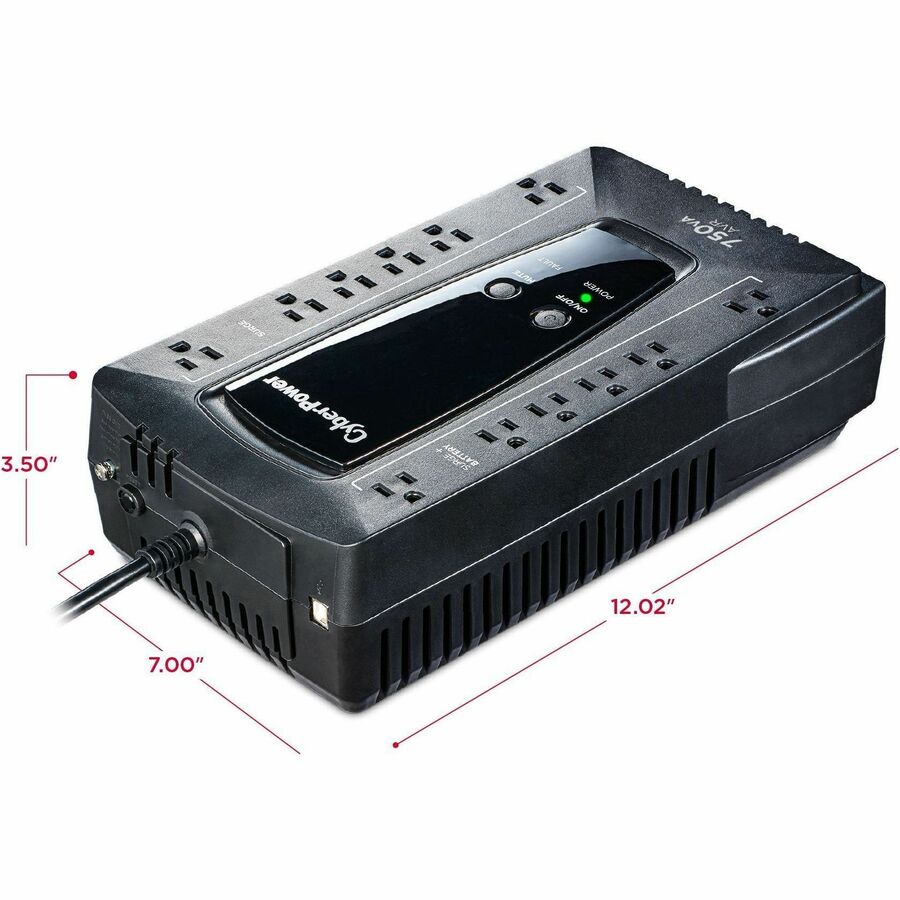

• Physical Dimensions - (WxHxD) (cm) : 30.99 x 17.78 x 8.89 (cm)
• Physical Dimensions - (WxHxD) (in) : 12.2 x 7 x 3.5 (in)
• Physical Dimensions - (WxHxD) (mm) : 310 x 178 x 89 (mm)
• Weight (kg) : 6.1
• Weight (lb) : 13.44
• Shipping Dimensions - (WxHxD) (cm) : 12.83 x 24.74 x 37.47 (cm)
• Shipping - Dimensions (WxHxD, in) : 5.05 x 9.74 x 14.75 (in)
• Shipping - Dimensions (WxHxD, mm) : 128.27 x 247.4 x 374.65 (mm)
• Shipping - Weight (kg) : 6.92
• Shipping - Weight (lb) : 15.25
• Circuit Breaker : 15 A
• Cord Length : 5 ft (1.5 m)
• Input Frequency Range : 57 Hz - 63 Hz

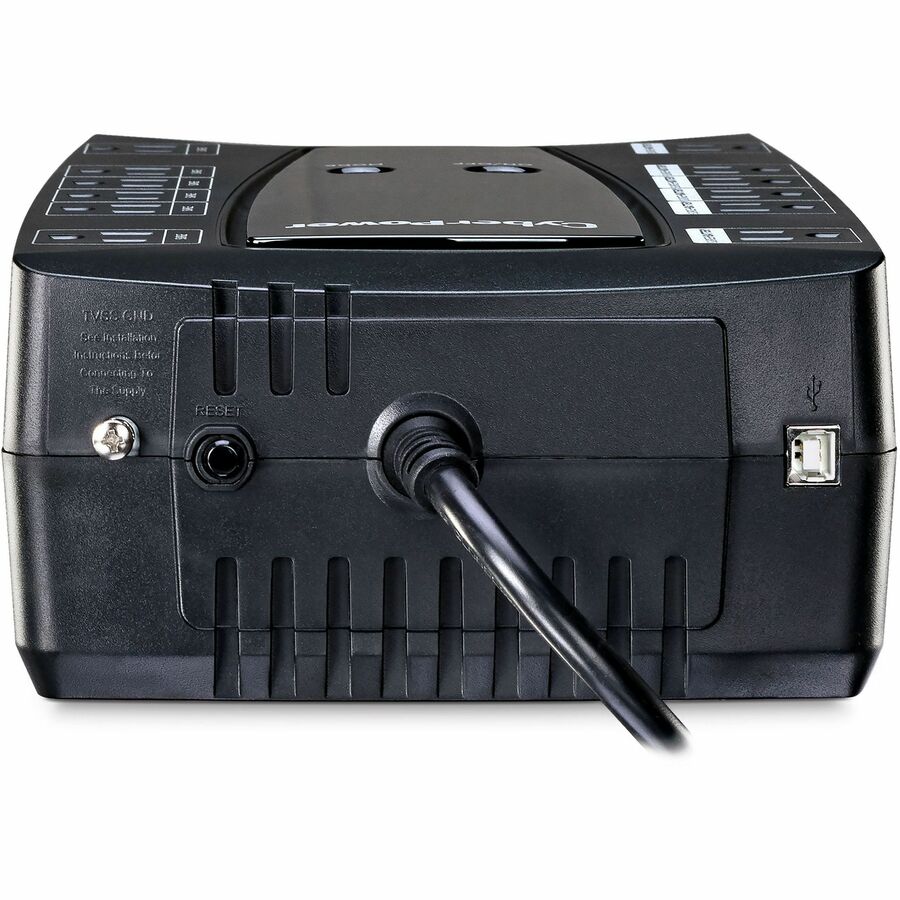

• Input Plug Type : NEMA 5-15P
• Nominal Input Voltage : 120 VAC
• Plug Style : Right Angle - 45° Offset
• Automatic Voltage Regulation : Single Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 60 Hz ± 1%
• On Battery Voltage : 120 VAC ± 5%
• On Battery Waveform : Simulated Sine Wave

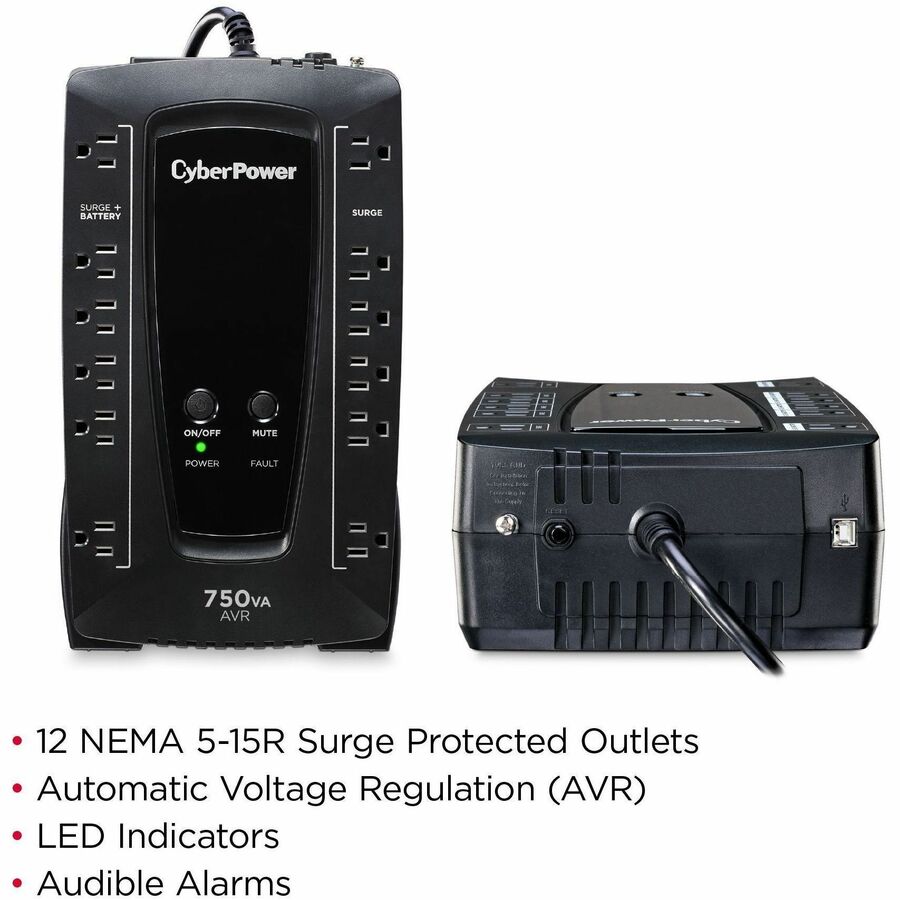

• Outlets - Battery & Surge Protected : 6
• Outlets - Surge-Only Protected : 6
• Outlets - Total : 12
• Outlet Type COMPUTED : 12 - NEMA 5-15R
• Output Power Factor : 0.6
• Overload Protection : Internal Circuitry Limiting
• Typical Transfer Time : 4 ms
• USB Charge Port : No
• VA : 750 VA
• Watts : 450 W
• EMI/RFI Filtration COMPUTED : Yes
• Phone Protection RJ11 : 1-In / 2-Out
• Surge Suppression (Joules) : 1030 J
• EMI/RFI Filtration COMPUTED : Yes
• Phone Protection RJ11 : 1-In / 2-Out
• Surge Suppression (Joules) : 1030 J
• Audible Alarms : Battery Mode
• HID Compliant USB Port : Yes
• LED Indicators : Power On
• Management Cable : USB Cable
• Software (Free Download) : PowerPanel® Personal
• Color : Black
• Form Factor : Compact
• Keyhole Mounting Slots : Yes
• Material of Construction : Plastic
• Operating Elevation : 0 - 6562 ft (0 - 2000 m)
• Operating Relative Humidity : 0 - 90 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Elevation : 0 - 50000 ft (0 - 15239 m)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• CEG Amount :
• 150000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U1B
• Product Warranty : 3 Year Limited Warranty

UL1778

Three-year warranty (including coverage of batteries)

• 150000 Lifetime
