Crestron UC-CX100-Z-WM Video Conference System Integrator Kit

Native Zoom Rooms™ Software Experience
The UC-CX100-Z-WM system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Custom Room Integration
The UC-CX100-Z-WM system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Zoom Rooms software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® wall mount touch screen (TSW-1070-B-S) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

Wall Mount Options
Using the bracket provided, the TSW-1070 is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.

• Plastic
• Metal

• Height: 5.87 in. (149 mm)
• Width: 9.46 in. (240 mm)
• Depth: 2.01 in. (51 mm)

• Height: 15.00 in. (381 mm)
• Width: 14.50 in. (368 mm)
• Depth: 1.72 in. (44 mm)

• Height: 1.58 in. (40 mm)
• Width: 9.25 in. (235 mm)
• Depth: 8.20 in. (208 mm)

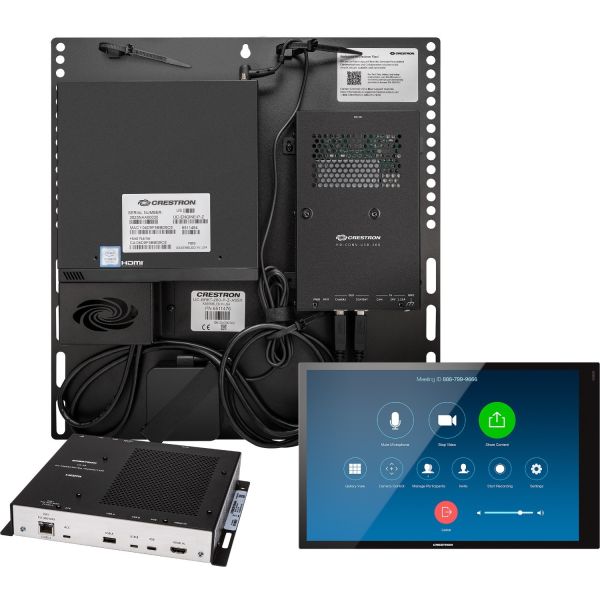

• TSW-1070-B-S 10.1 in. (257 mm) wall mount touch screen, black
• UC Engine: ASUS Mini PC with Zoom Rooms video
• ADPT-USB-ENET: USB-to-Ethernet Adapter
• HD-CONV-USB-260: CAT5 to USB 3.0 converter for content ingest
• Mounting hardware
• EDID Passthroughs: (2) HDMI Female-to-Male
• UC-PR UC Presentation Transmitter
• CBL-4K-DP-HD-6 Active Converter Cable, DisplayPort™ to HDMI, 18 Gbps, 6 ft (1.8 m)
• 3 x CBL-CAT5E-7 Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)
• CBL-HD-6 HDMI Interface Cable, 6 ft (1.8 m)
• DM-CBL-ULTRA-PC-20 Ethernet LAN cable, CAT6a, RJ45-to-RJ45, blue, 20 ft (6.1 m)
