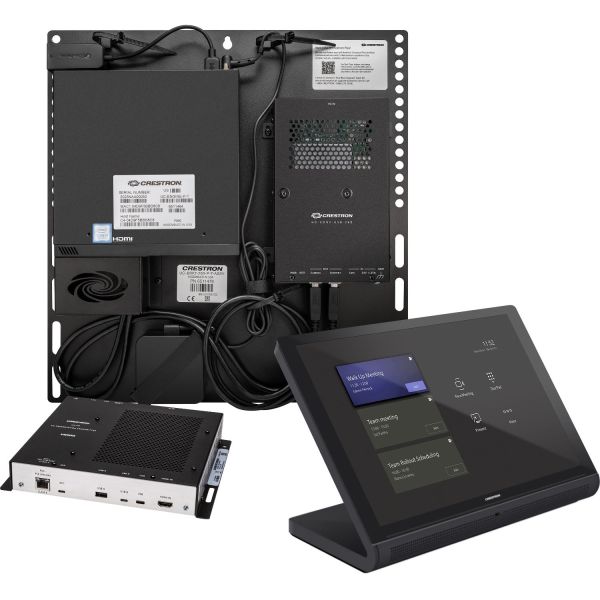

Crestron UC-CX100-T Video Conference System Integrator Kit

Native Microsoft Teams® Rooms Experience
The UC-CX100-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility, whether implementing a cloud based Microsoft Teams Rooms deployment, on-premises Skype® for Business software, or a hybrid of the two.

Custom Room Integration
The UC-CX100-T system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Microsoft Teams software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

Intuitive User Interface

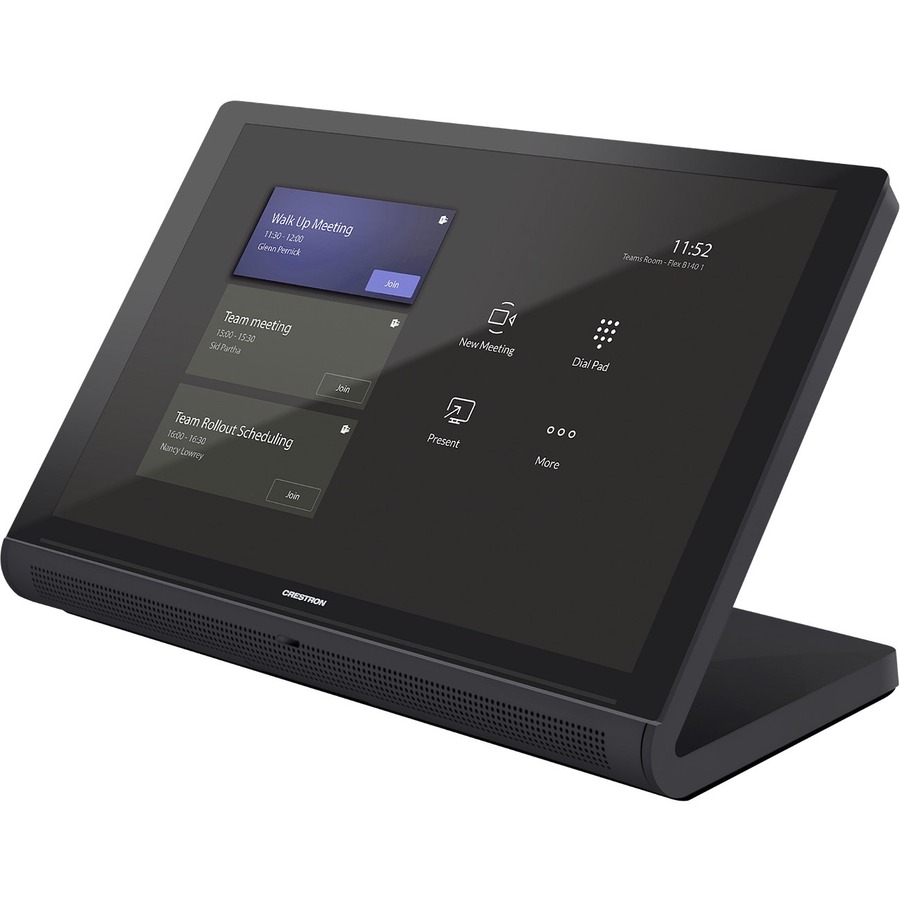

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS-1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.

Crestron Control System Integration
The UC-CX100-T can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

• Height: 5.29 in. (134 mm)
• Width: 9.63 in. (245 mm)
• Depth: 4.67 in. (119 mm)

• Height: 15.00 in. (381 mm)
• Width: 14.50 in. (368 mm)
• Maximum Depth: 1.87 in. (48 mm)

• Height: 1.58 in. (40 mm)
• Width: 9.25 in. (235 mm)
• Depth: 8.20 in. (208 mm)

• 2.44 lb (1105 g)

• 8.0 lb (3.7 kg)

• 1 x 10.1 in. Tabletop Touch Screen, Black Smooth
• 1 x Crestron Certified HDMI Interface Cable, 18 Gbps, 6 ft (1.8 m)
• 2 x DigitalMedia Ultra Patch Cable, 20 ft (6 m)
• 2 x CAT5e Cable, RJ45-to-RJ45, Black, 7 ft (2.1 m)
• 1 x Active Converter Cable, DisplayPort to HDMI, 18 Gbps, 6 ft (1.8 m)
