Crestron UC-C100-Z Video Conference System Integrator Kit

Native Zoom Rooms™ Software Experience
The UC-C100-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Custom Room Integration
The UC-C100-Z system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Zoom Rooms software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

Intuitive User Interface
^{With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS-1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.}

Simplified Deployment

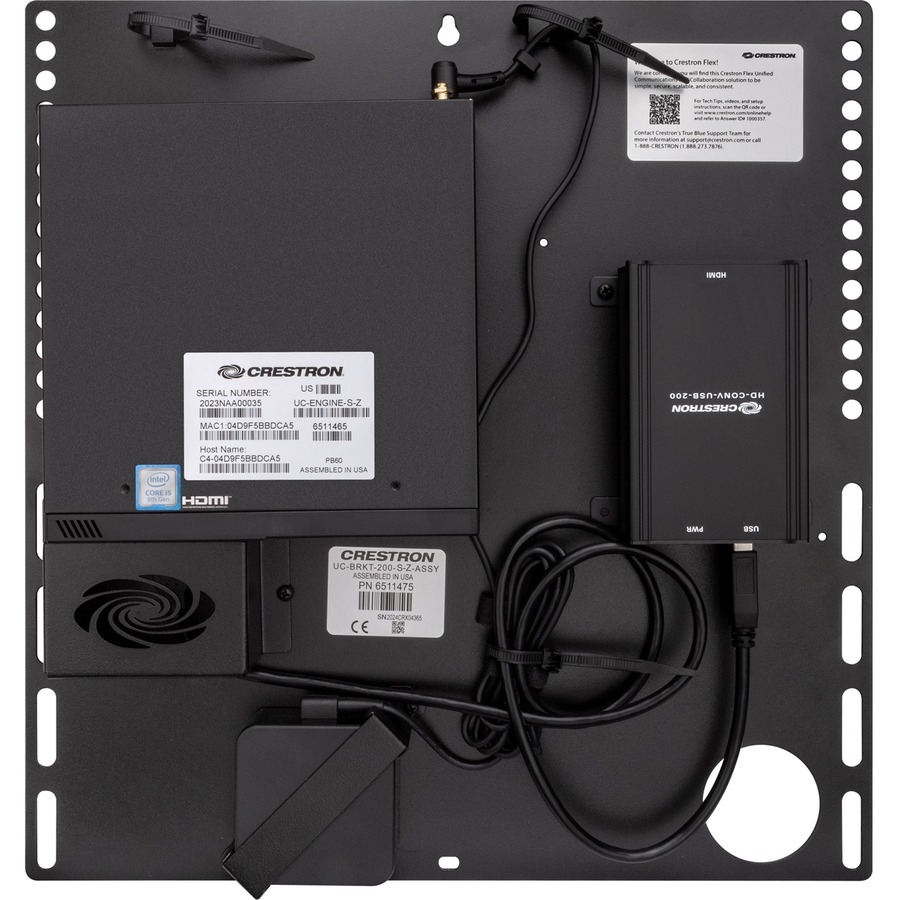

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system's UC Engine. System updates are controlled by Windows® software update.

• Plastic
• Metal

• Height: 5.29 in. (134 mm)
• Width: 9.63 in. (245 mm)
• Depth: 4.67 in. (119 mm)

• Height: 15.00 in. (381 mm)
• Width: 14.50 in. (368 mm)
• Depth: 1.87 in. (44 mm)

• Weight: 2.44 lb (1105 g)

• Weight: 7.7 lb (3.5 kg)

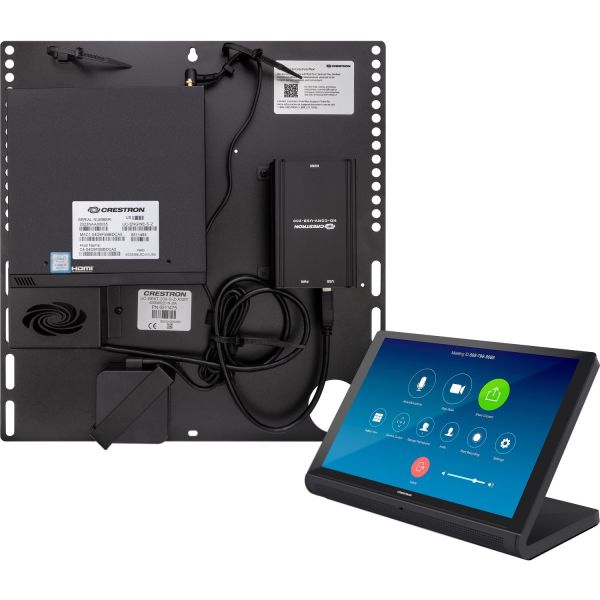

• TS-1070-B-S 10.1 in. (257 mm) tabletop touch screen, black
• UC-BRKT-200-S-Z-ASSY: UC Bracket Assembly, UC Engine, HD-CONV-USB-200,Mounting hardware
• CBL-4K-DP-HD-6: DisplayPort™ to HDMI Cable, 6 ft (1.8 m); secondary display
• CBL-CAT5E-7: Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)
• CBL-HD-6: HDMI Interface Cable, 6 ft (1.8 m); primary display
• CBL-HD-20: HDMI Interface Cable, 20 ft (6.1 m); content sharing
• PWE-4803RU: PoE Injector
