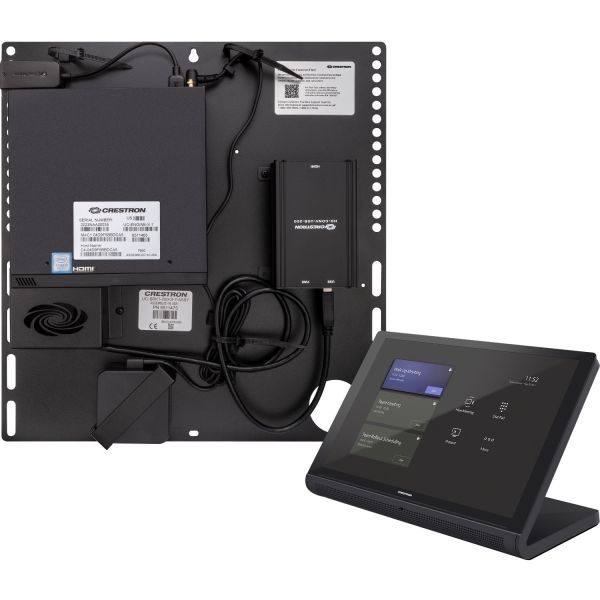

Crestron UC-C100-T Video Conference System Integrator Kit

Native Microsoft Teams® Rooms Experience
The UC-C100-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Custom Room Integration
The UC-C100-T system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Microsoft Teams software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

Shure® IntelliMix® Room Integration
The UC-C100-T supports Shure IntelliMix Room digital signal processing (DSP) software to enable integration with custom audio components such as networked microphones and power amplifiers.

IntelliMix Room integrates seamlessly with the UC-C100-T and runs on the UC Engine as conferencing software with no additional hardware requirements.

Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS-1070-B-S) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

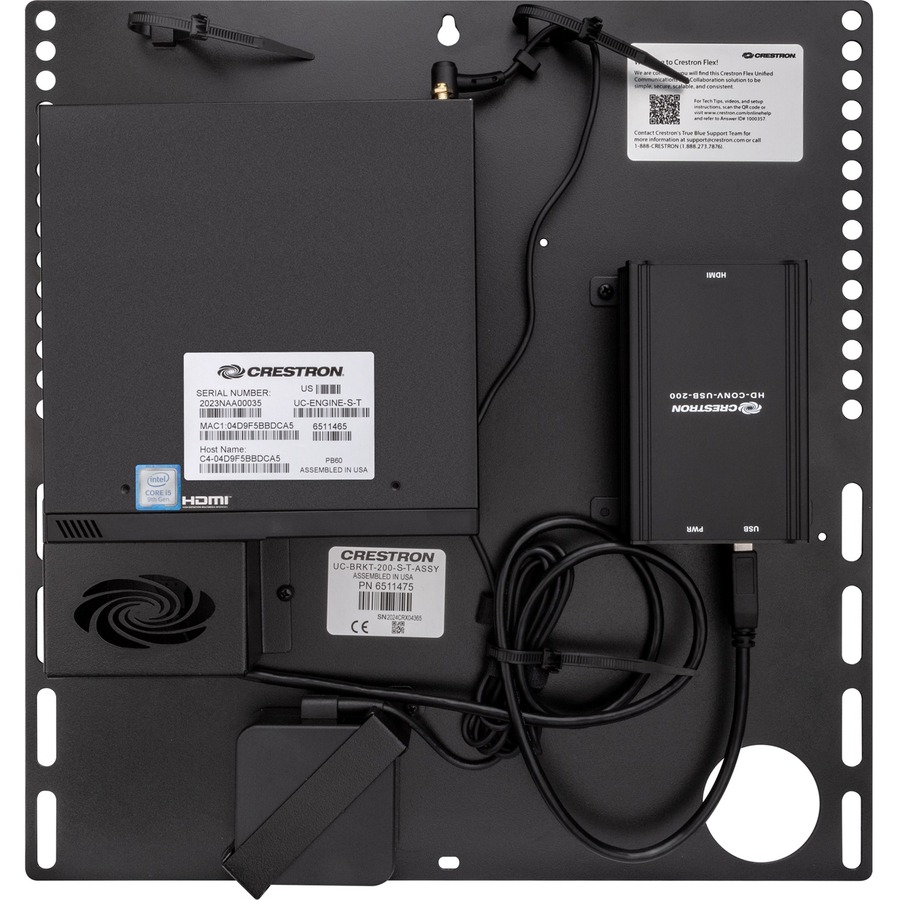

The UC Bracket Assembly (UC-BRKT-200-S-T-ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.

Crestron Control System Integration
The UC-C100-T can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system's UC Engine. System updates are controlled by Windows® software update.

• Plastic
• Metal

• Height: 5.29 in. (134 mm)
• Width: 9.63 in. (245 mm)
• Depth: 4.67 in. (119 mm)

• Height: 15.00 in. (381 mm)
• Width: 14.50 in. (368 mm)
• Depth: 1.72 in. (44 mm)

• Weight: 2.44 lb (1105 g)

• Weight: 6.64 lb (3 kg)

• TS-1070-B-S-T-V: 10.1 in. (257 mm) tabletop touch screen, black
• UC Engine: ASUS Mini PC with Microsoft Teams video
• HD-CONV-USB-200: HDMI® to USB 3.0 converter for content ingest
• Mounting hardware
• EDID Passthrough: (2) HDMI Female-to-Male
• CBL-4K-DP-HD-6: DisplayPort™ to HDMI Cable, 6 ft (1.8 m)
• CBL-CAT5E-7: Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)
• CBL-HD-6: HDMI Interface Cable, 6 ft (1.8 m)
• CBL-HD-20: HDMI Interface Cable, 20 ft (6.1 m)
• DM-CBL-ULTRA-PC-20: Ethernet LAN cable, CAT6a, RJ45-to-RJ45, blue, 20 ft (6.1 m)
• PWE-4803RU: PoE Injector
