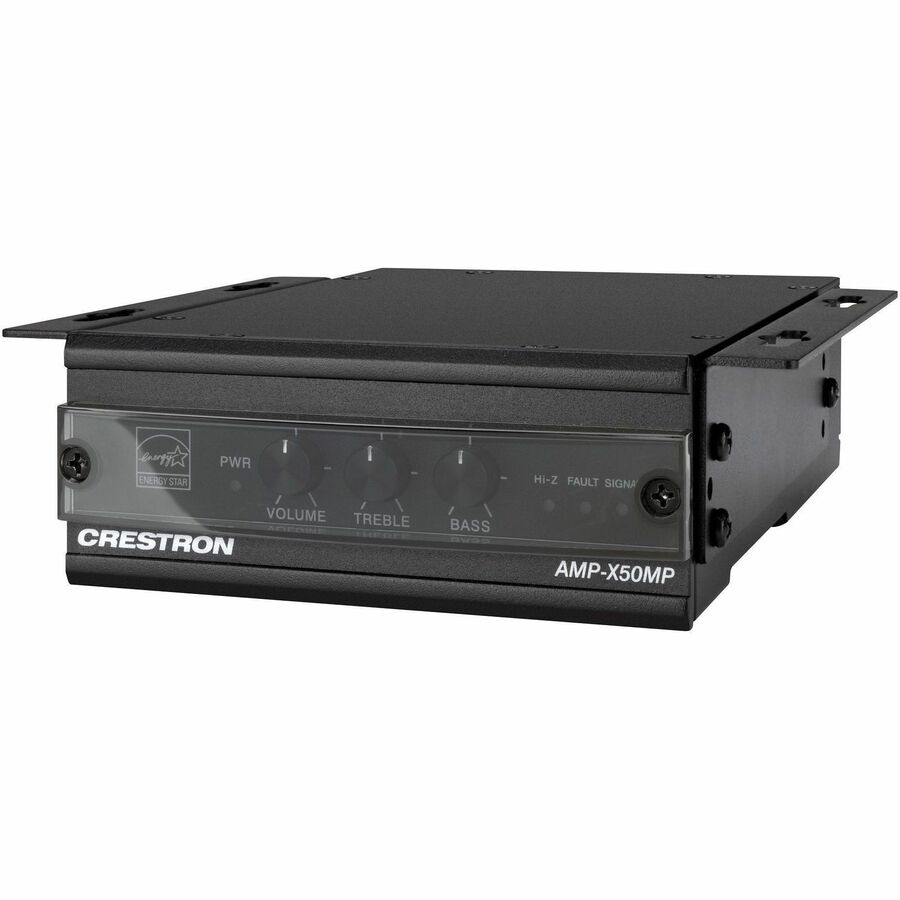

AMP-X50MP AMPLIFIER

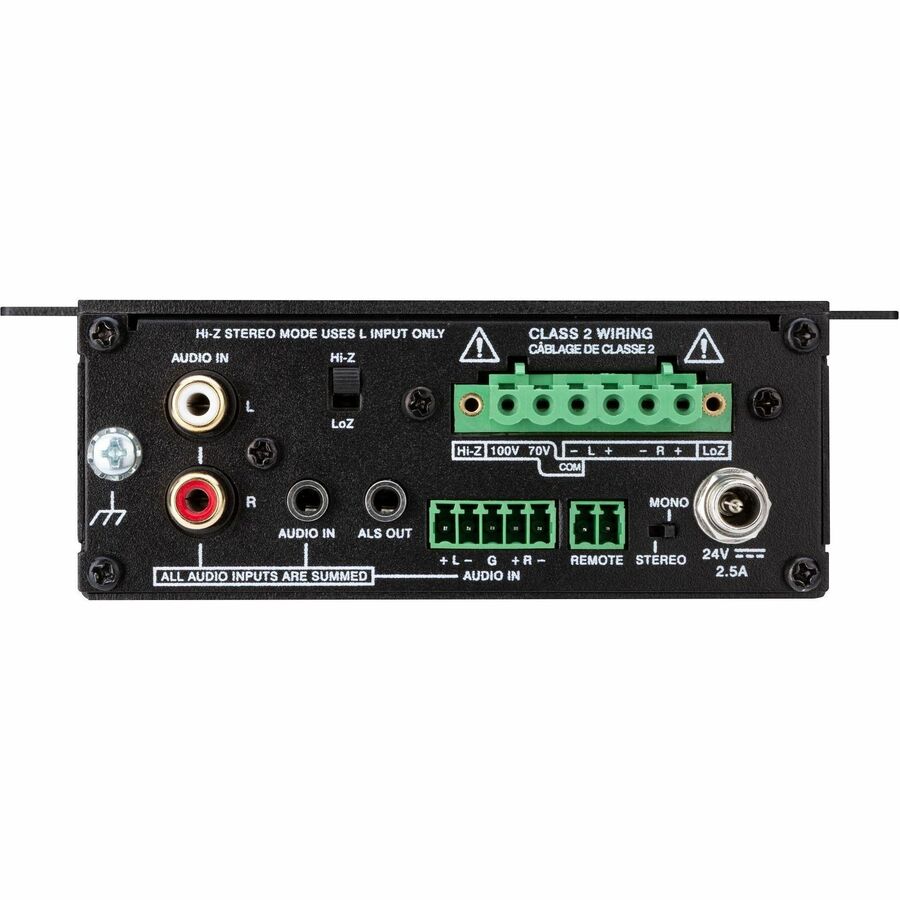

Convection CoolingThe efficient design provides cool running operation to ensure long term reliability. The AMP-X50MP is high-density stackable with other Crestron X Series and Modular Amplifiers, allowing multiple units to be installed vertically in an equipment rack without needing extra ventilation space. Easy InstallationInstallation and setup of the AMP-X50MP is simple. Detachable connectors facilitate the termination of wiring. Balanced and unbalanced inputs can connect directly to the line output of a video projector or display, audio processor, mixer, or AV switcher. Independent controls for volume, bass, and treble allow a custom sound in any location. A knob cover is included with the product to protect against accidental changes to the front panel settings. Fully ProtectedThe AMP-X50MP features protection against overheating, shorted or overloaded speaker lines, excessive input signals, and other faults. In the case of a shorted speaker line, both outputs mute automatically until the fault condition is resolved. ENERGY STAR® CertifiedAn energy-efficient design enables the AMP-X50MP to meet demanding ENERGY STAR requirements. In addition to its high efficiency operation, the AMP-X50MP powers down automatically when no input signal is detected for more than 25 minutes, reducing overall power consumption and heat as part of an Energy Star® compliant system design. The amplifier quickly powers back on the instant an input signal is detected. A remote input can connect to a contact closure to place the amplifier in standby mode.Product TypeAmplifierTechnical InformationMinimum Frequency Response20 HzMaximum Frequency Response20 kHzImpedance8 OhmAudioAudio Channels2RMS Output Power50 WInterfaces/PortsNumber of Analog Audio Inputs2Power DescriptionInput Voltage

• 120 V AC
• 230 V AC

Operating Power Consumption14.60 WPhysical CharacteristicsColor FamilyBlackProduct ColorBlackHeight1.7"Width4.3"Depth7"Weight (Approximate)3.31 lbMiscellaneousForm FactorSurface MountEnergy StarYes
