5YR NTCLD IOT ESSTLS ADV PLAN S700 ROUTER W/ WIFI 150 MBPS MODEM

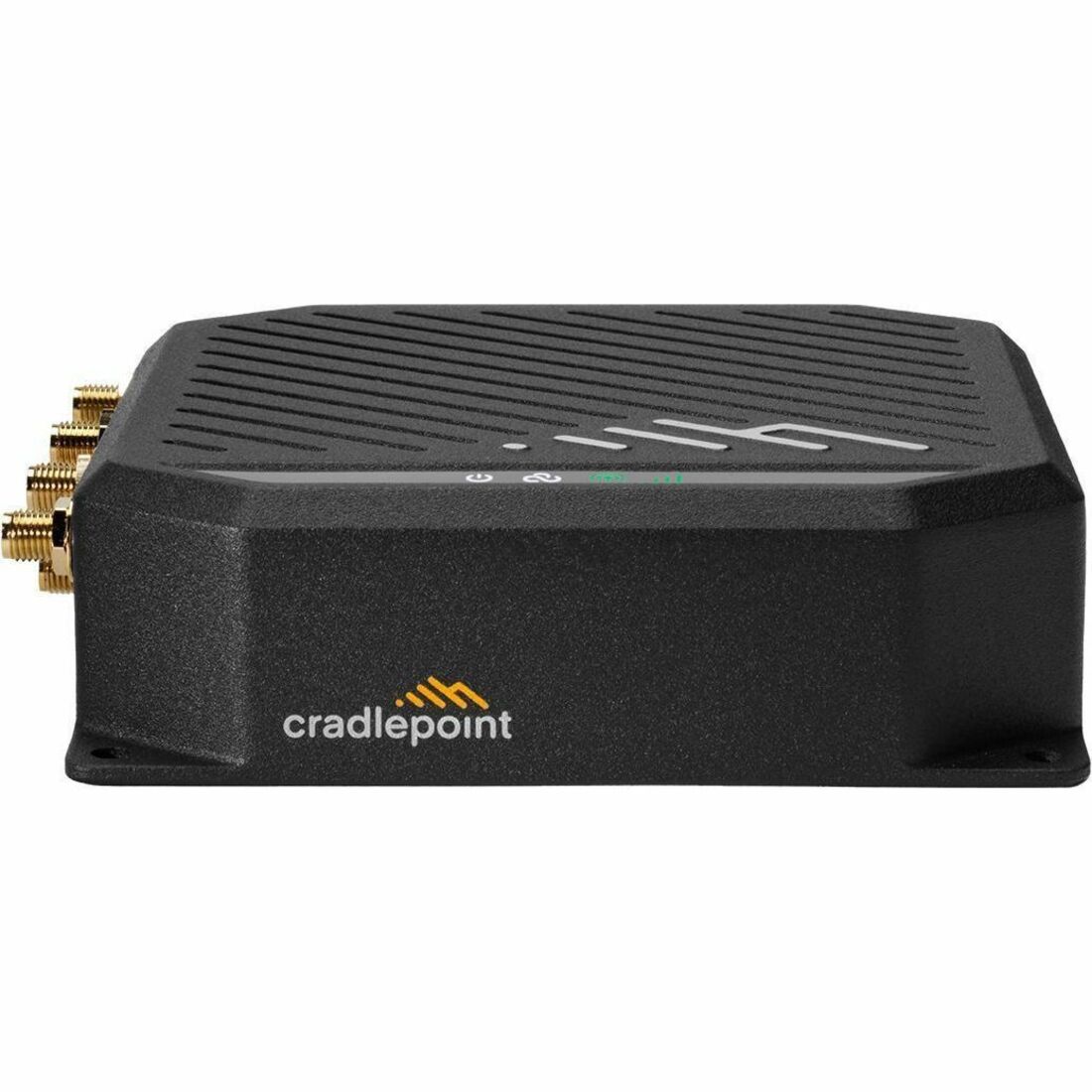

The Ericsson Cradlepoint S700 semi-ruggedized router for IoT networks as a semi-ruggedized, cloud-managed LTE router, built for light industrial, IoT, and portable applications where security is a foundational requirement. Offering connectivity through LTE plus wired and Wi-Fi options, the S700 accommodates a variety of use cases in high-availability, portable, or fixed uses. The S700 is available with IoT Ericsson NetCloud Service plans, which provide features optimized for each unique deployment.

Semi-Ruggedized IoT Solution

When coupled with the NetCloud IoT service plan, the S700 router provides a compact, semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. With an IP30-rated aluminum housing built to withstand vibration and temperature extremes and designed for DIN rail mounting, the S700 is ideal for use in light industrial applications such as oil and gas monitoring or in portable or fixed applications such as surveillance cameras, digital signs, and parallel networking. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.

Advanced, Cloud-Managed IoT Solution

For organizations requiring robust connectivity for IoT networks - with installed routers numbering from hundreds to many thousands - Ericsson's NetCloud Service for IoT with the S700 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and Out-of-Band Management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Ericsson's NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.

• Ethernet
• Cellular

• LTE 2100
• LTE 1900
• LTE 1800
• LTE 1700
• LTE 850
• LTE 2600
• LTE 900
• LTE 700
• LTE 800
• LTE 2300
• LTE 2500

• LTE
• WCDMA
• UMTS
• HSPA+
• DC-HSPA+
• LTE Cat 4

• WPA-Personal
• WPA2-Personal
• WPA3-Personal
• WPA2-ENT
• WPA3-ENT

• Portable
• DIN Rail Mountable

• S700-C4E Modem/Wireless Router
• GPIO and Power Cable, 2x2, 2 meters, 20 AWG
• Power Supply, 12 VDC, 2x2, 1.5 meters
• 2 x Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm
• 2 x Wi-Fi Antenna, 2.4/5 GHz RPSMA GRA 184 mm

• UL/cUL
• CB Scheme
• EN 62368-1
• SAE J1455-2006 Operating Sinusoidal Vibe, Category 2 Section 4.10.4.1
• EN 61373 Category 1, Class B (Railway rolling stock)
• FIPS 140-3 Level 1 Module in Process
• SAE J1455 Operating Sinusoidal Vibe, Category 2
• EN 61373 Category 2 (Vibration)
• MIL-STD-810H Method 514.8, Annex C-1, Category 4 (Vibration)
• MIL-STD-810H Method 516.8, Procedure 1 and V (Shock)
• MIL-STD-810H Method 516.8 4.6.6, Procedure V

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
