3YR NETCLOUD IOT ADV PLAN REQ CORR ESSEN PLAN

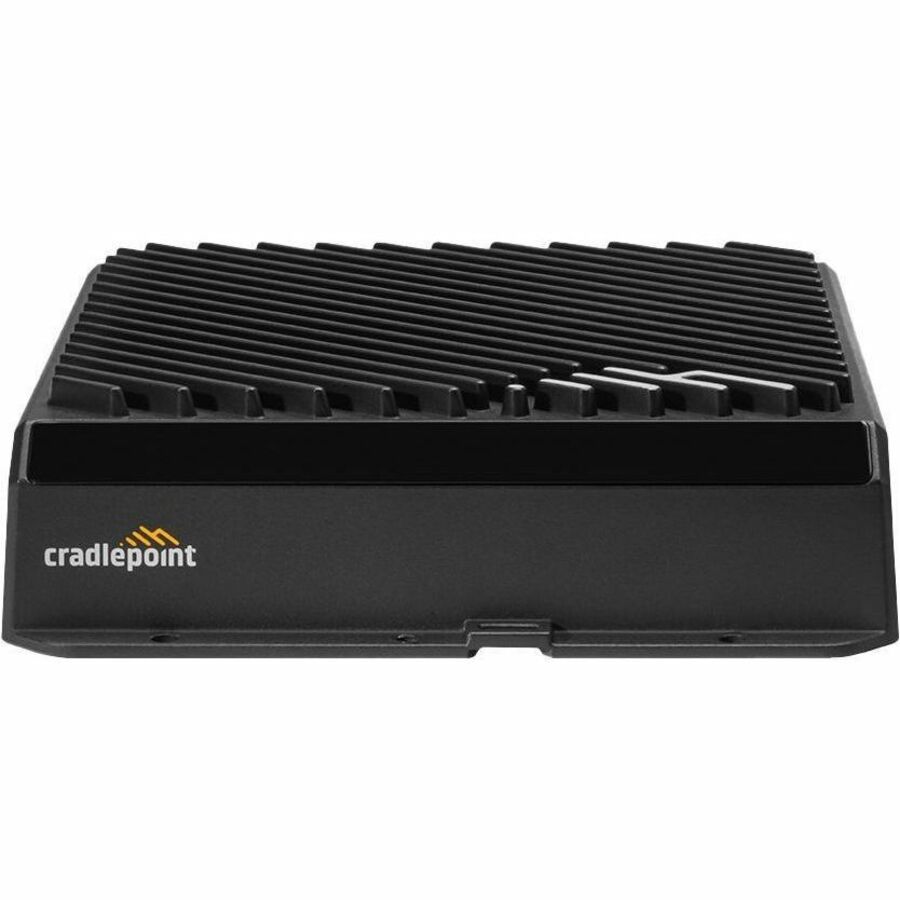

The Ericsson NetCloud Mobile Performance Service with the R1900 5G router is a ruggedized 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Ericsson NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle, while providing access to IT for remote management, troubleshooting, and analytics.

Ideal for High-Performance In-Vehicle Connectivity

For organizations that depend on field forces and mobile networks, the Ericsson Cradlepoint R1900 with the Ericsson NetCloud Mobile Performance Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Mobile Performance Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.

5G Embedded High-Performance Solution

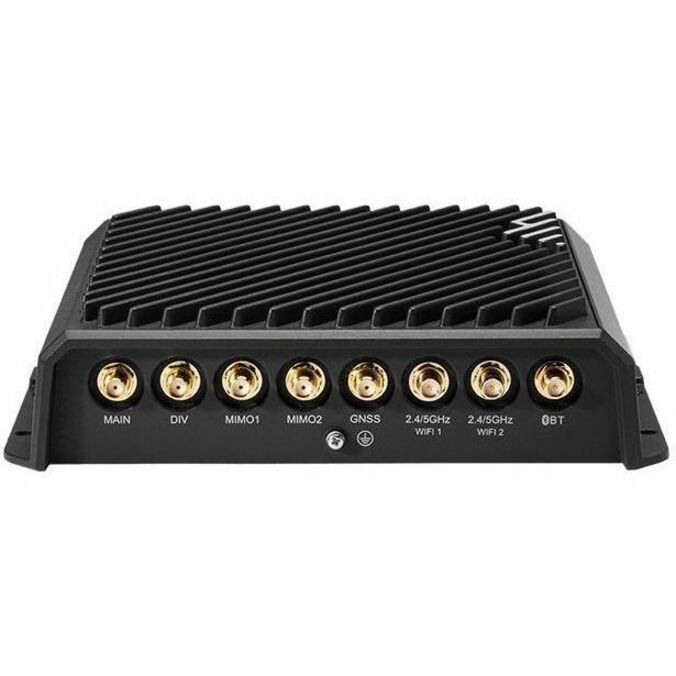

The R1900 mobile router includes an embedded 5G modem that can automatically connect to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 router is designed to accept the RX30 managed accessories which provide either four additional GbE PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Ericsson Cradlepoint 5G wideband adapter. These two capabilities, along with the continually improved Ericsson NetCloud platform, ensure the ability for future expansion and the best investment protection available.

• Cellular
• Ethernet

• LTE 1800
• LTE 1900
• LTE 2100
• LTE 1700
• LTE 850
• LTE 2600
• LTE 900
• LTE 700
• LTE 800
• LTE 2300
• LTE 1500
• LTE 600
• LTE 2000
• LTE 3500
• LTE 2500
• LTE 3700
• LTE 5200

• LTE
• LTE Advanced Pro
• WCDMA
• UMTS
• HSPA+
• 5G NR
• LTE Cat 20

• WPA-Personal
• WPA2-Personal
• WPA3-Personal
• WPA2-ENT
• WPA3-ENT

• R1900-5GB Modem/Wireless Router
• GPIO Cable, 2x2, 3 meters, 20AWG
• Mounting Screw Pack
• Mounting Template

• UL/cUL
• CB Scheme
• EN 60950-1
• EN 62368-1
• E-Mark
• SAE J1455
• EN 45545-2:2020 HL3
• EN 50121-3-2 (Power Surge 0.5 & 1 kV Criteria A; 1.5 kV Criteria C)
• EN 50155 Class S1
• MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration)
• NFPA 130
• BSS 7239
• Class I Div 2

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
