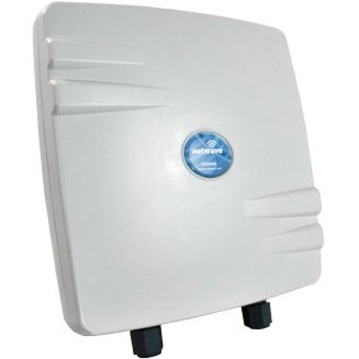

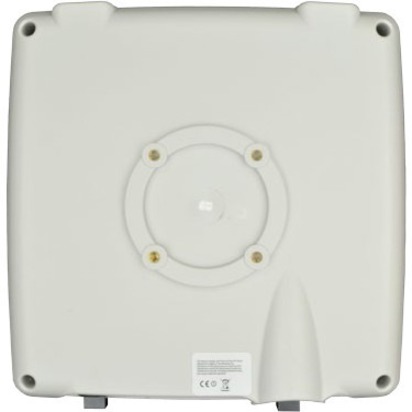

ComNet NetWave IEEE 802.11n 240 Mbit/s Wireless Access Point

The NetWave® NW10[E] Industrial Grade high performance wireless radio is ideal for high capacity and scalable deployments where channel overlapping and interference typically cause our discounted competitors radios to become unstable. The wide range of channel spectrum widths available on the NW10[E] series of radios gives you the option of narrowing channel bandwidths as your network grows which will increase the number of non-overlapping channels and improve stability. The NW10[E] comes standard with an integrated antenna and an IP67 rated impact resistant ABS enclosure that is designed to survive the most extreme conditions. The NW10 is FCC certified for use in North America and the NW10E is ETSI, DFS and TPC certified for use in the European Union.

Features for NW10 Series

• Narrow Channel Spectrum Widths for large and noisy deployments
• 5, 10, 20 and 40 Mhz Channel Bandwidth Support
• Up to 240 Mbps Throughput
• 802.11a/n Compliant
• Distances up to 2 mi (FCC) or 2km (ETSI)
• IEEE802.3at PoE Compliant PD on port 1
• IEEE802.3af power source (PSE) available on port 2
• Secure transmission: WPA2 - AES or TKIP encryption
• ComNet Antenna alignment feature eases installation and setup
• RF Spectrum Survey Tools
• Antenna Alignment Tools
• Status indicating LEDs provide rapid indication of critical operating parameters.
• Scalable - Narrow Channel 5 and 10 MHz Bandwidths will allow you to expand your WLAN without losing reliability by increasing the total number of non-overlapping channels
• Radio Internal Components covered by Lifetime Warranty
• Enclosure covered by Three Year Warranty
• Firmware upgrades included free for the life of the product
• Installation and Configuration Trainings Available
• Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

• High-Bandwidth Video Surveillance
• Multipurpose Networks
• ITS Applications

• Gigabit Ethernet
• Fast Ethernet

• Wall Mountable

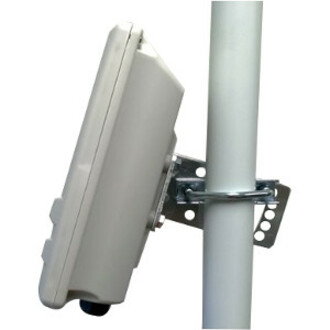

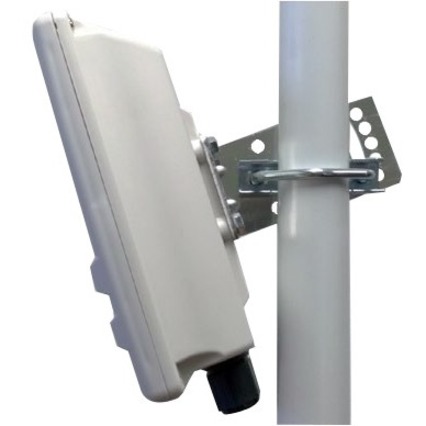

• Pole-mountable

• Industrially Hardened High Performance Wireless for High Density Environments
• Pole Mounting Hardware Kit
