ComNet Mini Video Transmitter/Data Transceiver

Name: ComNet Mini Video Transmitter/Data Transceiver
Brand: COMNET
SKU: 8PV812
Price: 1374.36 USD
Availability: InStock

COMNET

PCN#

8PV812

MFG#

FVT110M1/M

$1,374.36

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

ComNet Mini Video Transmitter/Data Transceiver

Tech Specs

Specifications

Manufacturer	ACRE
Manufacturer Part Number	FVT110M1/M
Manufacturer Website Address	http://www.acre-co.com
Brand Name	ComNet
Product Series	FVT/FVR110(M,S)1[M]
Product Name	Mini Video Transmitter/Data Transceiver

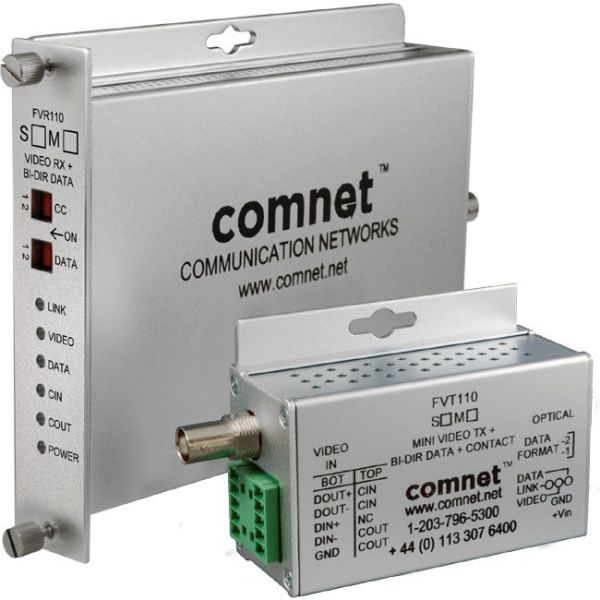

Marketing Information	The ComNet FVT/FVR110 series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km. The FVT/FVR110 supports Panasonic Proteus™ , Pelco Coaxitron™ and Bosch Bilinx™ Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal. Packaged in the exclusive ComNet ComFit housing, the full-size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Product Type	Transceiver/Media Converter

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm 1550 nm
Maximum Distance Supported	3 km
Fiber Optic Cable Core/Cladding Specification	62.5/125 µm

Power Description

Power Source

Physical Characteristics

Form Factor	Rail-mountable Rack-mountable
Height	1.5"
Width	2.5"
Depth	3.3"

Miscellaneous

Package Contents	Mini Video Transmitter/Data Transceiver DC Plug-in Power Supply
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
