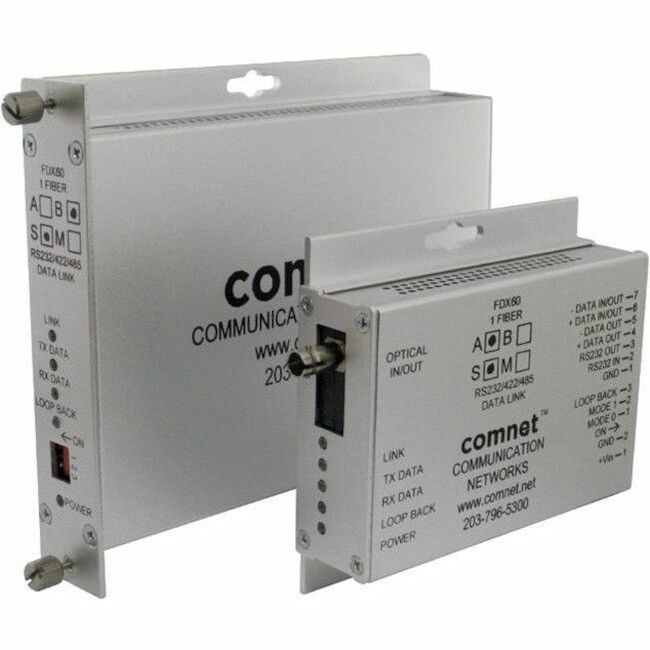

ComNet RS232/RS422/RS485 Data Transceiver

The ComNet FDX60 series data transceivers provide point-to-point transmission of simplex or duplex EIA RS232/RS422/RS485 (2W/4W) data signals over one or two optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. Models within this series are available for use with multimode or single mode optical fiber. The FDX60 has a built-in fiber link test feature that allows for the testing of the fiber.

Features

• Meets EIA RS232C/D and RS422/RS485 (2 or 4-wire) specifications
• Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
• NTCIP compatible
• Fiberlink Fiber Link Tester
• Wide optical dynamic range: optical attenuators are never required
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
• Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
• LED status indicators confirm operating status
• Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
• ComFit form factor allows the unit to be Interchangeable between stand-alone or rack mount use, or it can be DIN-rail mounted with optional DINBKT1 or DINBKT4 mounting kit.
• Hot-swappable rack modules
• FDX60-M has a small footprint and is designed for surface mounting
• Lifetime Warranty

APPLICATIONS

• Access Control Systems
• Building Automation and Environmental Control Systems
• Computer/Data Equipment
• Fire and Alarm Systems
• Traffic Signal Control Equipment

• Simplex
• Duplex

• 1310 nm
• 1550 nm

• DIN Rail Mountable
• Surface-mountable
• Rack-mountable

• RS232/RS422/RS485 Data Transceiver
• Power Supply
