DP1.4 MST HUB TO 2X HDMI 4K60HZ MIRROR OR EXTEND CONTENT TO 2X DISP

Name: DP1.4 MST HUB TO 2X HDMI 4K60HZ MIRROR OR EXTEND CONTENT TO 2X DISP
Brand: CLUB 3D
SKU: 8TP436
Price: 45.62 USD
Availability: InStock

CLUB 3D

PCN#

8TP436

MFG#

CSV-7200H

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$45.62

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

1 x 20
Pin DisplayPort 1.4 Digital Audio/Video
Male, 1 x USB Type A
Male
2 x 19
Pin HDMI 1.4 Type A Digital Audio/Video
Female, 1 x Micro USB Type B
Male, 1 x Micro USB
Female
3840 x 2160 Supported
Black
1

Product Condition: New and Factory Fresh

Limited Warranty24 Month

Shipping Weight: 1 lbs.

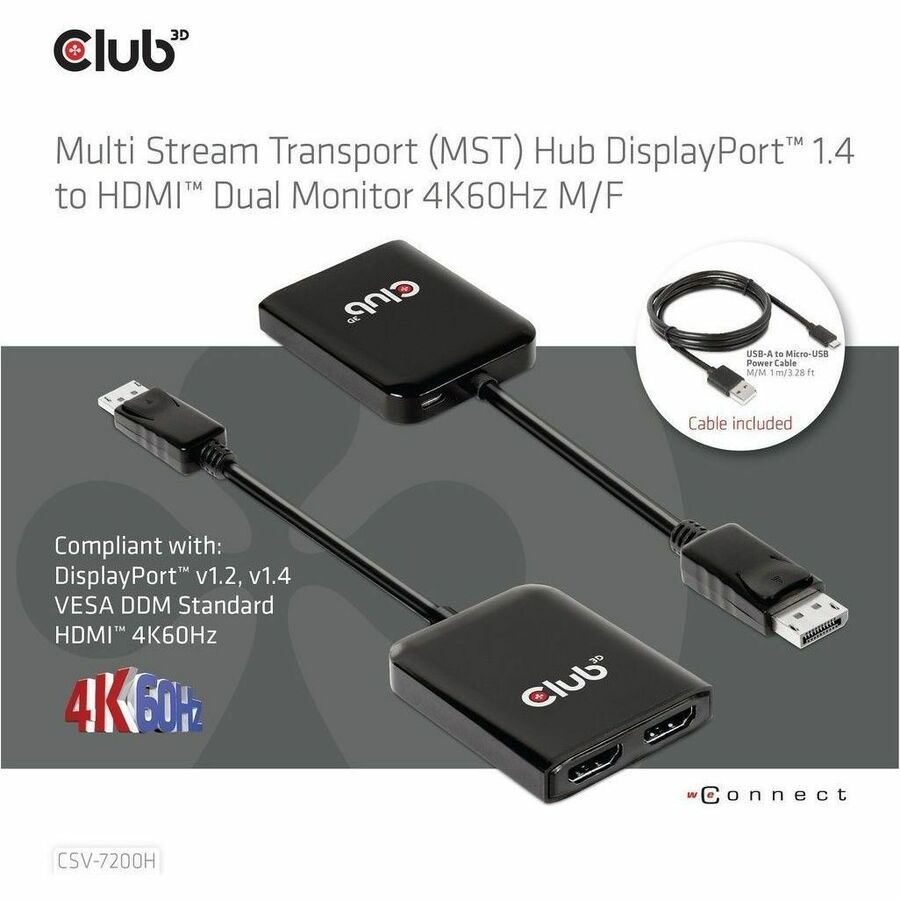

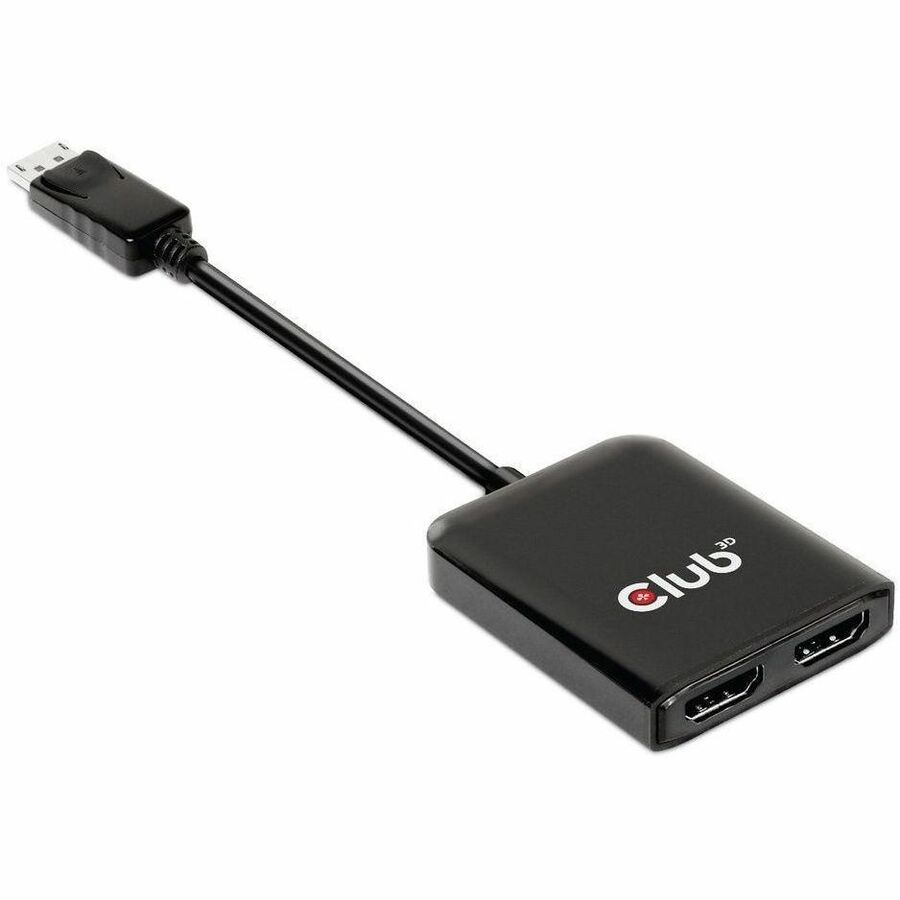

Club 3D Multi Stream Transport(MST)Hub DisplayPort™ 1.4 to HDMI™ Dual Monitor 4K60Hz M/F

Overview

Tech Specs

Specifications

Manufacturer	Club 3D
Manufacturer Part Number	CSV-7200H
Manufacturer Website Address	http://www.club-3d.nl
Brand Name	Club 3D
Product Name	Multi Stream Transport(MST)Hub DisplayPort™ 1.4 to HDMI™ Dual Monitor 4K60Hz M/F

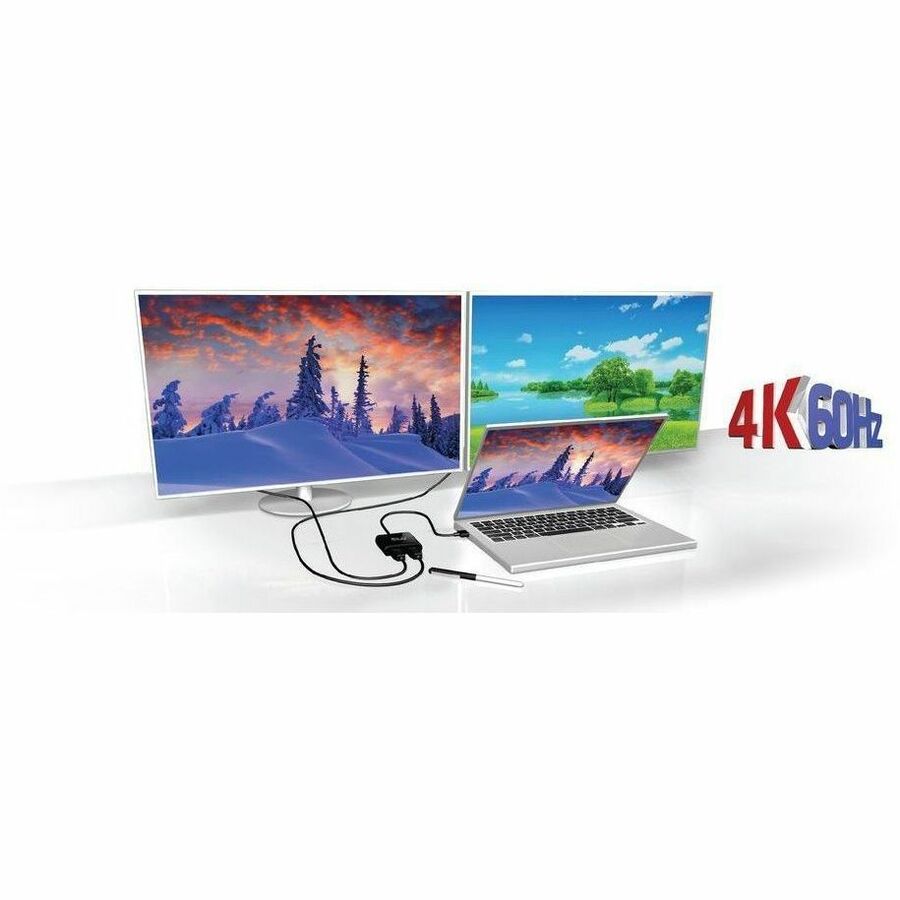

Marketing Information	The Club 3D CSV-7200H Multi Stream Transport (MST) Hub DisplayPort™ 1.4 to Dual HDMI™ 4K60Hz is an integrated solution that allows you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying the same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user's visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It is the perfect solution for host devices that feature DP1.2 /1.4 graphic cards for gaming and commercial applications.
Packaged Quantity	1
Packing	Box
Product Type	A/V Adapter

Technical Information

Adapter Type	DisplayPort/HDMI

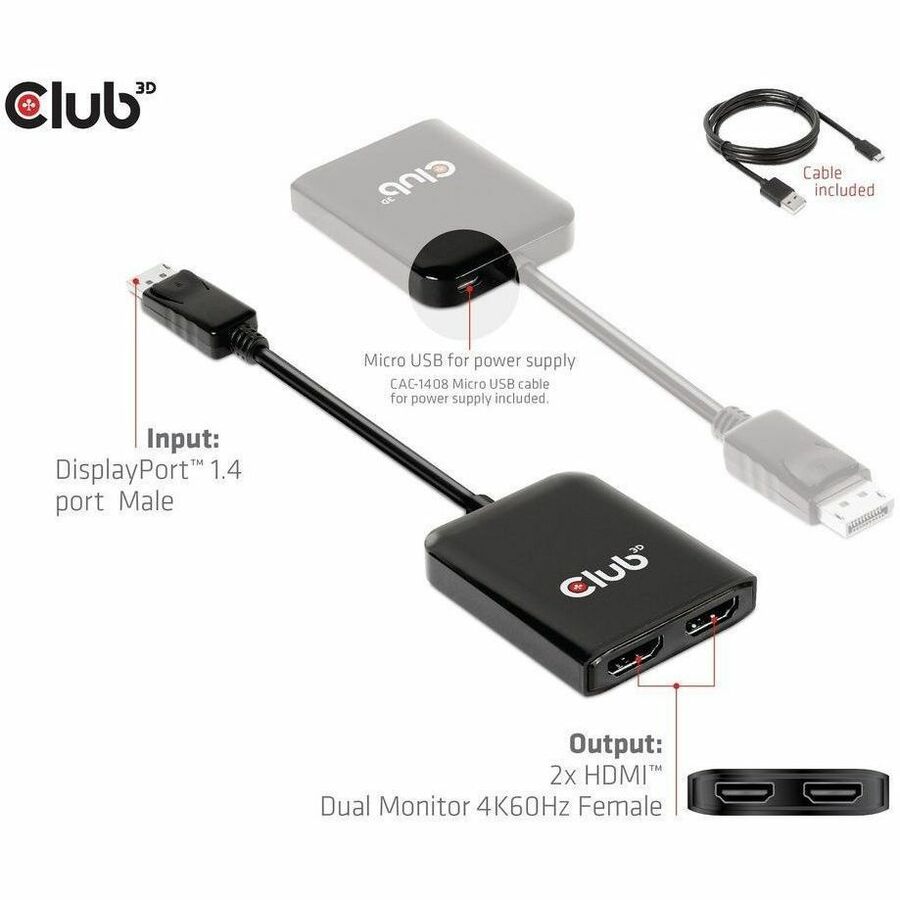

Connector Type on First End	DisplayPort 1.4 Digital Audio/Video - Male USB Type A - Male
Connector Gender on First End	Male
Connector on First End Details	1 x 20-Pin DisplayPort 1.4 Digital Audio/Video - Male 1 x USB Type A - Male
Connector Type on Second End	HDMI 1.4 Type A Digital Audio/Video - Female Micro USB Type B - Male Micro USB - Female
Connector Gender on Second End	Female
Connector on Second End Details	2 x 19-Pin HDMI 1.4 Type A Digital Audio/Video - Female 1 x Micro USB Type B - Male 1 x Micro USB - Female
Maximum Resolution Supported	3840 x 2160
Features	Multi-Stream Transport (MST) Support HDCP 1.4 HDCP 2.2 High Bit Rate 3 (HBR3) High Bit Rate 2 (HBR2) Display Stream Compression (DSC) 1.2 Plug and Play

Physical Characteristics

Color Family	Black
Product Color	Black

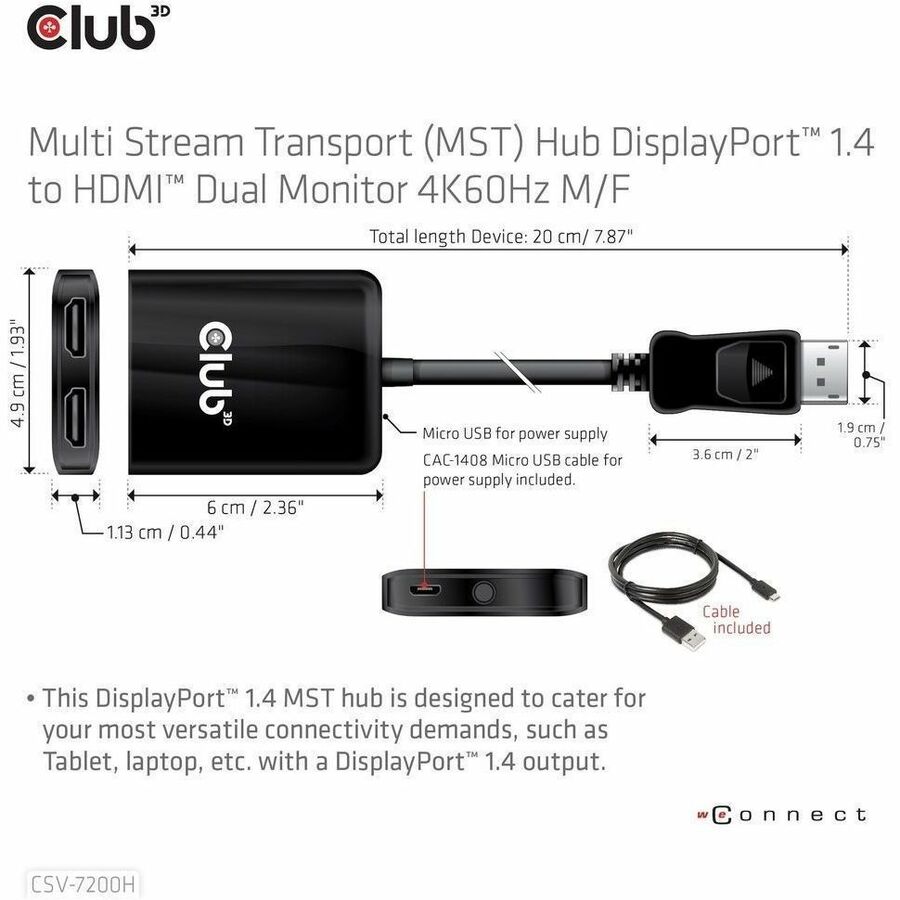

Height	0.4"
Width	2.4"
Depth	1.9"
Length	7.9"
Weight (Approximate)	3.84 oz

Miscellaneous

Package Contents	CSV-7200H, MST-Hub DisplayPort 1.4 to HDMI Dual 4K60Hz 1 x External Power Cable USB Type-A to Micro USB M/M
Operating System Compatibility	Windows 11
Device Supported	Monitor Audio/Video Device Display Graphics Card TV PC
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

24 Month
