USB4 TYPE C 6IN1 HUB 4K120HZ GEN3X2 HDMI 2XUSB-A RJ45 2XUSB-C

Name: USB4 TYPE C 6IN1 HUB 4K120HZ GEN3X2 HDMI 2XUSB-A RJ45 2XUSB-C
Brand: CLUB 3D
SKU: 08RX00
Price: 96.28 USD
Availability: InStock

CLUB 3D

PCN#

08RX00

MFG#

CSV-1599

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$96.28

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Desktop PC, Notebook, TV
Charging Capability
USB4 (Gen 3x2) Type C
8K @ 60Hz, 4K @ 120Hz, 4K @ 60Hz
7680 x 4320, 3840 x 2160
4 x USB Ports
2 x USB Type
A Ports
USB Type
A
2 x USB Type
C Ports
USB Type
C
1 x RJ
45 Ports
Network (RJ
45)
HDMI
Wired
2.5 Gigabit Ethernet
Windows, ChromeOS
100W

Product Condition: New and Factory Fresh

Limited Warranty24 Month

Shipping Weight: 1 lbs.

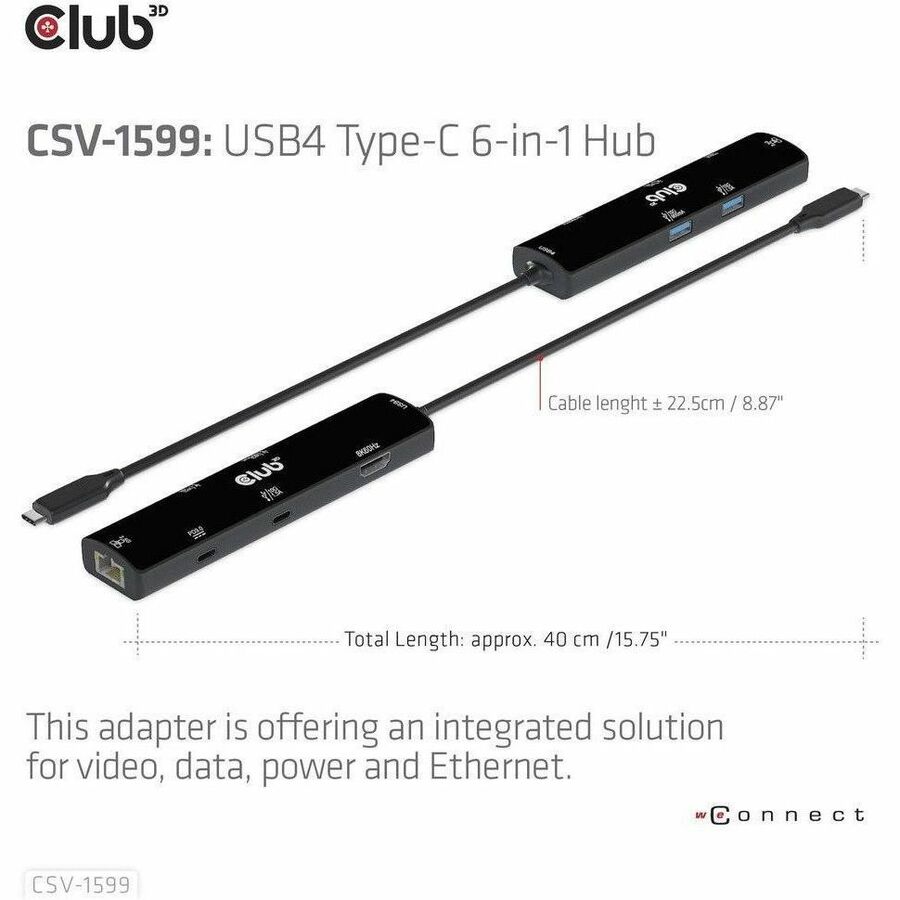

Club 3D CSV-1599 Docking Station

Overview

Tech Specs

Specifications

Manufacturer	Club 3D
Manufacturer Part Number	CSV-1599
Manufacturer Website Address	http://www.club-3d.nl
Brand Name	Club 3D
Product Model	CSV-1599
Product Name	CSV-1599 Docking Station

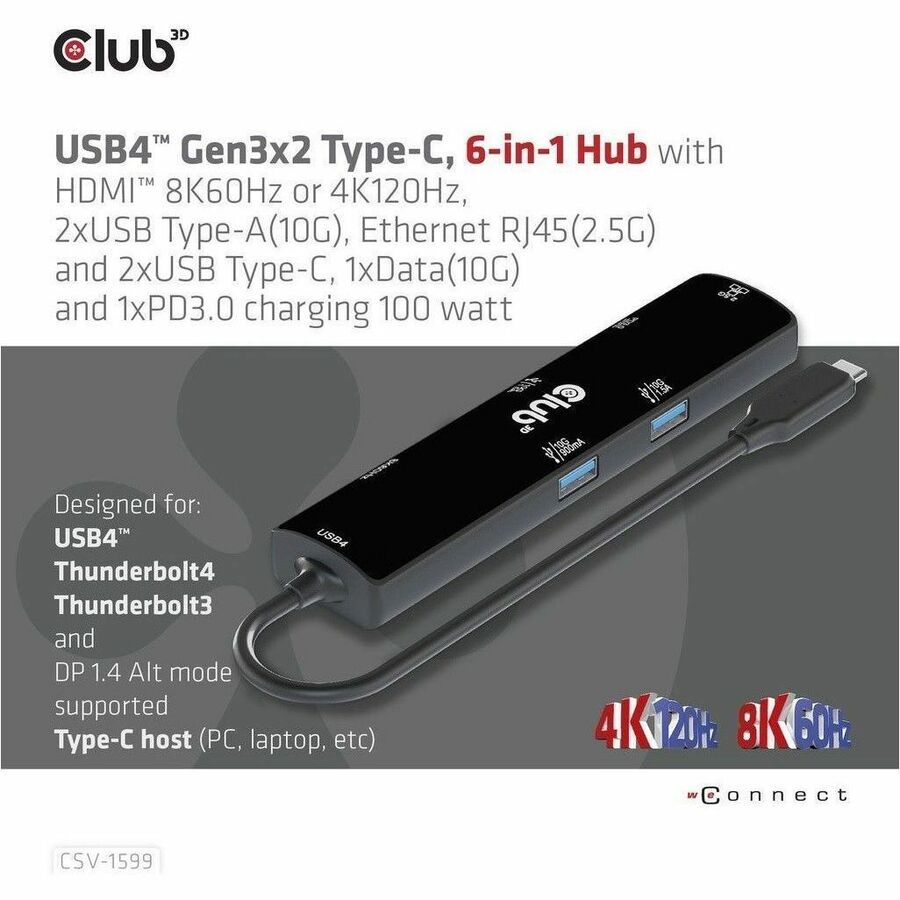

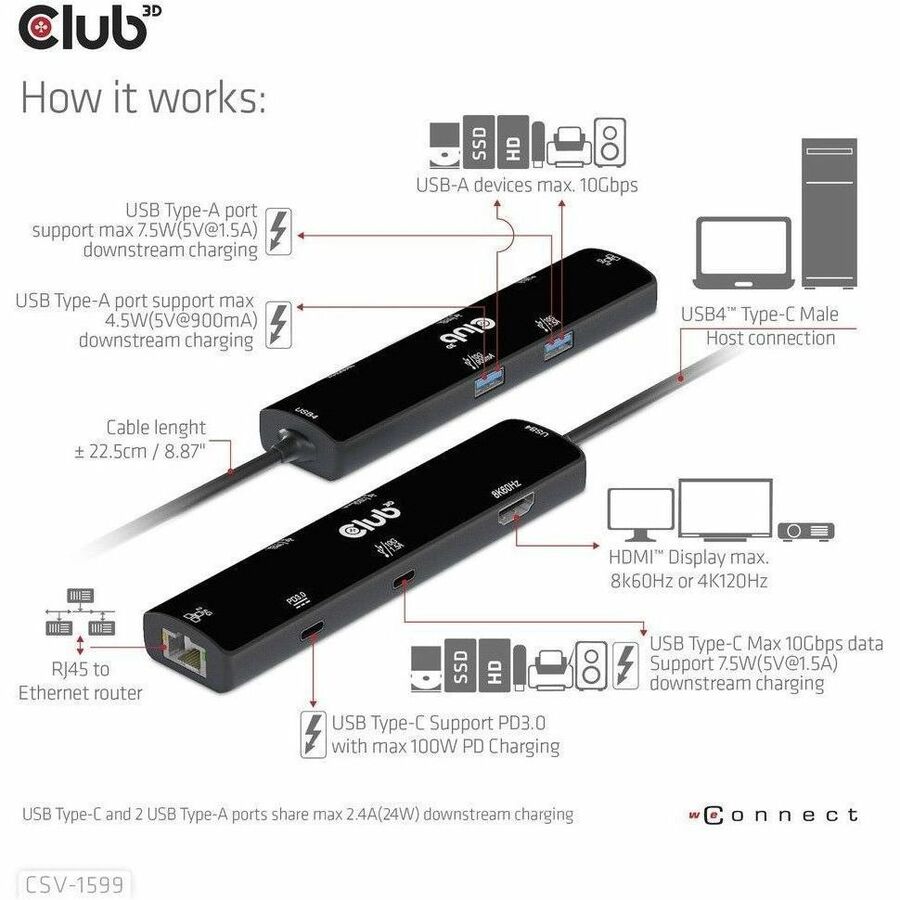

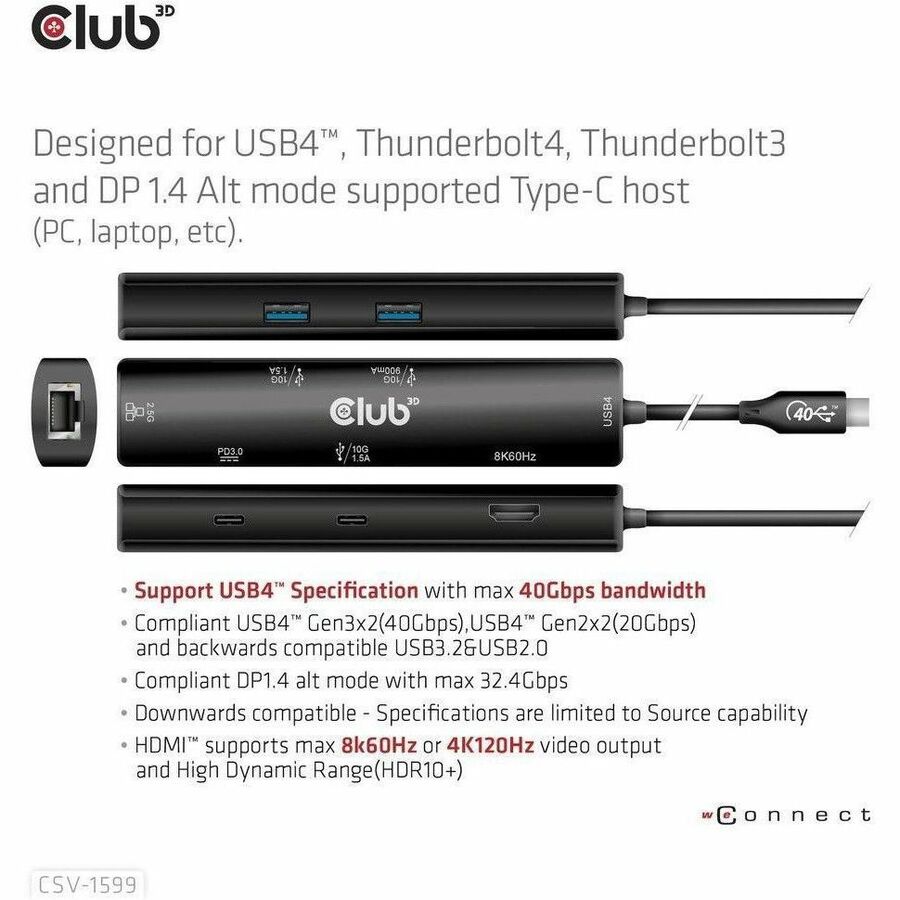

Marketing Information	The Club 3D CSV-1599 is a USB4™ Gen3x2 Type-C, 6-in-1 Hub with HDMI™ 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt, this adapter is offering an integrated solution for video, data, power and Ethernet. It has a HDMI™(8K60Hz) for video transmission, 3 USB data ports (2 USB-A 10G, 1 Type-C 10G)for data transmission, a 2.5Gbps Ethernet port for surfing on line. Besides, this adapter is equipped with Type-C PD3.0 Charging port with max 100W power supply. It can work on USB4™, Thunderbolt4, Thunderbolt3 and DP Alt mode (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Desktop PC Notebook TV
Features	Power Delivery Pass-through
Management Features	Wake-on-LAN
Screen Mode Supported	8K @ 60Hz 4K @ 120Hz 4K @ 60Hz
Supported Resolutions	7680 x 4320 3840 x 2160
Maximum Data Transfer Rate	1.25 GB/s

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

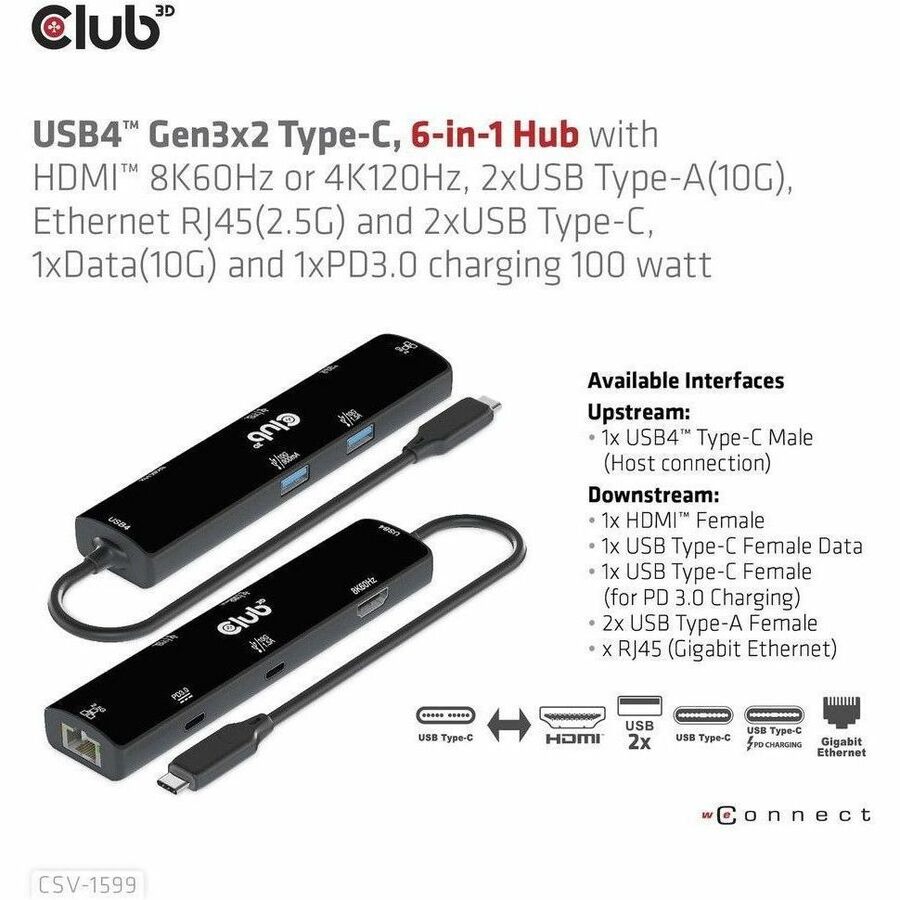

Interfaces/Ports

Host Interface	USB4 (Gen 3x2) Type C
Total Number of USB Ports	4
USB Type-A	Yes
Number of USB 3.2 Gen 2 Type-A Ports	2
Number of USB 3.2 Gen 2 Type-C Ports	1
Number of USB Type-A Ports	2
USB Type-C	Yes
USB Type-C Detail	1 x USB Type-C Female Data - Max 10Gbps data transmission, 1 x USB Type-C Female (for PD 3.0 Charging)
Number of USB Type-C Ports	2
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
HDMI	Yes
Number of HDMI Outputs	1
USB Power Delivery	100W

Software

Operating System Supported

Windows
ChromeOS

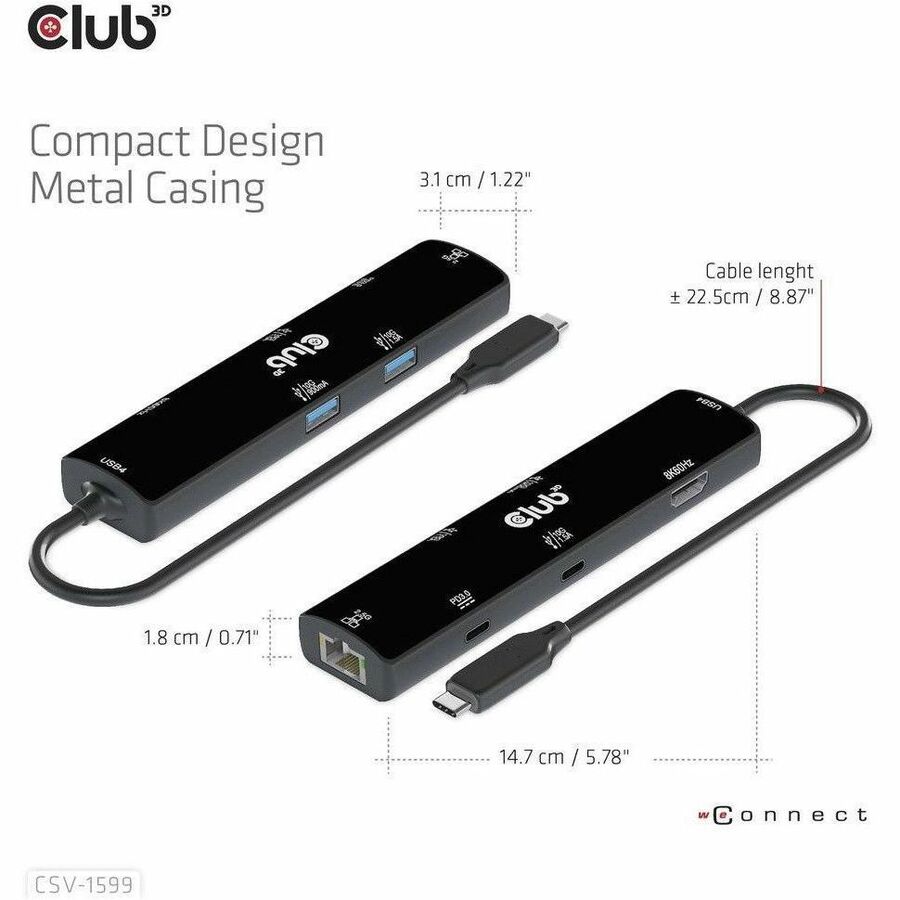

Physical Characteristics

Height	5.79"
Width	1.22"
Depth	0.71"
Weight (Approximate)	3.25 oz

Miscellaneous

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

24 Month
