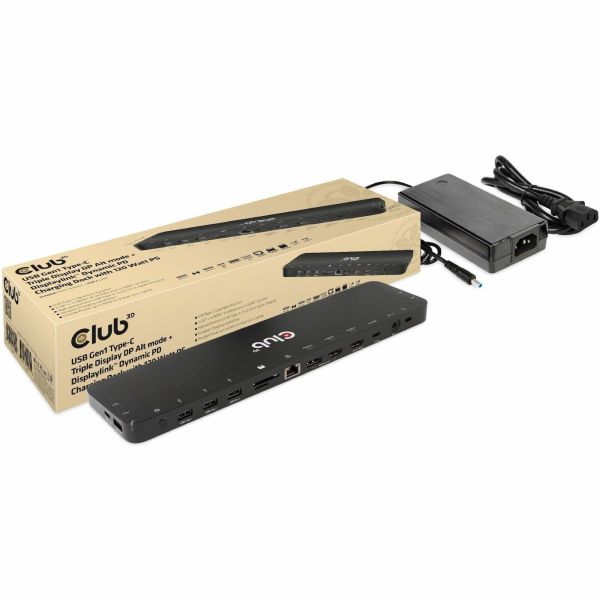

Club 3D CSV-1566 Docking Station

Name: Club 3D CSV-1566 Docking Station
Brand: CLUB 3D
SKU: 9VT147
Price: 192.11 USD
Availability: InStock

CLUB 3D

PCN#

9VT147

MFG#

CSV-1566

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$192.11

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Notebook/Smartphone/Monitor
Memory Card Reader
SD, microSD
120 W
USB Type C
4K
3840 x 2160
5 x USB Type
A Ports
USB Type
A
USB Type
C
1 x RJ
45 Ports
Network (RJ
45)
2 x HDMI Ports
HDMI
DisplayPort
Wired
Gigabit Ethernet
Windows, macOS

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

Club 3D CSV-1566 Docking Station

Overview

Tech Specs

Specifications

Manufacturer	Club 3D
Manufacturer Part Number	CSV-1566
Manufacturer Website Address	http://www.club-3d.nl
Brand Name	Club 3D
Product Model	CSV-1566
Product Name	CSV-1566 Docking Station
Marketing Information	The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio,video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile device(Apple,samsung phones, pads,etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts. Features: Support DP1.2 Alt mode and Displaylink™/ USB mode Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter)to be multiple video,data and power ports Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and window system HDMI™ 1 (DP™ Alt mode) supports max 4K/30Hz HDMI™ 2 (USB mode) supports max 4K/60Hz DP™(USB mode) support max 4K/60Hz Support DP++ Support smart charging with max 5V/2.4A Support Gigabit Ethernet to get access to super fast network Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously Support audio in and out Support max 120W DC power in and bypass 80W to host Short-circuit, over-current, over-voltage protection
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Device Supported	Notebook/Smartphone/Monitor
Memory Card Reader	Yes
Memory Card Supported	SD microSD
Screen Mode Supported	4K
Supported Resolutions	3840 x 2160

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Host Interface	USB Type C
Number of USB Type-A Ports	5
USB Type-A	Yes
USB Type-C	Yes
USB Type-C Detail	1 Type-C Female for Connecting to Host
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
DisplayPort	Yes
DisplayPort Version	1.2++
Headphone/Microphone Combo Port	Yes
Number of HDMI Ports	2
HDMI	Yes

Software

Operating System Supported

Windows
macOS

Power Description

Maximum Power Supply Wattage

120 W

Physical Characteristics

Height	11.97"
Width	3.03"
Depth	0.71"
Weight (Approximate)	12.63 oz

Miscellaneous

Package Contents	CSV-1566 Docking Station PowerSupply Plugs USB Gen2 Type-C Cable 10G, 20V5A M/M, 1 m / 3.28 ft Quick Install Guide
Brand Compatibility	Apple Samsung
Environmentally Friendly	Yes
