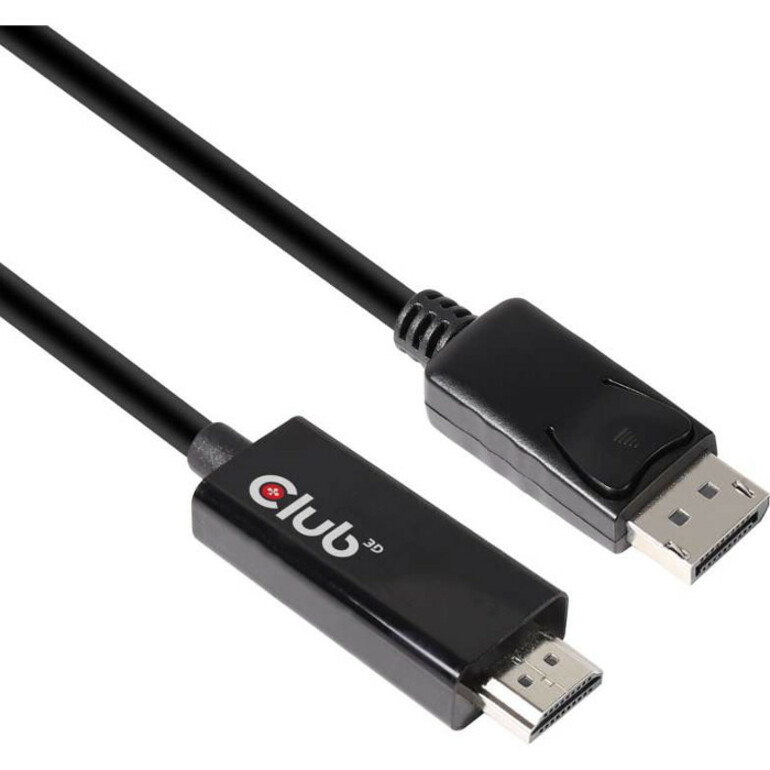

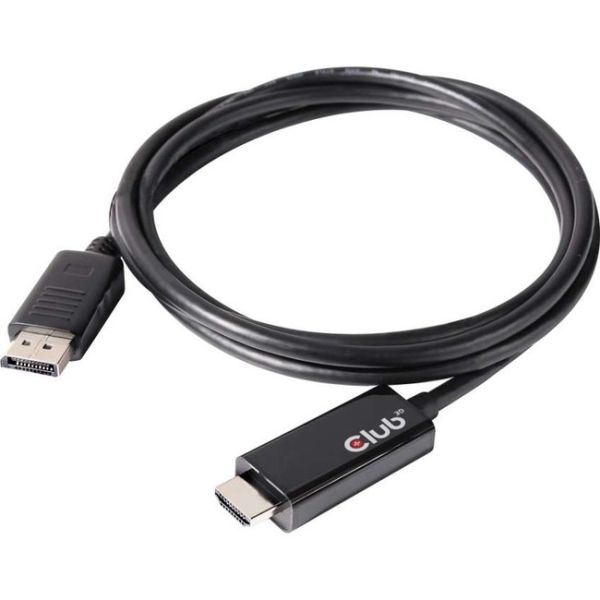

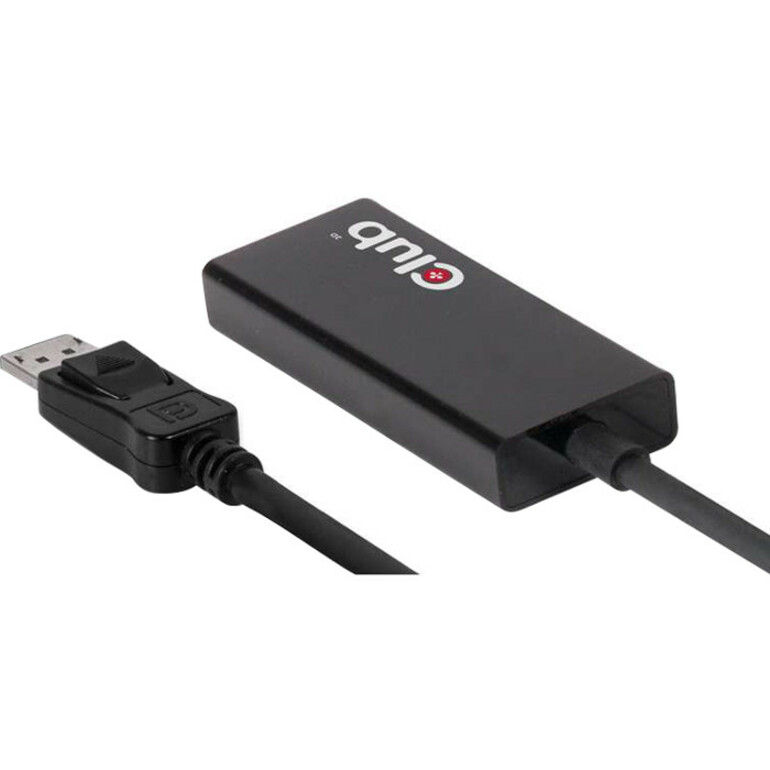

Club 3D DisplayPort 1.4 Cable To HDMI 2.0b Active Adapter Male/Male 2m/6.56 ft

Name: Club 3D DisplayPort 1.4 Cable To HDMI 2.0b Active Adapter Male/Male 2m/6.56 ft
Brand: CLUB 3D
SKU: 5TU698
Price: 41.04 USD
Availability: InStock

CLUB 3D

PCN#

5TU698

MFG#

CAC-1082

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$41.04

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

6.56 ft DisplayPort/HDMI A/V Cable for Audio/Video Device, Transmitter
First End: 1 x DisplayPort 1.4 Digital Audio/Video
Male
Second End: 1 x HDMI 2.0b Digital Audio/Video
Male
5.4 Gbit/s
Supports up to 4096 x 2160

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Club 3D DisplayPort 1.4 Cable To HDMI 2.0b Active Adapter Male/Male 2m/6.56 ft

Overview

Tech Specs

Specifications

Manufacturer	Club 3D
Manufacturer Part Number	CAC-1082
Manufacturer Website Address	http://www.club-3d.nl
Brand Name	Club 3D
Product Name	DisplayPort 1.4 Cable To HDMI 2.0b Active Adapter Male/Male 2m/6.56 ft
Marketing Information	CAC-1082 - The Club3D CAC-1082 is a DisplayPort 1.4 to HDMI 2.0b signal converter cable. It features support for HDR Video quality for deep color media content playback. The DisplayPort receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI output is fully compliant to HDMI specification version 2.0b. Supports up to 4K UHD Resolutions The CAC-1082 supports UHD resolutions up to 4096 x 2160p at 60Hz. Color Formats It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort and HDMI link bandwidth. The CAC-1082 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI output with a horizontal expansion to CEA timings.
Product Type	A/V Cable

Technical Information

Cable Type	DisplayPort/HDMI

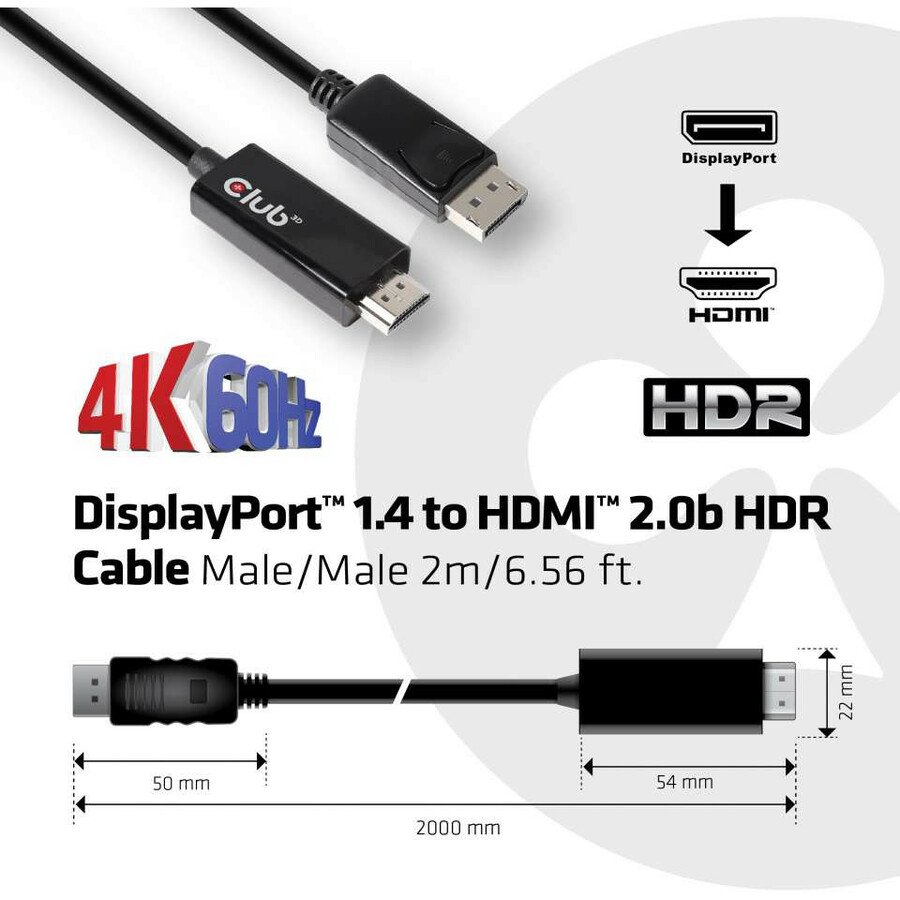

Cable Length	6.56 ft
Connector Type on First End	DisplayPort 1.4 Digital Audio/Video - Male
Connector on First End Details	1 x DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End	HDMI 2.0b Digital Audio/Video - Male
Connector on Second End Details	1 x HDMI 2.0b Digital Audio/Video - Male

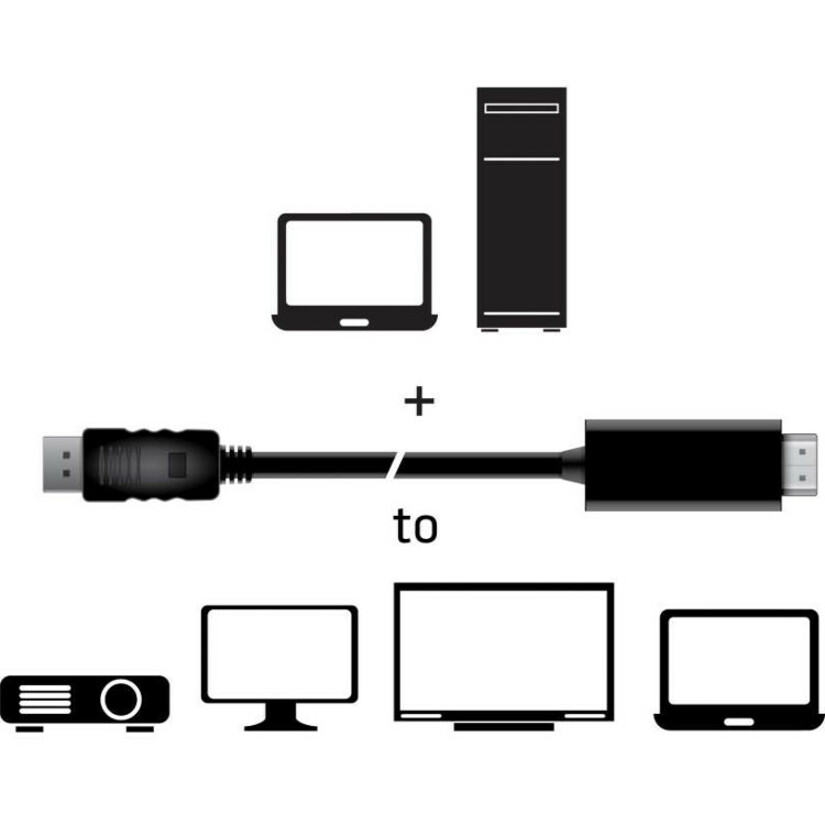

Device Supported	Audio/Video Device Transmitter
Data Transfer Rate	5.4 Gbit/s
Supported Resolution	4096 x 2160
Features	HDCP 2.2 EMI Protection Consumer Electronics Control (CEC) Active

Physical Characteristics

Weight (Approximate)

0.19 lb

Miscellaneous

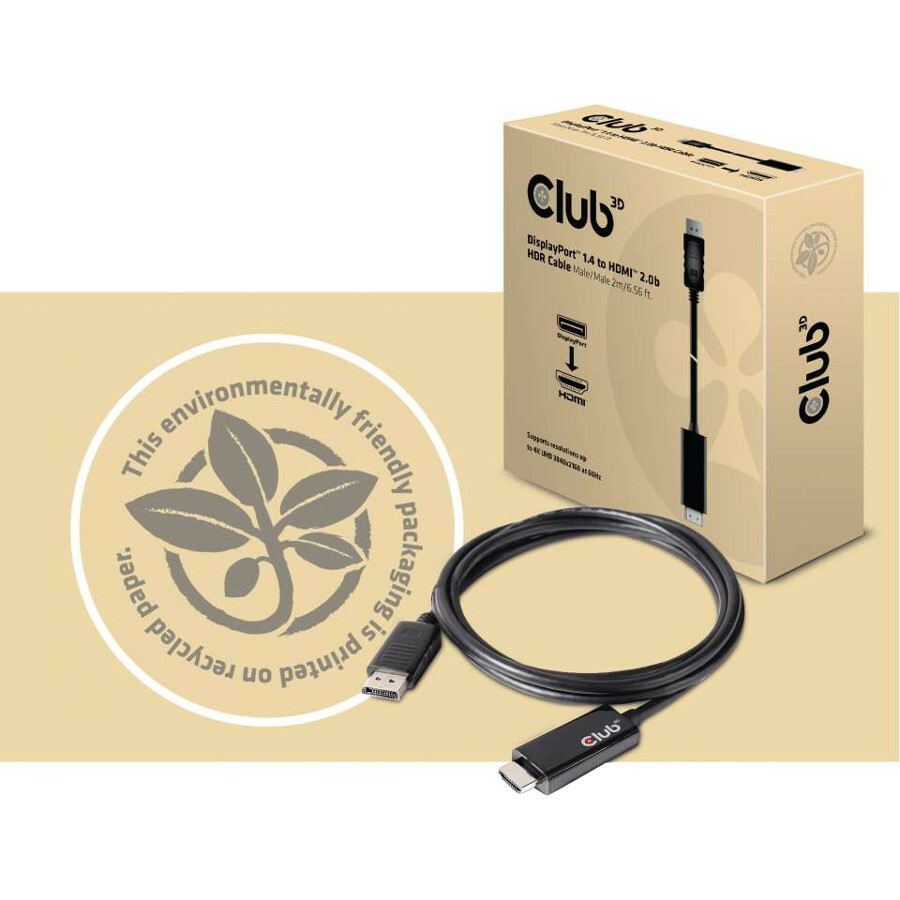

Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	China
TAA Compliant	No
