Club 3D DisplayPort 1.4 to HDMI 2.0a HDR

Name: Club 3D DisplayPort 1.4 to HDMI 2.0a HDR
Brand: CLUB 3D
SKU: 9V2807
Price: 29.62 USD
Availability: InStock

CLUB 3D

PCN#

9V2807

MFG#

CAC-1080

$29.62

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $9.99

1-Year $7.99

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Club 3D DisplayPort 1.4 to HDMI 2.0a HDR

Tech Specs

Specifications

Manufacturer	Club 3D
Manufacturer Part Number	CAC-1080
Manufacturer Website Address	http://www.club-3d.nl
Brand Name	Club 3D
Product Name	DisplayPort 1.4 to HDMI 2.0a HDR
Marketing Information	CAC-1080 - The Club3D CAC-1080 is a DisplayPort™ 1.4 to HDMI™ 2.0a active signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0a. The CAC-1080 is downwards compatible to earlier Displayport™ and HDMI™ versions, but this can influence the functionality and/or supported features such as HDR. Resolution Support The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz. Color Formats It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Product Type	A/V Cable

Technical Information

Cable Type	DisplayPort/HDMI

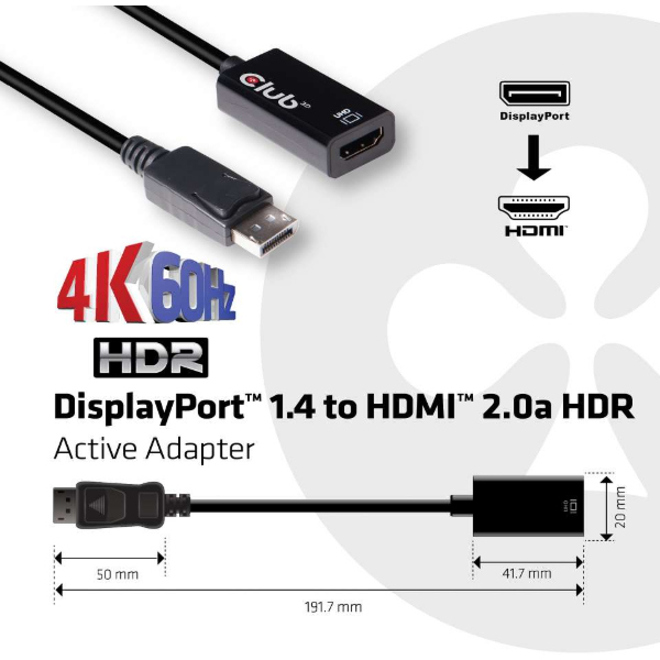

Cable Length	7.52"
Connector Type on First End	HDMI 2.0a Digital Audio/Video - Female
Connector on First End Details	1 x 19-pin HDMI 2.0a Digital Audio/Video - Female
Connector Type on Second End	DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details	1 x DisplayPort 1.4 Digital Audio/Video - Male
Device Supported	Audio/Video Device
Data Transfer Rate	5.4 Gbit/s
Supported Resolution	4096 x 2160
Features	Active Repeater

Physical Characteristics

Product Color	Black
Weight (Approximate)	0.07 lb

Miscellaneous

Environmentally Friendly	Yes
Country of Origin	China
