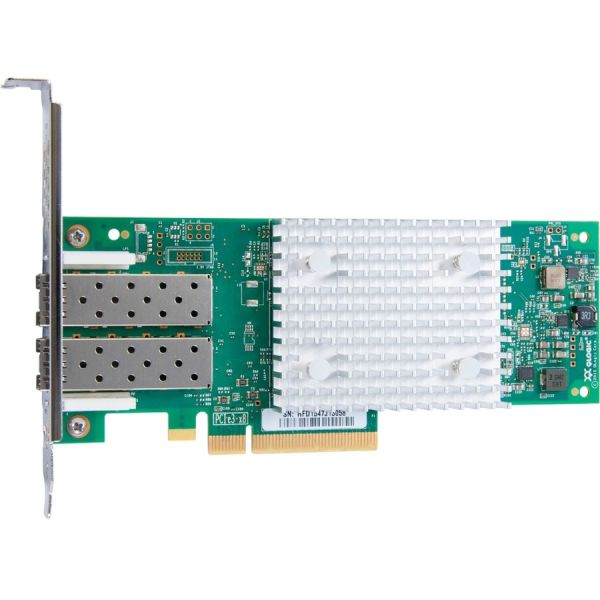

Cisco QLogic QLE2742-CSC Dual-port Gen 6 Fibre Channel Adapter

Name: Cisco QLogic QLE2742-CSC Dual-port Gen 6 Fibre Channel Adapter
Brand: CISCO
SKU: 9Y6228
Price: 2956.55 USD
Availability: InStock

CISCO

PCN#

9Y6228

MFG#

UCSC-PCIE-QD32GF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,956.55

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

PCI Express 3.0 x8
8 Gbit/s, 16 Gbit/s, 32 Gbit/s
2 x Total Fibre Channel Port(s)
Plug
in Card

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Cisco QLogic QLE2742-CSC Dual-port Gen 6 Fibre Channel Adapter

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCSC-PCIE-QD32GF=
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Name	QLogic QLE2742-CSC Dual-port Gen 6 Fibre Channel Adapter
Marketing Information	The QLogic QLE2742-CSC dual-port Gen 6 Fibre Channel Host Bus Adapter boasts industry leading native FC performance with extremely low CPU usage with full hardware offloads. 32GFC TECHNOLOGY The FC solution from QLogic provides the industry's leading Gen 6 adapter. The QLogic FC solution offers higher per-port performance (up to 650K IOPS) with low power consumption. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency with built-in forward error correction (FEC). StorFusion addresses the needs of IT organizations that require reliability, integrated management, and guaranteed network performance. The 32GFC technology resolves data center complexities by enabling a storage network infrastructure that supports powerful virtualization features, application-aware services, and simplified management. The QLE2742-CSC Adapter provides advanced storage networking features capable of supporting the most demanding virtualized and private cloud environments. This adapter fully leverages the capabilities of highperformance 32GFC, all-flash arrays (AFAs), and demanding enterprise applications. Powerful management tools automate and simplify SAN provisioning to help reduce cost and complexity, while the unmatched Gen 6 performance eliminates potential I/O bottlenecks in today's powerful multiprocessor, multicore servers. SUPERIOR PERFORMANCE The QLE2742-CSC Adapter can accelerate mission-critical enterprise applications by delivering up to 1.3 million IOPS for physical, virtual, and private cloud environments. QLogic adapters deliver the application performance in virtualized and non-virtualized environments with up to 650K I/O transactions per second, per port. VIRTUALIZATION OPTIMIZED The QLE2742-CSC Adapter supports standards-based virtualization features. Support for N_Port ID virtualization (NPIV) enables a single FC adapter port to provide multiple virtual ports for increased network scalability. Standard class-specific control (CS_CTL)-based QoS technology per NPIV port allows bandwidth controls and guarantees per virtual machine (VM). In addition, the 32GFC line rate per physical port delivers unmatched storage performance to maximize the quantity of VMs per physical server.
Packing	Box
Package Type	Bulk
Product Type	Fibre Channel Host Bus Adapter

Technical Information

Total Number of Fibre Channel Ports	2
Host Interface	PCI Express 3.0 x8

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Data Transfer Rate	8 Gbit/s 16 Gbit/s 32 Gbit/s

Physical Characteristics

Form Factor	Plug-in Card
Card Height	Low-profile
Height	2.7"
Width	6.6"

Miscellaneous

Compatibility	Cisco (C220 M4, C240 M4, and C460 M4) UCS C-Series Rack Servers Cisco FC SAN Switches: UCS-EP-MDS9148S-16: MDS 9148S 16G FC switch, with 12 active ports and 16G SW SFPs UCS-EP-MDS9148SL2: MDS 9148S 16G FC 12-port upgrade license and 16G SW SFPs UCS-EP-MDS9396S-16: Cisco MDS 9396S 16G switch; 48 enabled ports, 48 × 16G SW SFP UCS-EP-MDS9396SL2: Cisco MDS 9396S 12-port license with 12 × 16G SW SFP+
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
