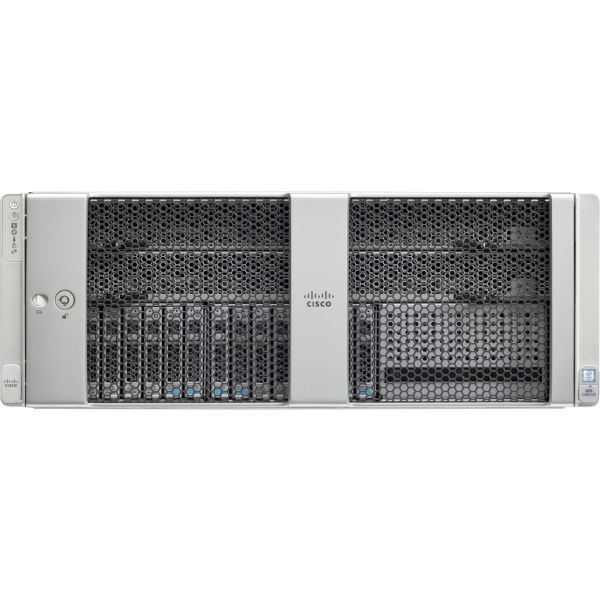

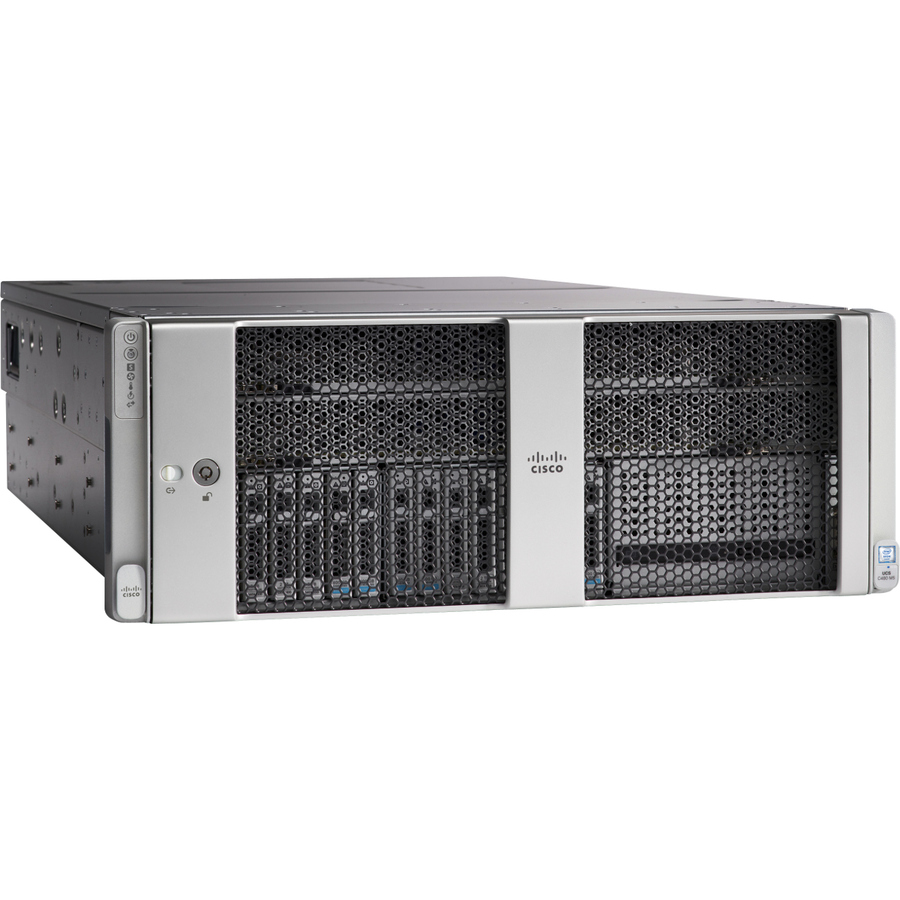

Cisco Barebone System - 4U Rack-mountable - 4 x Processor Support

Name: Cisco Barebone System - 4U Rack-mountable - 4 x Processor Support
Brand: CISCO
SKU: 5PD248
Price: 10249.98 USD
Availability: InStock

CISCO

PCN#

5PD248

MFG#

UCSC-C480-M5=

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$10,249.98

Extended & Accidental Damage Protection Plans Available Details

2-Year $892.99

3-Year $1,226.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C620 Chip
6 TB DDR4 SDRAM DDR4
2933/PC4
23466 Maximum RAM Support
48.0 Total Memory Slots
Serial ATA, 12Gb/s SAS Controller
256 MB Graphic(s)
Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze)
10 Gigabit Ethernet, Gigabit Ethernet
Intel Optane Memory Ready
3 USB 3.0 Port(s)
1600 W

Product Condition: New and Factory Fresh

Shipping Weight: 40 lbs.

Cisco Barebone System - 4U Rack-mountable - 4 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCSC-C480-M5
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C480 M5
Product Name	UCS C480 M5 Barebone System
Marketing Information	The Cisco UCS C480 M5 High-Performance Rack Server is a four-rack-unit (4RU) server supporting the Intel® Xeon® processor scalable family CPUs, with up to 6 terabytes (TB) of double-data-rate 4 (DDR4) memory1 in 48 slots, and up to 32 small form factor (SFF), hot-swappable2 SAS/SATA/PCIe NVMe disk drives. 12 PCI Express (PCIe) expansion slots support Cisco UCS C-Series network adapters storage controllers, and up to 6 GPUs, with additional I/O provided by two 10GBase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card.
Product Type	Barebone System

Processor

Number of Processors Supported	4
Processor Supported	Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C620

Memory

Maximum Memory Supported	6 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2933/PC4-23466
Total Number of Memory Slots	48.0
Intel Optane Memory Ready	Yes

Controllers

Controller Type

Serial ATA
12Gb/s SAS

Display & Graphics

Graphics Memory Capacity

256 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Total Number of Expansion Slots	12.0
Number of PCI Express x8 Slots	6
Number of PCI Express x16 Slots	6

Interfaces/Ports

Total Number of USB Ports	3
Number of USB 3.0 Ports	3

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	1600 W

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	4U
Height	6.9"
Width	19"
Depth	32.7"
Weight (Approximate)	146 lb

Miscellaneous

Country of Origin

United States
