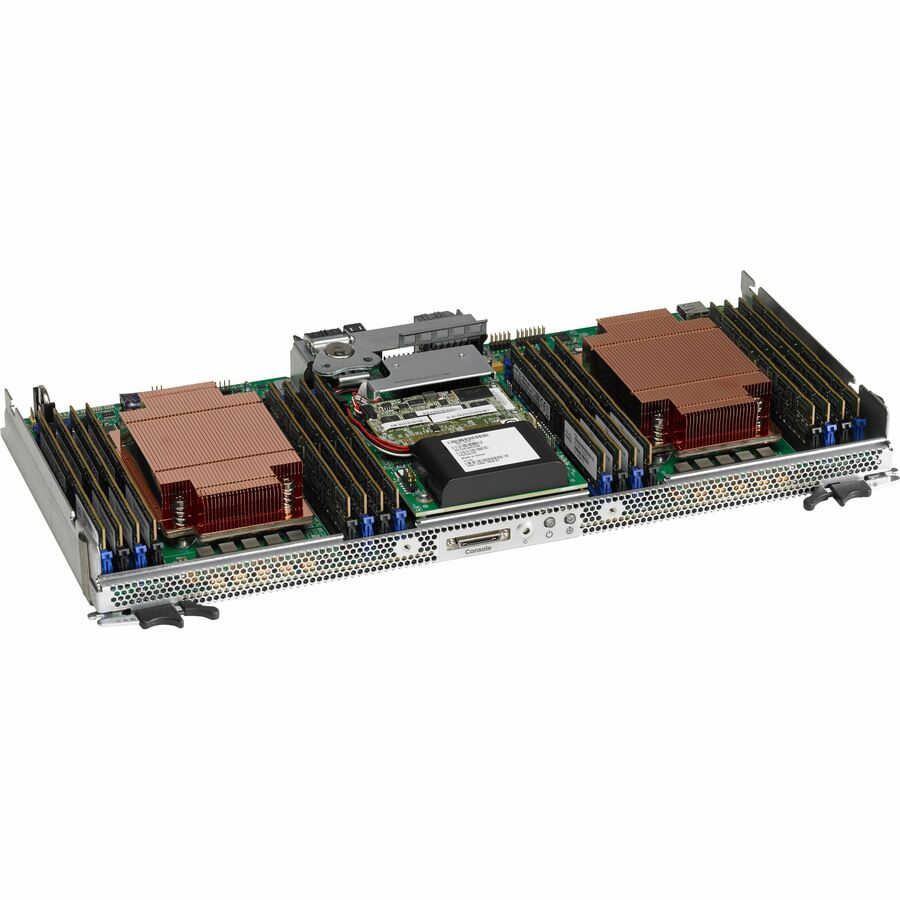

C3X60 SERVER NODE E5-2620 V2 CPU 6C 256G HBA

Name: C3X60 SERVER NODE E5-2620 V2 CPU 6C 256G HBA
Brand: CISCO
SKU: 3N0401
Price: 8881.39 USD
Availability: InStock

CISCO

PCN#

3N0401

MFG#

UCSC-C3X60-SVRN8

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$8,881.39

Extended & Accidental Damage Protection Plans Available Details

2-Year $462.99

3-Year $582.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C600 Chip
2 Processor Support
512 GB RAM Support
DDR3L SDRAM
0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels
Gigabit Ethernet
58 x Total Bay(s)
2 x SFF Bay(s)
56 x LFF Bay(s)
Hot Swappable Bays
4 x 1050 W
Redundant Power Supply

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year parts coverage. Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media.

Shipping Weight: 40 lbs.

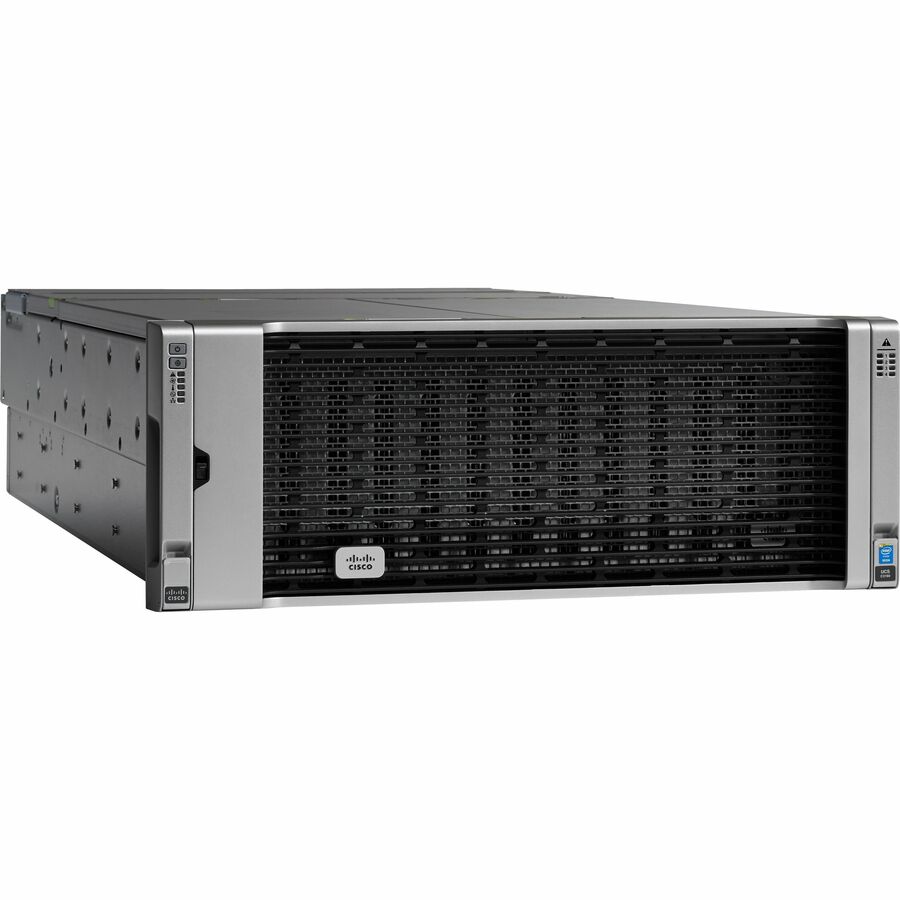

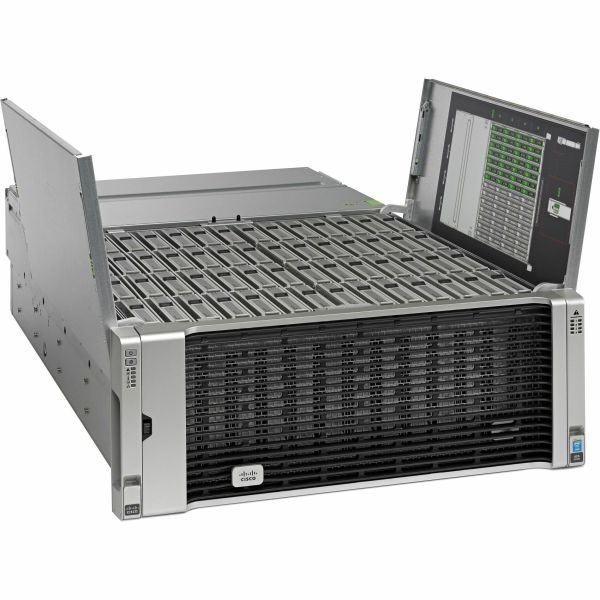

Cisco C3160 4U Rack Server - 2 x Intel Xeon E5-2620 v2 2.10 GHz - 256 GB RAM - 240 GB SSD - (2 x 120GB) SSD Configuration - 12Gb/s SAS, Serial ATA/600 Controller

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCSC-C3X60-SVRN8=
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C3160
Product Name	UCSC C3X60 Server
Marketing Information	The Cisco UCS C3160 is a modular, dense storage rack server, optimized for large datasets used in environments such as cloud, object storage and content delivery.
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	2
Processor Manufacturer	Intel
Processor Type	Xeon
Processor Model	E5-2620 v2
Processor Core	Hexa-core (6 Core)
Processor Speed	2.10 GHz
Cache	15 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C600

Memory

Standard Memory	256 GB
Maximum Memory Supported	512 GB
Memory Technology	DDR3L SDRAM
Memory Clock Speed	1.87 GHz
Error Checking	ECC
Total Number of Memory Slots	16
Number of Occupied Memory Slots	16
Signal Processing	Registered (Buffered)

Storage

Number of Solid State Drives	2
Total Solid State Drive Capacity	240 GB
Solid State Drive Interface	Serial ATA
Solid State Drive Configuration	2 x 120GB

Controllers

Controller Type	12Gb/s SAS Serial ATA/600
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, 50, 60, JBOD

I/O Expansions

Number of Total Expansion Bays	58
Number of 3.5" Bays	56
Number of Internal 2.5" Bays	2
Number of SFF Bays	2
Number of LFF Bays	56
Hot Swappable Bays	Yes
Total Number of Expansion Slots	2

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 2.0 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	Baseboard Management Controller (BMC)

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	4
Number of Power Supplies Installed	4
Maximum Power Supply Wattage	1050 W
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	4U
Height	6.9"
Width	17.5"
Depth	32"
Weight (Approximate)	195 lb

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year parts coverage. Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media.
