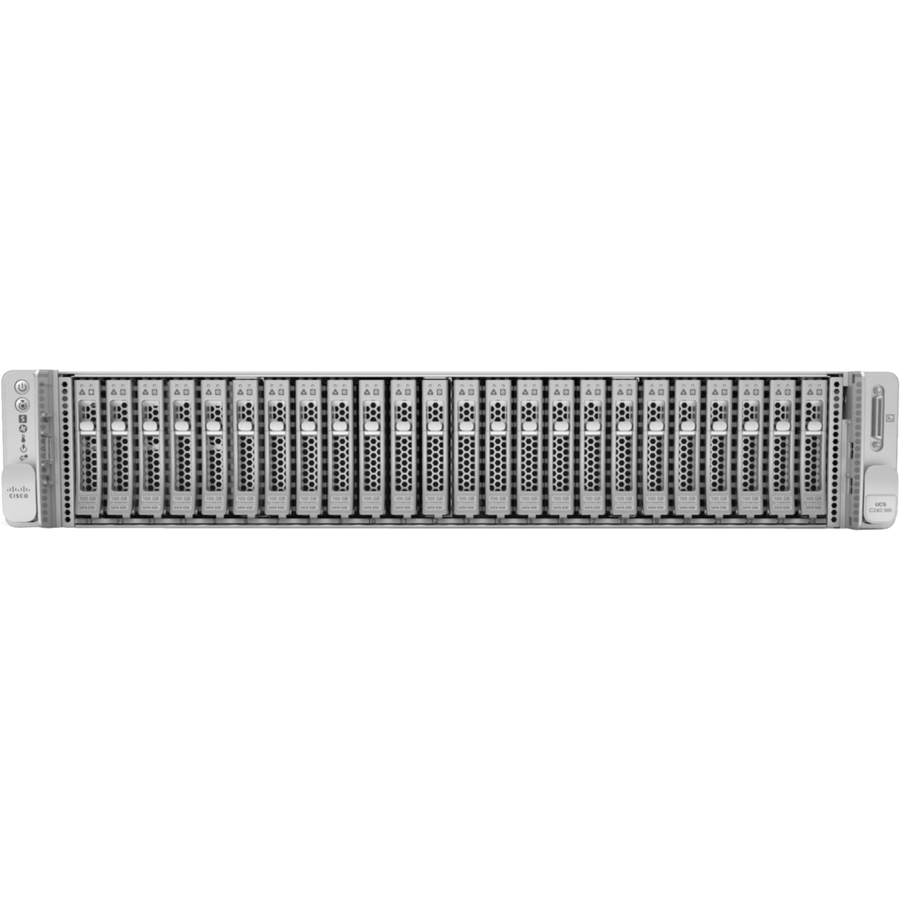

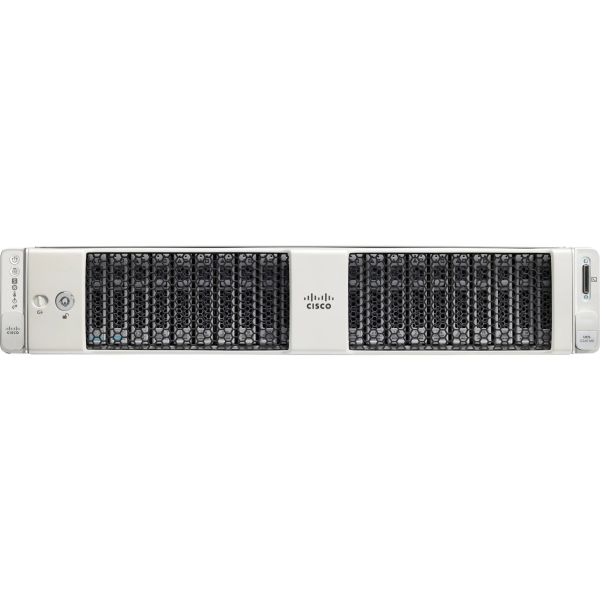

Cisco UCSC-C240-M6SX Barebone System - 2U Rack-mountable - 2 x Processor Support

Name: Cisco UCSC-C240-M6SX Barebone System - 2U Rack-mountable - 2 x Processor Support
Brand: CISCO
SKU: 9DH744
Price: 3230.69 USD
Availability: InStock

CISCO

PCN#

9DH744

MFG#

UCSC-C240-M6SX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,230.69

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621A Chip
8 TB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
32.0 Total Memory Slots
12Gb/s SAS RAID Supported, Serial ATA/600 Controller
Matrox G200e 8 MB Graphic(s)
Processor Support (Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum)
10 Gigabit Ethernet, Gigabit Ethernet
Intel Optane Memory Ready
2 USB 3.0 Port(s)
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 40 lbs.

Cisco UCSC-C240-M6SX Barebone System - 2U Rack-mountable - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCSC-C240-M6SX
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C240 M6
Product Model	UCSC-C240-M6SX
Product Name	UCS C240 M6 Barebone System
Marketing Information	The UCS C240 M6 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 256 GB. The maximum memory capacity for 2 CPUs is listed here: 8 TB (32 x 256 GB DDR4 DIMMs), or 12 TB (16 x 256 GB DDR4 DIMMs1 and 16 x 512 GB Intel® Optane™ Persistent Memory Modules (PMEMs)).
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Supported	Xeon Bronze Xeon Silver Xeon Gold Xeon Platinum
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Memory

Maximum Memory Supported	8 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	32.0
Intel Optane Memory Ready	Yes

Storage

Supported Storage Drive Interfaces

SAS-3
Serial ATA III

Controllers

Controller Type	12Gb/s SAS Serial ATA/600
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Number of VGA Ports	1

Power Description

Input Voltage

120 V AC
230 V AC

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	16.9"
Depth	30"

Warranty

Limited Warranty

3 Year
