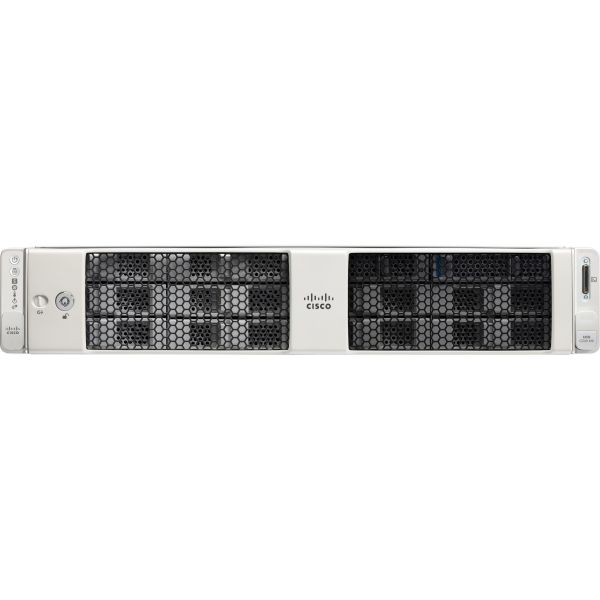

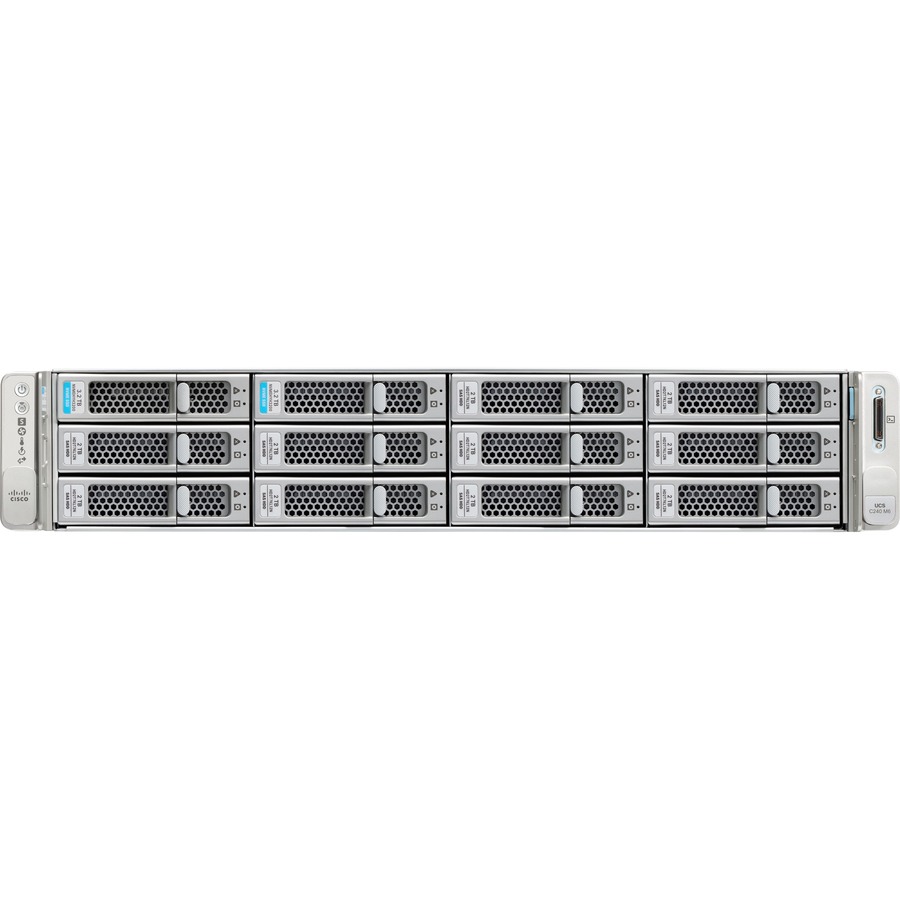

Cisco Barebone System - 2U Rack-mountable - 2 x Processor Support

Name: Cisco Barebone System - 2U Rack-mountable - 2 x Processor Support
Brand: CISCO
SKU: 9HW913
Price: 3126.45 USD
Availability: InStock

CISCO

PCN#

9HW913

MFG#

UCSC-C240-M6L

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,126.45

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621A Chip
8 TB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
32.0 Total Memory Slots
12Gb/s SAS RAID Supported Controller
Matrox G200e 8 MB Graphic(s)
12 3.5" Bay(s)
Processor Support (Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum)
10 Gigabit Ethernet, Gigabit Ethernet
Intel Optane Memory Ready
2 USB 3.0 Port(s)
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 40 lbs.

Cisco Barebone System - 2U Rack-mountable - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCSC-C240-M6L
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C240 M6
Product Name	UCS C240 M6 Barebone System
Marketing Information	The UCS C240 M6 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with per DIMM capacity points up to 256 GB. Up to 8 TB total memory (for 2 CPUs) is available if the memory slots are populated with 32 x 256 GB DDR4 DIMMs1 or 16 x 256 GB DDR4 DIMMs and 16 x 256 GB Intel® Optane™ Persistent Memory Modules (PMem). The server accommodates up to 12 front facing SAS-only LFF drives, up to 4 mid-plane SAS-only LFF drives, and up to 4 rear-facing SFF drives (SAS or SATA or NVMe). The server is equipped with two rear storage risers (2 drive slots each) and one rear PCIe riser (3 PCIe slots). The server also provides a riser slot for a 12G SAS RAID controller with SuperCap for write cache backup, or for a SAS HBA. The chassis is equipped with six fans and two power supplies. The C240 M6 LFF server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports. The Cisco UCS C240 M6 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Supported	Xeon Bronze Xeon Silver Xeon Gold Xeon Platinum
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Memory

Maximum Memory Supported	8 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	32.0
Intel Optane Memory Ready	Yes

Storage

Supported Storage Drive Interfaces

SAS-3

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	12
Number of 3.5" Bays	12

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Number of VGA Ports	1

Power Description

Input Voltage

120 V AC
230 V AC

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	16.9"
Depth	30"

Warranty

Limited Warranty

3 Year
