SPC220 M5SX W/ 2X 6130 2X 32GB MEM 12G MRAID 32GB SD REMAN

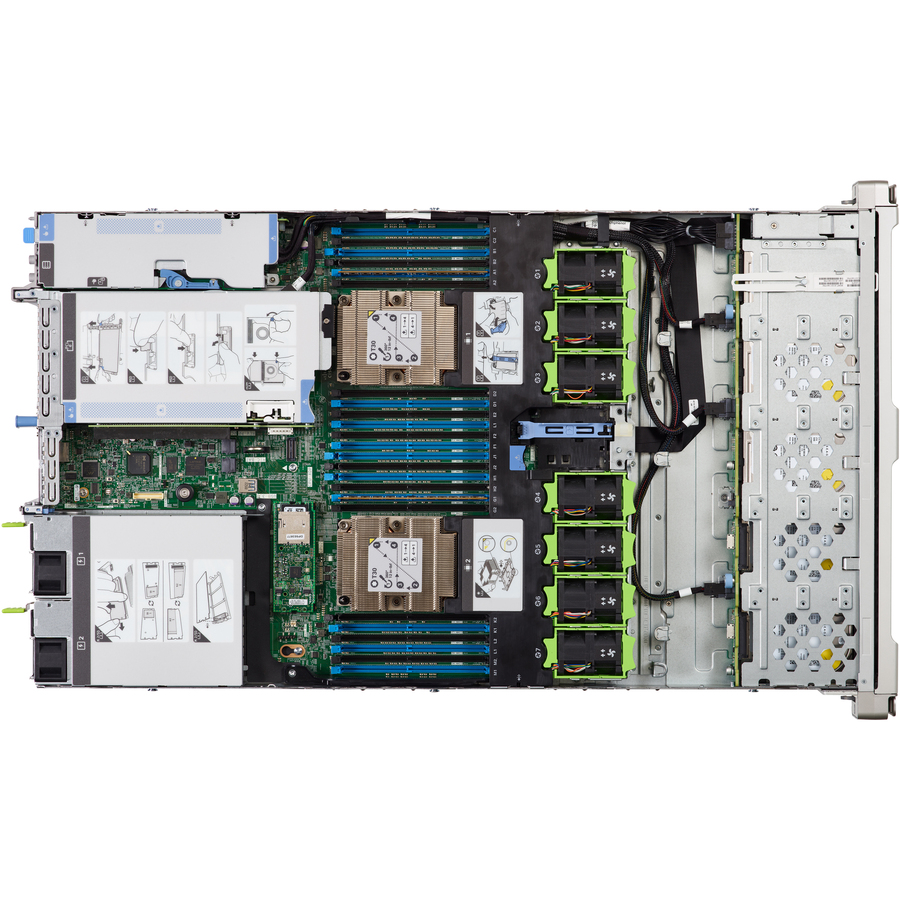

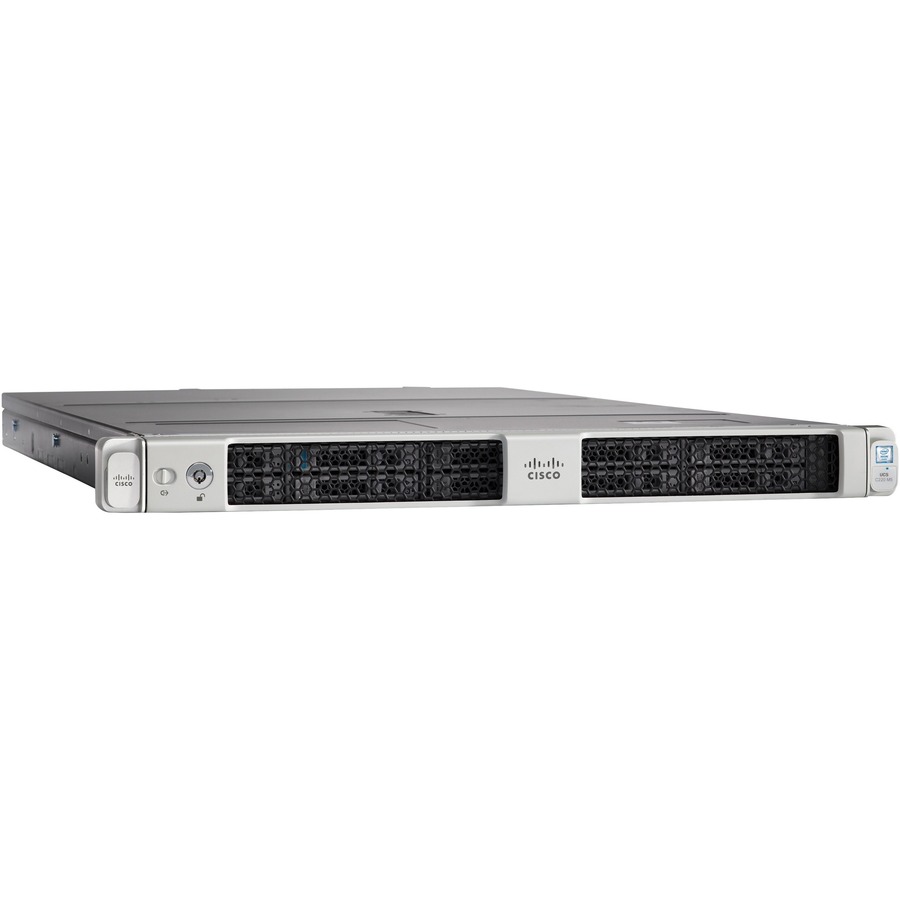

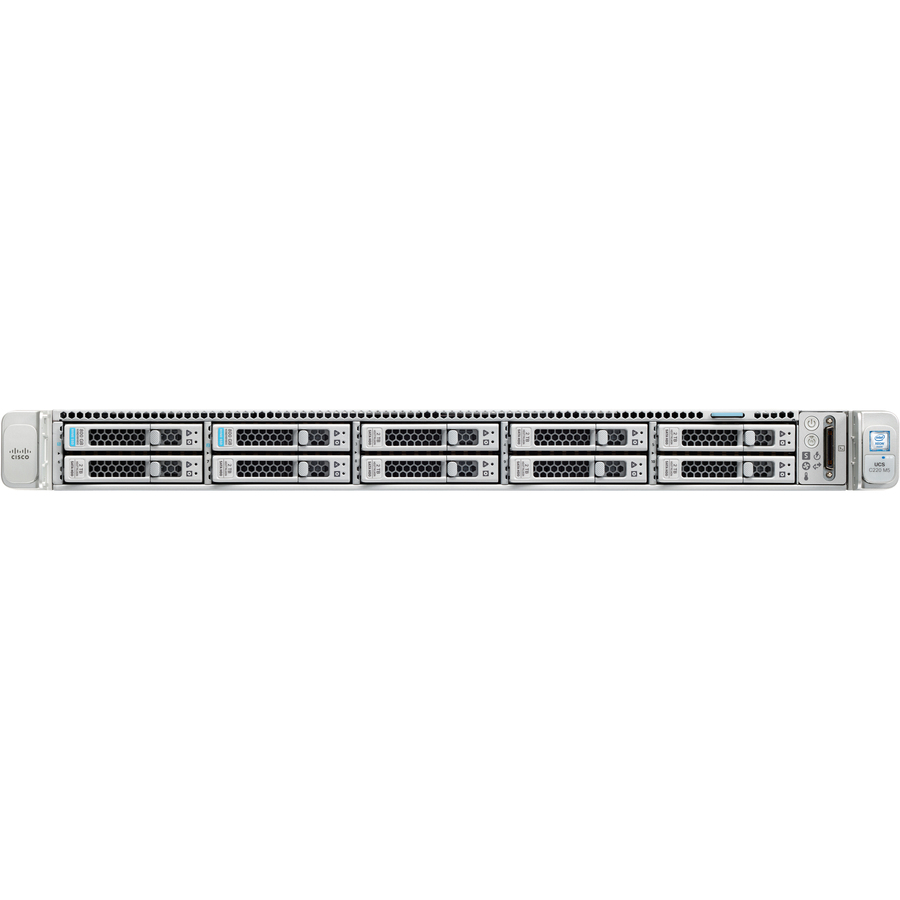

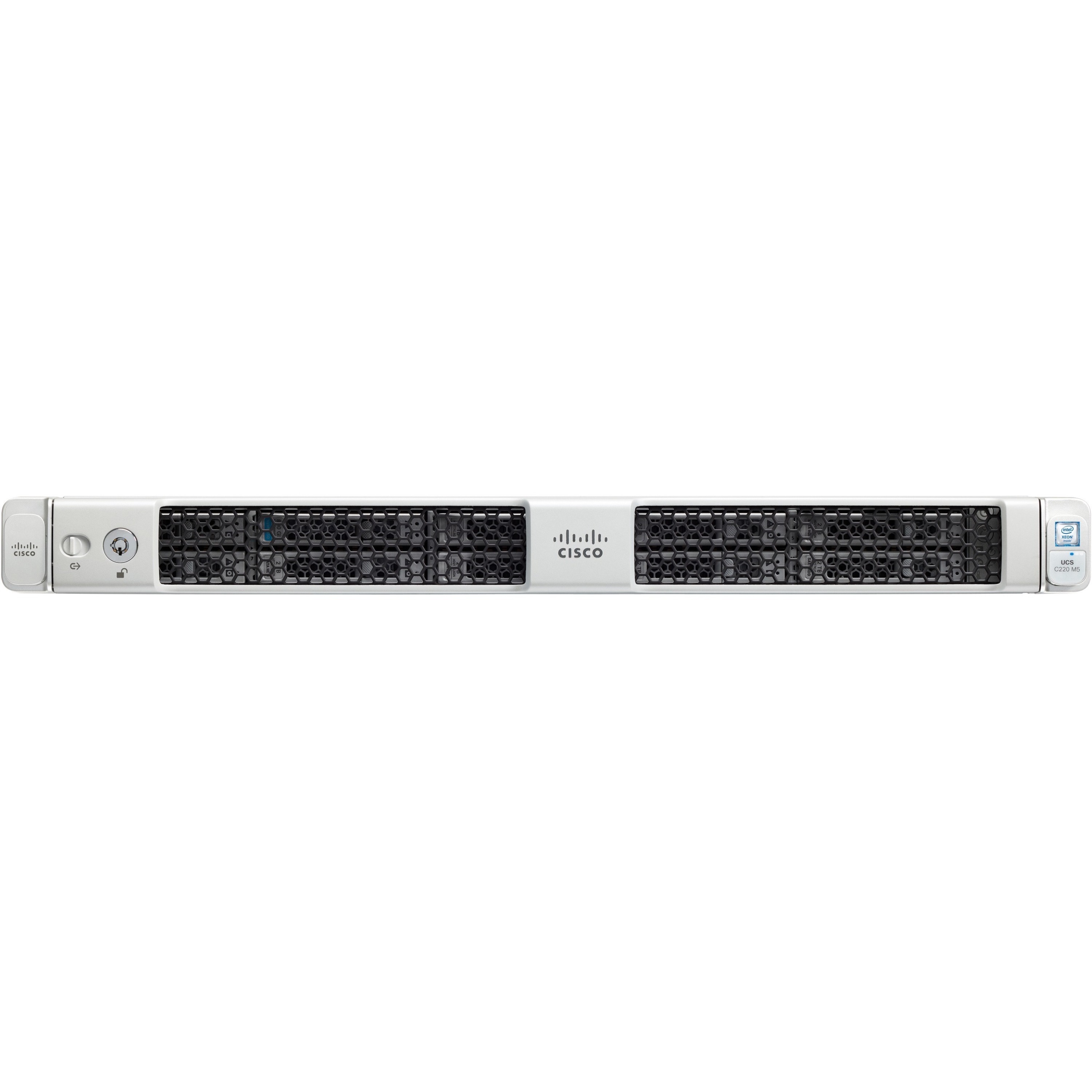

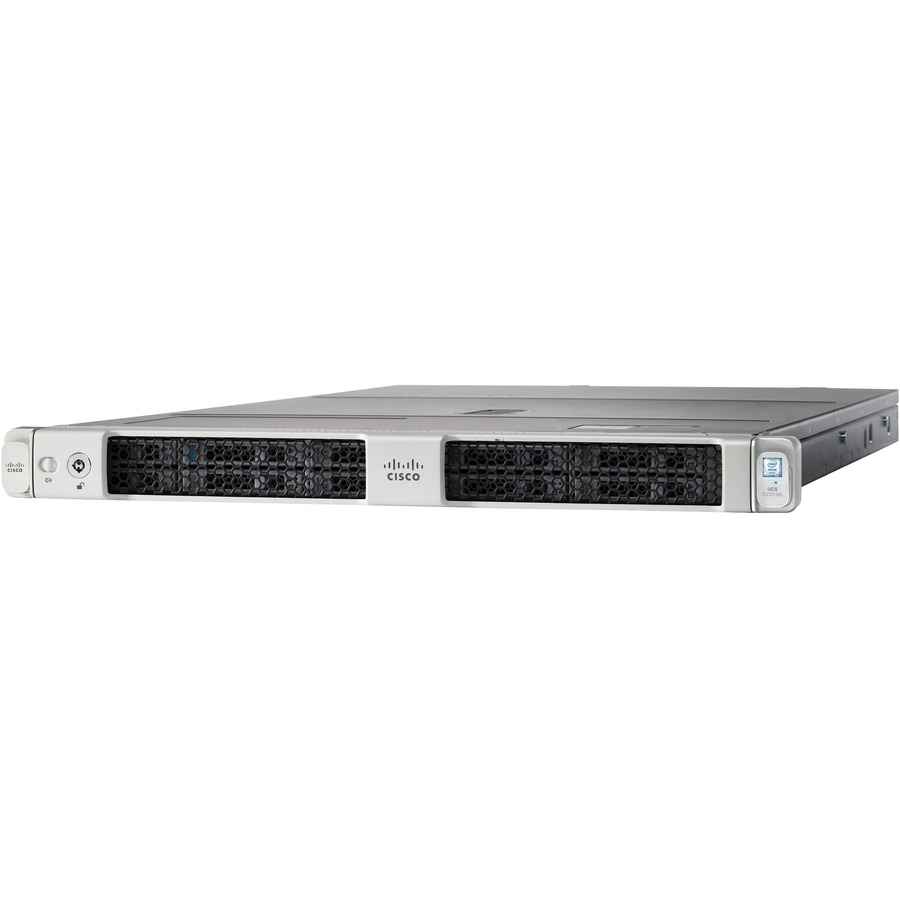

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.

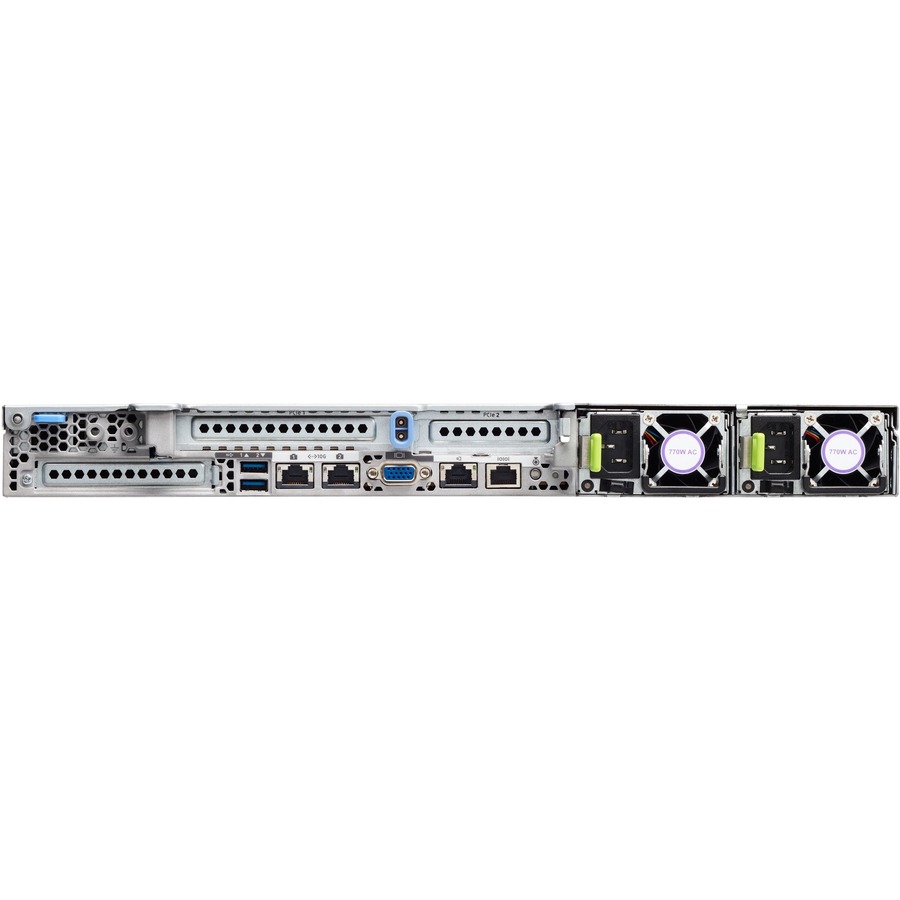

The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

• One full-height profile, 3/4-length slot with x24 connector and x16 lane.
• One half-height profile, half-length slot with x24 connector and x16 lane.

• Riser 1 (controlled by CPU 1): One full-height profile, 3/4-length slot with x24 connector and x16 lane.
• Riser 2 (controlled by CPU 2): One half-height profile, half-length slot with x24 connector and x16 lane.

• Gigabit Ethernet
• 10 Gigabit Ethernet

• Windows Server 2019 Standard
• Windows Server 2019 Datacenter
• Windows Server 2022 Standard
• Windows Server 2022 Datacenter
• Red Hat Enterprise Linux
• SuSE Linux Enterprise Server

• 120 V AC
• 230 V AC
