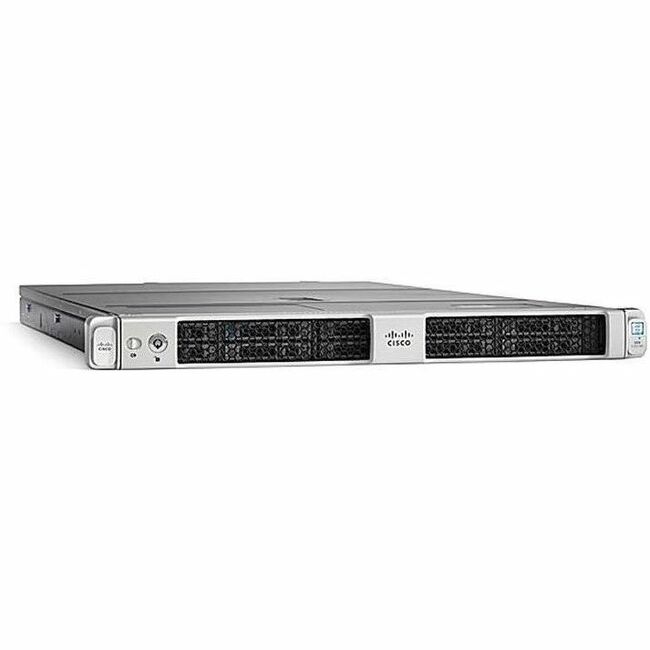

Cisco C220 M5 1U Rack Server - 2 x Intel Xeon Gold 6226R 2.90 GHz - 384 GB RAM - 12Gb/s SAS Controller

Name: Cisco C220 M5 1U Rack Server - 2 x Intel Xeon Gold 6226R 2.90 GHz - 384 GB RAM - 12Gb/s SAS Controller
Brand: CISCO
SKU: 7WV295
Price: 17077.95 USD
Availability: InStock

CISCO

PCN#

7WV295

MFG#

UCS-SP-C220M5C-M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$17,077.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $1,449.99

3-Year $2,118.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621 Chip
2 Processor Support
9 TB RAM Support
DDR4 SDRAM Up to 16 MB Graphic Card
10 Gigabit Ethernet
Redundant Power Supply
Intel Optane Memory Ready

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information Three-year parts coverage. Next business day (NBD) parts replacement eight hours a day, five days a week. 90-day software warranty on media.

Shipping Weight: 40 lbs.

Cisco C220 M5 1U Rack Server - 2 Xeon Gold 6226R 2.90 GHz - 384 GB RAM - 12Gb/s SAS Controller

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCS-SP-C220M5C-M
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C220 M5
Product Name	UCS C220 M5 Server
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	2
Processor Type	Xeon Gold
Processor Generation	2nd Gen
Processor Model	6226R
Processor Core	Hexadeca-core (16 Core)
Processor Speed	2.90 GHz
Cache	22 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Memory

Standard Memory	384 GB
Maximum Memory Supported	9 TB
Memory Technology	DDR4 SDRAM
Memory Clock Speed	2.93 GHz
Error Checking	ECC
Number of Occupied Memory Slots	12
Intel Optane Memory Ready	Yes
Signal Processing	Registered (Buffered)

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes

I/O Expansions

Total Number of Expansion Slots	2
PCI Express x16 (Gen 3.x) Slots	2
Riser Card	One full-height profile, 3/4-length slot with x24 connector and x16 lane; One half-height profile, half-length slot with x24 connector and x16 lane.

Display & Graphics

Graphics Memory Capacity	16 MB
Graphics Memory Technology	DDR4 SDRAM

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	Cisco Integrated Management Controller (CIMC)

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	19"
Depth	31"

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year parts coverage. Next business day (NBD) parts replacement eight hours a day, five days a week. 90-day software warranty on media.
