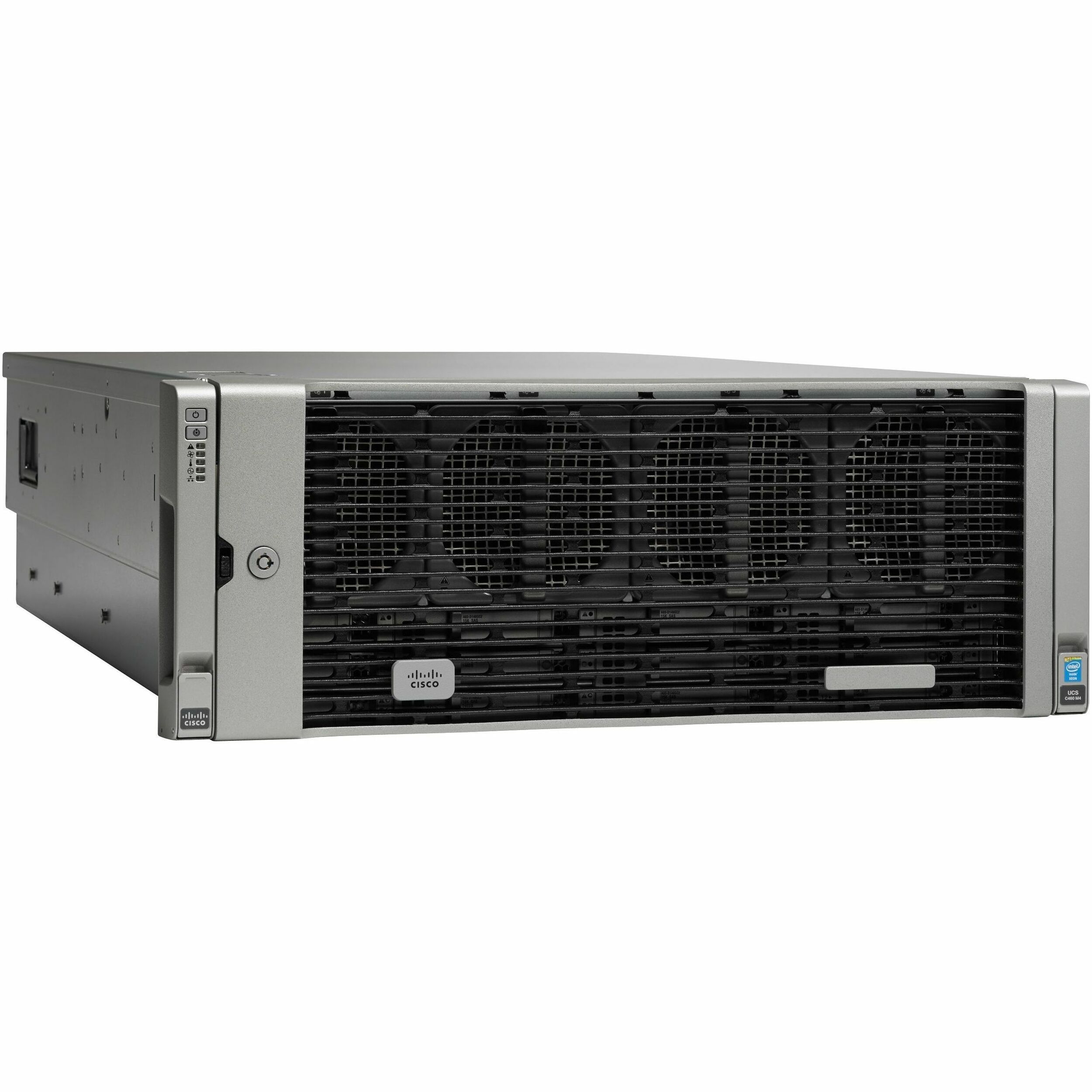

Cisco C460 M4 4U Rack-mountable Server - 4 x Intel Xeon E7-4880 v2 2.50 GHz - 1 TB RAM - 900 GB HDD - 12Gb/s SAS Controller

Name: Cisco C460 M4 4U Rack-mountable Server - 4 x Intel Xeon E7-4880 v2 2.50 GHz - 1 TB RAM - 900 GB HDD - 12Gb/s SAS Controller
Brand: CISCO
SKU: XK4704
Price: 62804 USD
Availability: InStock

CISCO

PCN#

XK4704

MFG#

UCS-SA-C460M4-03

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$62,804.00

Estimated Shipment:

Product Highlights:

Intel C602J Chip
4 Processor Support
6 TB RAM Support
DDR3 SDRAM Up to 8 MB Graphic Card
10 Gigabit Ethernet, Gigabit Ethernet
12 x Total Bay(s)
12 x SFF Bay(s)
Hot Swappable Bays
Redundant Power Supply

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information Three-year parts coverage. Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media.

Shipping Weight: 151 lbs.

Cisco C460 M4 4U Rack-mountable Server - 4 Xeon E7-4880 v2 2.50 GHz - 1 TB RAM - 900 GB HDD - 12Gb/s SAS Controller

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCS-SA-C460M4-03
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C460 M4
Product Name	UCS C460 M4 Server
Marketing Information	The Cisco UCS C460 M4 High-Performance Rack Server is a four-rack-unit (4RU) server supporting the Intel Xeon E7-8800 v3/v4 or E7-4800 v3/v4 series processor family CPUs, with up to 6 terabytes (TB) of double-data-rate 3 (DDR3) or DDR4 memory in 96 slots, and up to 12 small form factor (SFF), hot-swappable SAS and SATA disk drives. 10 PCI Express (PCIe) slots support the Cisco UCS C-Series network adapters, with additional I/O provided by 2 Gigabit Ethernet LOM ports, 2 10-Gigabit Ethernet ports, and one dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card.
Product Type	Server

Processor

Number of Processors Supported	4
Number of Processors Installed	4
Processor Type	Xeon
Processor Model	E7-4880 v2
Processor Core	Pentadeca-core (15 Core)
Processor Speed	2.50 GHz
Cache	37.50 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C602J

Memory

Standard Memory	1 TB
Maximum Memory Supported	6 TB
Memory Technology	DDR3 SDRAM
Memory Clock Speed	1.60 GHz
Error Checking	ECC
Signal Processing	Registered (Buffered)

Storage

Total Hard Drive Capacity	900 GB
Hard Drive Interface	SAS

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes

I/O Expansions

Number of Total Expansion Bays	12
Number of Internal 2.5" Bays	12
Number of SFF Bays	12
Hot Swappable Bays	Yes
Total Number of Expansion Slots	10
PCI Express x4 (Gen 3.x) Slots	1
PCI Express x8 (Gen 3.x) Slots	6
PCI Express x16 (Gen 3.x) Slots	3
PCI Express Details	There are 10 full-height PCIe expansion slots

Display & Graphics

Graphics Memory Capacity

8 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	3
Number of USB 2.0 Ports	3
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	Cisco Integrated Management Controller (CIMC)

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	4
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	4U
Height	6.9"
Width	19"
Depth	32.7"
Weight (Approximate)	141.98 lb

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year parts coverage. Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media.
