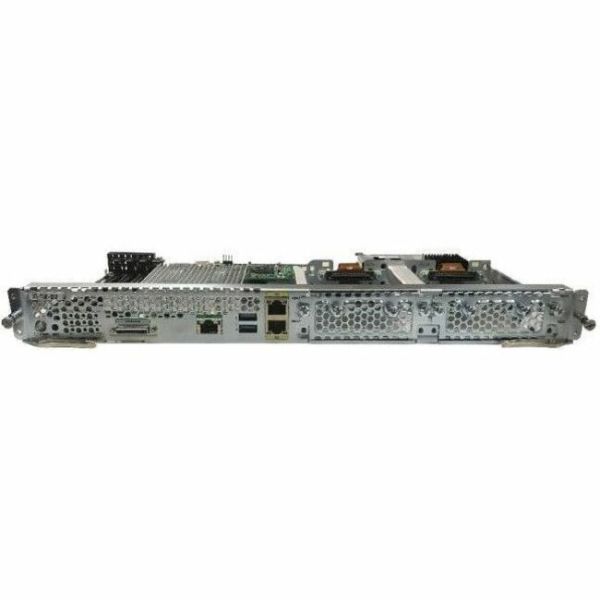

Cisco E180D M3 Barebone System - Blade - Socket BGA-1667 - 1 x Processor Support - 1 x Intel Xeon D-1548 2 GHz Octa-core (8 Core)

Name: Cisco E180D M3 Barebone System - Blade - Socket BGA-1667 - 1 x Processor Support - 1 x Intel Xeon D-1548 2 GHz Octa-core (8 Core)
Brand: CISCO
SKU: 3BD428
Price: 4021.84 USD
Availability: InStock

CISCO

PCN#

3BD428

MFG#

UCS-E180D-M3/K9

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$4,021.84

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel Chip
128 GB DDR4 SDRAM Maximum RAM Support
4.0 Total Memory Slots
Serial Attached SCSI (SAS) RAID Supported Controller
Network (RJ
45)
Gigabit Ethernet, 10 Gigabit Ethernet
90 Day

Product Condition: New and Factory Fresh

Limited Warranty90 Day

Shipping Weight: 1 lbs.

Cisco E180D M3 Barebone System - Blade - Socket BGA-1667 - 1 x Processor Support - 1 x Intel Xeon D-1548 2 GHz Octa-core (8 Core)

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCSE180DM3K9
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	E
Product Model	E180D M3
Product Name	UCS E180D M3 Server
Marketing Information	Cisco UCS E-Series Servers The Cisco Unified Computing System™ (Cisco UCS) E-series M3 Server is available in two flavors: as singlewide and as doublewide module. The singlewide version occupies a single service-module slot in the Cisco 4000 Series ISR as shown above. The doublewide module occupies two service-module slots sideby-side. All Cisco UCS E-Series M3 Servers are high-density blade servers with single-socket Intel Xeon-D processors. They balance simplicity, performance, and application density while operating in an energyefficient environment providing better energy efficiency than preceding models. The servers also include integrated remote lights-out management. They thus provide an excellent platform for introducing virtualization into the branch office and supporting mission-critical business applications. The innovative, zero-footprint form factor of the Cisco UCS E-Series Servers in conjunction with the lower total cost of ownership (TCO) of the Intel Xeon processor increases business agility and enhances reliability when compared to standalone rack-mount and tower servers.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Number of Processors Installed	1
Processor Socket	Socket BGA-1667
Processor Manufacturer	Intel
Processor Type	Xeon
Processor Model	D-1548
Processor Core	Octa-core (8 Core)
Processor Speed	2 GHz
Maximum Turbo Speed	2.60 GHz
64-bit Processing	Yes

Chipset

Chipset Manufacturer

Intel

Memory

Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Total Number of Memory Slots	4.0

Storage

Supported Storage Drive Interfaces	SAS
Supported Storage Drive Types	HDD SSD

Controllers

Controller Type	Serial Attached SCSI (SAS)
RAID Supported	Yes
RAID Levels	0, 1, 5, 10

Network & Communication

Ethernet Technology

Gigabit Ethernet
10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays

Interfaces/Ports

Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4

Physical Characteristics

Form Factor	Blade
Height	1.6"
Width	16.2"
Depth	7.5"
Weight (Approximate)	7.05 lb

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

90 Day
