ELA NCS 1000 MTP/MPO TO 24 COLORLESS CHS PASSIVE BREAKOUT MOD

Name: ELA NCS 1000 MTP/MPO TO 24 COLORLESS CHS PASSIVE BREAKOUT MOD
Brand: CISCO
SKU: 07AR12
Price: 12430.28 USD
Availability: InStock

CISCO

PCN#

07AR12

MFG#

NCS1K-BRK-24=

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$12,430.28

Extended & Accidental Damage Protection Plans Available Details

3-Year $1,226.99

2-Year $1,115.99

Free Shipping

Estimated Shipment:

Product Highlights:

For Data Networking, Optical Network
1 x MPO
24 Network, 24 x LC Duplex Network
Optical Fiber
1520 nm, 1612 nm, 1567.34 nm, 1569.60 nm Wavelength

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

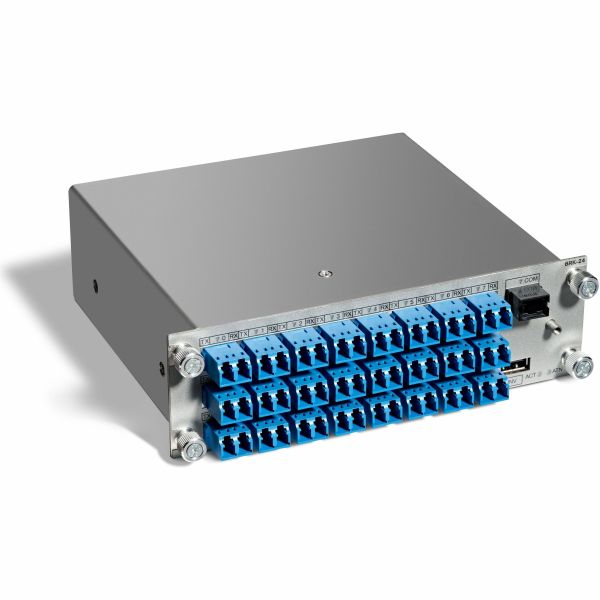

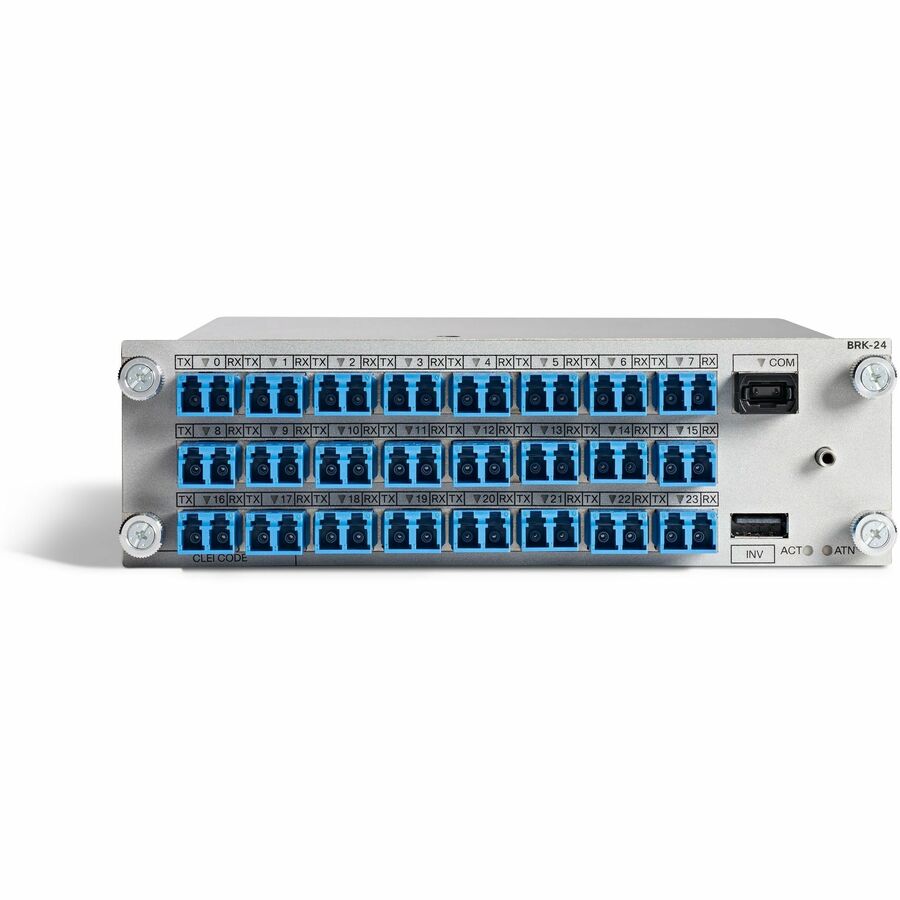

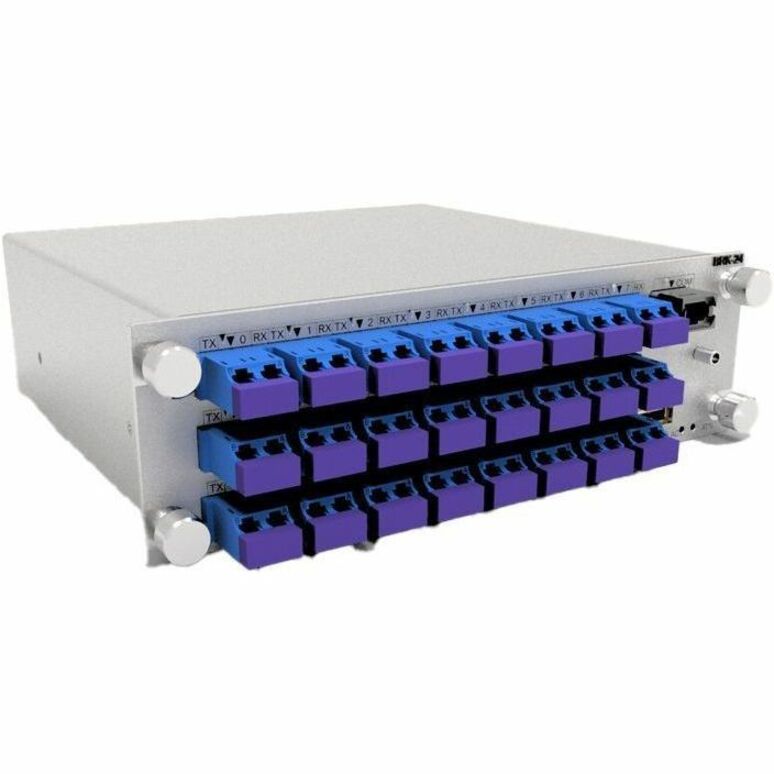

Cisco 24-Port Breakout Module

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	NCS1K-BRK-24=
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	NCS 1000
Product Name	24-Port Breakout Module
Marketing Information	The NCS1K-BRK-24 module providesthe breakout of 16 fibersfrom an MPO-24 connector to 24 duplex LC connectors. The signals on each fiber from the MPO input ports are split over three LC output ports by a 1x3 optical splitter. The signals from the three adjacent input LC ports are combined into a single MPO fiber output port through a 1x3 optical coupler. For each port (MPO and LC), power monitors with tone detection capability are available. A filtered optical loopback (191.175 THz) from one MPO input port (fiber-1) to all MPO output ports is available for connection verification.
Product Type	NCS Breakout Module

Technical Information

Application/Usage

Data Networking
Optical Network

Interfaces/Ports

Total Number of Ports	25
Connector Type	MTP/MPO MPO-24 LC Duplex
Interfaces/Ports Details	1 x MPO-24 Network 24 x LC Duplex Network

Media & Performance

Media Type Supported	Optical Fiber
Fiber Optic Cable Wavelength	1520 nm 1612 nm 1567.34 nm 1569.60 nm

Warranty

Limited Warranty

5 Year
