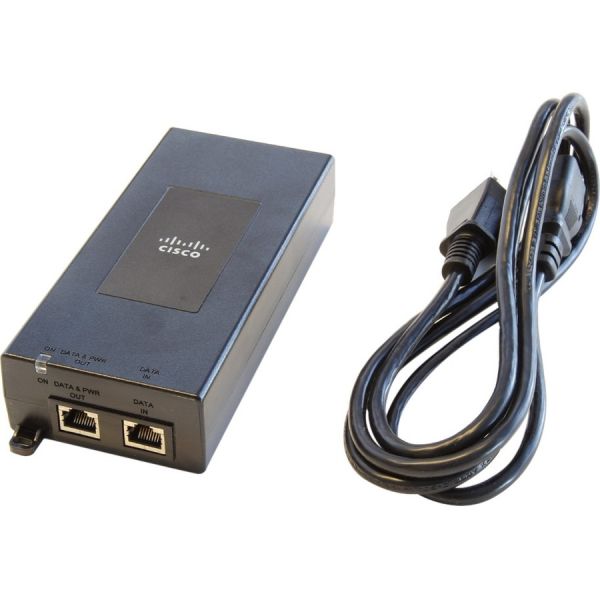

Meraki Multigigabit 802.3at Power over Ethernet Injector

Name: Meraki Multigigabit 802.3at Power over Ethernet Injector
Brand: CISCO
SKU: 4A2589
Price: 291.31 USD
Availability: InStock

CISCO

PCN#

4A2589

MFG#

MA-INJ-5-UK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$291.31

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

55 V DC Output
1 x 10/100/1000Base
T Input Port(s)
1 x 10/100/1000Base
T Output Port(s)
30 W

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

Meraki Multigigabit 802.3at Power over Ethernet Injector

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	MA-INJ-5-UK
Manufacturer Website Address	http://www.cisco.com
Brand Name	Meraki
Product Name	Multigigabit 802.3at Power over Ethernet Injector
Marketing Information	Reliable, standards-compliant power for your Meraki devices Increased Flexibility, Reduced Installation Time and Cost One of the main constraints when designing your wireless network is the availability of power. Running power cabling is also a primary cost driver of wireless installations. The Meraki multigigabit PoE injector allows delivery of both data and power to a Meraki access point over a single Ethernet cable, allowing deployment of devices exactly where they are needed to provide the best wireless coverage at a much lower installation cost. The Meraki Multigigabit 802.3at PoE Injector provides fully-compliant 802.3at detection, with disconnect, short-circuit and overload protec - tion. This ensures that only 802.3at and 802.3af devices receive power and non-compliant devices are not accidentally damaged. Using this injector, it is possible to power the latest generation of 802.11ac devices that require 802.3at power delivered via multigigabit inter - faces, as well as providing backward compatibility with legacy 802.11n devices with traditional 802.3af power. Regardless of the deployment scenario, powering Meraki devices with multigigabit 802.3at Power over Ethernet is a flexible and low-cost method to simplify the installation process while ensuring that net - work design is not compromised by power availability limitations.
Product Type	PoE Injector

Power Description

Maximum Output Voltage	55 V DC
Maximum Input Current	1.50 A
Minimum Frequency	50 Hz
Maximum Frequency	60 Hz
Maximum Output Power	30 W

Interfaces/Ports

Input Ports	1 x 10/100/1000Base-T
Output Ports	1 x 10/100/1000Base-T

Physical Characteristics

Form Factor	Wall Mountable
Height	1.7"
Width	3.5"
Depth	6.5"
Weight (Approximate)	14.56 oz

Miscellaneous

Country of Origin

Philippines

Warranty

Limited Warranty

1 Year
