Cisco Catalyst IW9167E Tri Band IEEE 802.11a/b/g/n/ac/ax/d/h/i/r/k/v/u 7.80 Gbit/s Wireless Access Point - Outdoor

The Catalyst IW9167 Series addresses the growing need to provide reliable wireless connectivity for missioncritical applications as organizations automate processes and operations. It comes with three 4x4 radios in a heavy-duty design that is IP67 rated and packed with advanced features.

The Catalyst IW9167 Series is designed to take advantage of the 6 GHz band expansion to deliver a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The 6 GHz band support will be available with a future software upgrade and is subject to approvals and regulations by each countries' regulatory agencies for the use of the 6 GHz spectrum for outdoor standard power devices. Please refer to the Wi-Fi 6E white paper for more details on 6 GHz.

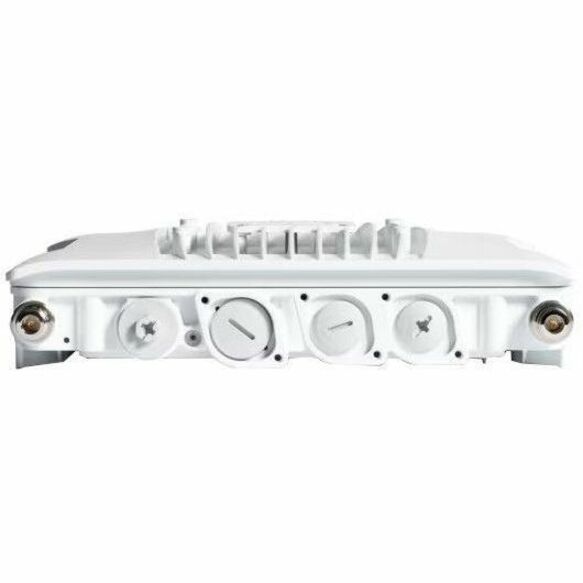

Cisco Catalyst IW9167E Heavy Duty Access Point

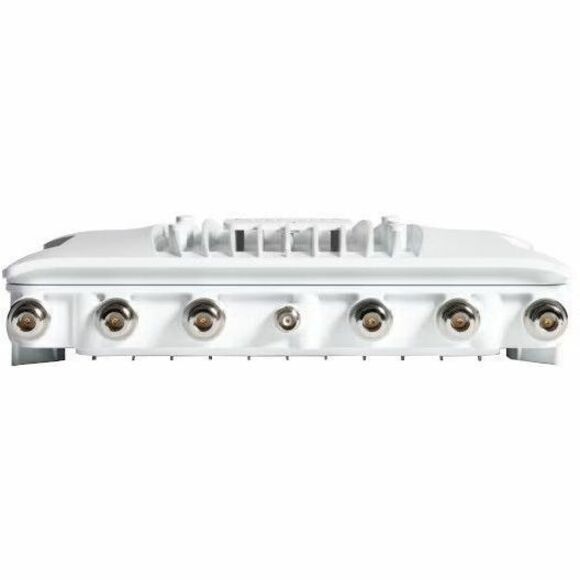

The Catalyst IW9167E is designed with external antenna ports and provides flexibility to choose the right antenna based on the use case. It offers unmatched flexibility, as it can operate in one of three different modes: Wi-Fi 6, WGB, or Cisco URWB:

• All the benefits of Wi-Fi 6 in industrial or outdoor spaces: Higher density, higher throughput, more channels, power efficiency, and improved security.
• WGB mode provides an arsenal of features and capabilities to help ensure continuous connectivity for static and mobile industrial applications in a Wi-Fi deployment.
• Cisco URWB provides ultra-reliable wireless connectivity for moving assets or to extend the network where running fiber isn't feasible or is too costly. It provides up to 99.995% availability, <10 ms latency, and zero packet loss with seamless handoffs. Cisco URWB is a proven technology that has been used by many customers, operates on unlicensed spectrum, deploys like Wi-Fi, and gives you full control of your network.

• 2.40 GHz
• 5 GHz
• 6 GHz

• WPA3
• WPA2
• WPA
• AES
• TKIP
• EAP-TLS
• EAP-TTLS
• EAP-FAST
• PEAPv1
• EAP-GTC
• EAP-SIM

• 5 Gigabit Ethernet
• 10 Gigabit Ethernet

• EN 60529 IP67
• UL50E Type 4X
• IEC 60068-2-1 (Cold)
• IEC 60068-2-2 (Dry Heat)
• IEC 60068-2-14 (Change of Temperature)
• IEC 60068-2-30 (Damp Heat)
• IEC 60068-2-6 (Vibration)
• IEC 60068-2-27 (Shock)
• IEC 60068-2-30 (Humidity)
• IEC 60068-2-32 (Freefall)
• IEC 60068-3-3 (Seismic)
• FCC 47 CFR Part 15 Class A
• EN 55032 Class A
• VCCI Class A
• AS/NZ CISPR 32 Class A
• CISPR 32 Class A
• ICES 003 Class A
• CNS13438 Class A
• EN 300 386
• KS C 9832:2019
• EN 301 489-1 v2.1.1
• EN 301 489-17 v2.1.1
• EN 301 489 - 19
• EN 55035
• CISPR35
• KS C 9835:2019
• KS X 3124
• KS X 3126
• IEC/EN 61000-4-2 - Electrostatic Discharge
• IEC/EN 61000-4-3 - Radiated RF Immunity
• IEC/EN 61000-4-5 - Surge
• IEC/EN 61000-4-6 - Conducted RF Immunity
• IEC/EN 61000-4-8 - Power Frequency
• Magnetic Field
• IEC 61000-4-9 - Pulsed Magnetic Field
• IEC 61000-4-11 - AC Voltage Dips
• IEC 61000-4-18 - Damped Oscillatory Wave
• EN-61000-4-29 - DC Voltage Dips
• IEC 62368-1
• EN 62368-1
• EN 62311
• EN 45545-3
• DIN 5510-2
• EN 61000-6-2 - Industrial
• EN 61000-6-4 - Industrial
• EN 61000-6-1 - Light Industrial
• AREMA C&S Manual Section 11.5.1
• AAR S9401 Rail - Rolling stock cab, wayside outside
• EN 50155 Rail - Electronic Equipment on Rolling Stock Class TX (EMC, Environmental)
• EN 61373 Rail - Environmental
• EN 50121-4 Rail - Signaling and Telecommunications Apparatus
• EN 50121-3-2 Rail - Apparatus for Rolling Stock
• EN 61373 - Shock and Vibration
• ? FCC Part 15.247, 15.407
• ? RSS 247
• ? EN 300 328 v2.2.2 (EU)
• ? EN 301 893 v2.1.1 (EU)
• ? EN 303 413
• ? ARIB-STD 66 (Japan)
• ? ARIB-STD T71 (Japan)
• ? EMI and susceptibility (Class B)
