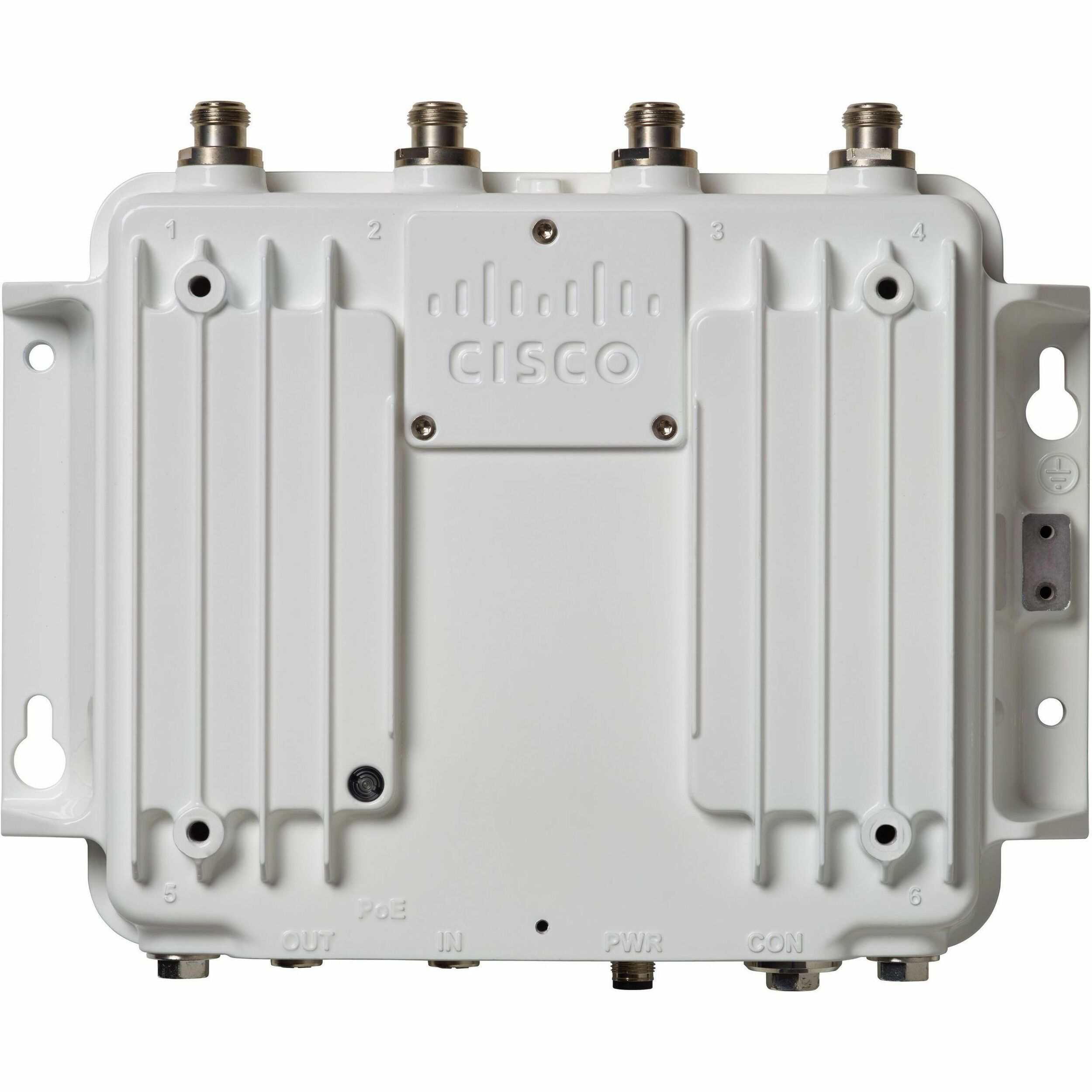

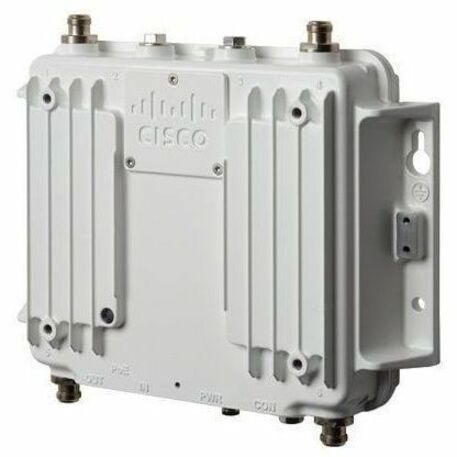

ELA INDUSTRIAL WRLS AP 3702 4 ANTENNA PORTS ON TOP

The Cisco® Industrial Wireless 3700 (IW3700) Series Access Points deliver industry-leading performance and a high-density experience for industrial and outdoor use. The IW3700 offers industrial-grade environmental qualifications while providing higher speeds for video and other bandwidth-intensive applications and extending support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac support.

In its first implementation, 802.11ac Wave 1 provides a rate of up to 1.3 Gbps, roughly triple the rates offered by high-end 802.11n access points. This provides the necessary foundation for industrial, enterprise, and service provider networks to stay ahead of the performance, and bandwidth expectations and needs of their wireless users.

Due to its convenience, wireless access is increasingly the preferred form of network connectivity for industrial users. Along with this shift, there is an expectation that wireless should not slow down users' day-to-day work but should enable a high performance experience while allowing users to move freely around the corporate environment.

The IW3700 offers a scalable and secure mesh architecture for high-performance Wi-Fi services, and can also serve as an advanced static or mobile Workgroup Bridge (WGB).

• 2.40 GHz
• 5 GHz

• WPA2
• WPA
• AES
• TKIP
• EAP-TLS
• EAP-TTLS
• MSCHAPv2
• PEAPv0
• EAP-PEAP
• EAP-MSCHAPv2
• EAP-FAST
• PEAPv1
• EAP-GTC
• EAP-SIM

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

• Pole-mountable
• DIN Rail

• EN 60529 IP67
• UL50E
• IEC 60068-2-1 (Cold)
• IEC 60068-2-2 (Dry Heat)
• IEC 60068-2-14 (Change of Temperature)
• IEC 60068-2-30 (Damp Heat)
• IEC 60068-2-6 (Vibration)
• IEC 60068-2-27 (Shock)
• IEC 60068-2-30 (Humidity)
• IEC 60068-2-32 (Freefall)
• IEC 60068-3-3 (Seismic)
• FCC 47 CFR Part 15 Class A
• EN 55022A Class A
• VCCI Class A
• AS/NZS CISPR 22 Class A
• CISPR 11 Class A
• CISPR 22 Class A
• ICES 003 Class A
• CNS13438 Class A
• EN 300 386
• KN22
• EN 301 489-1 v2.1.1
• EN 301 489-17 v2.1.1
• EN 55011
• EN 55024
• CISPR 24
• KN24
• KN 301 489-1
• KN 301 489-17
• IEC/EN 61000-4-2 - Electro Static Discharge
• IEC/EN 61000-4-3 - Radiated RF Immunity
• IEC/EN 61000-4-4, IEC 61000-6-1, IEC 61000-6-2 - Electromagnetic Fast Transients
• IEC/EN 61000-4-5 - Surge
• IEC/EN 61000-4-6 - Conducted RF Immunity
• IEC/EN 61000-4-8 - Power Frequency Magnetic Field
• IEC 61000-4-9 - Pulsed Magnetic Field
• IEC 61000-4-11 - AC Voltage Dips
