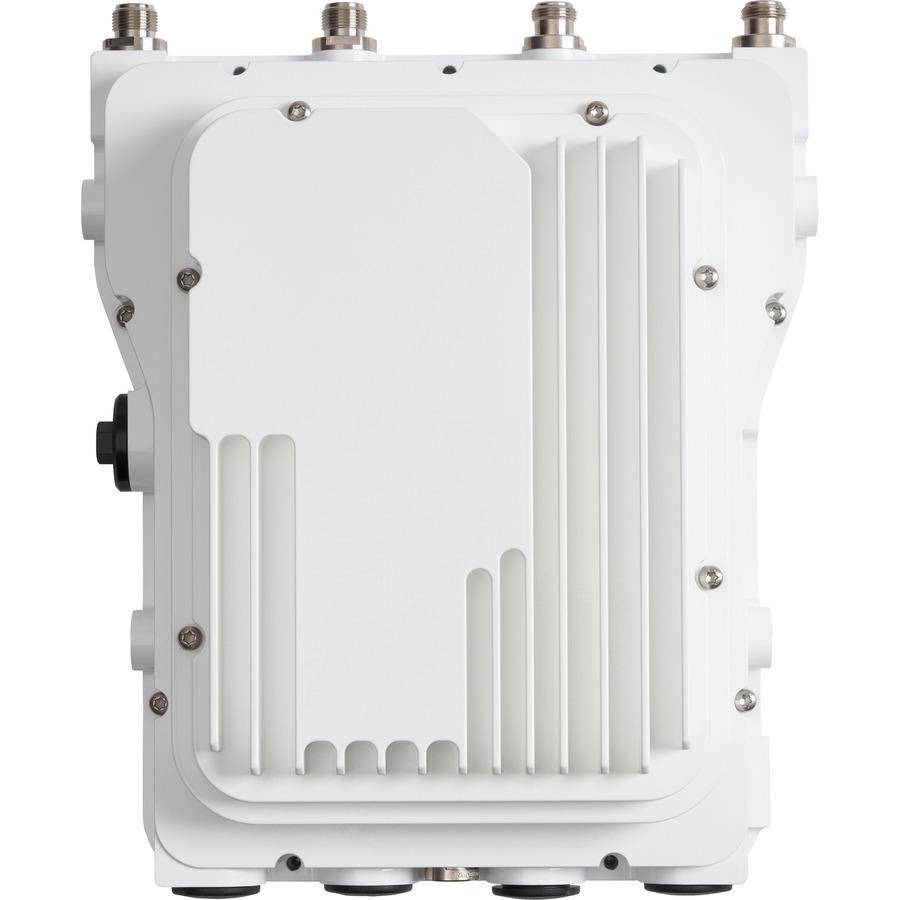

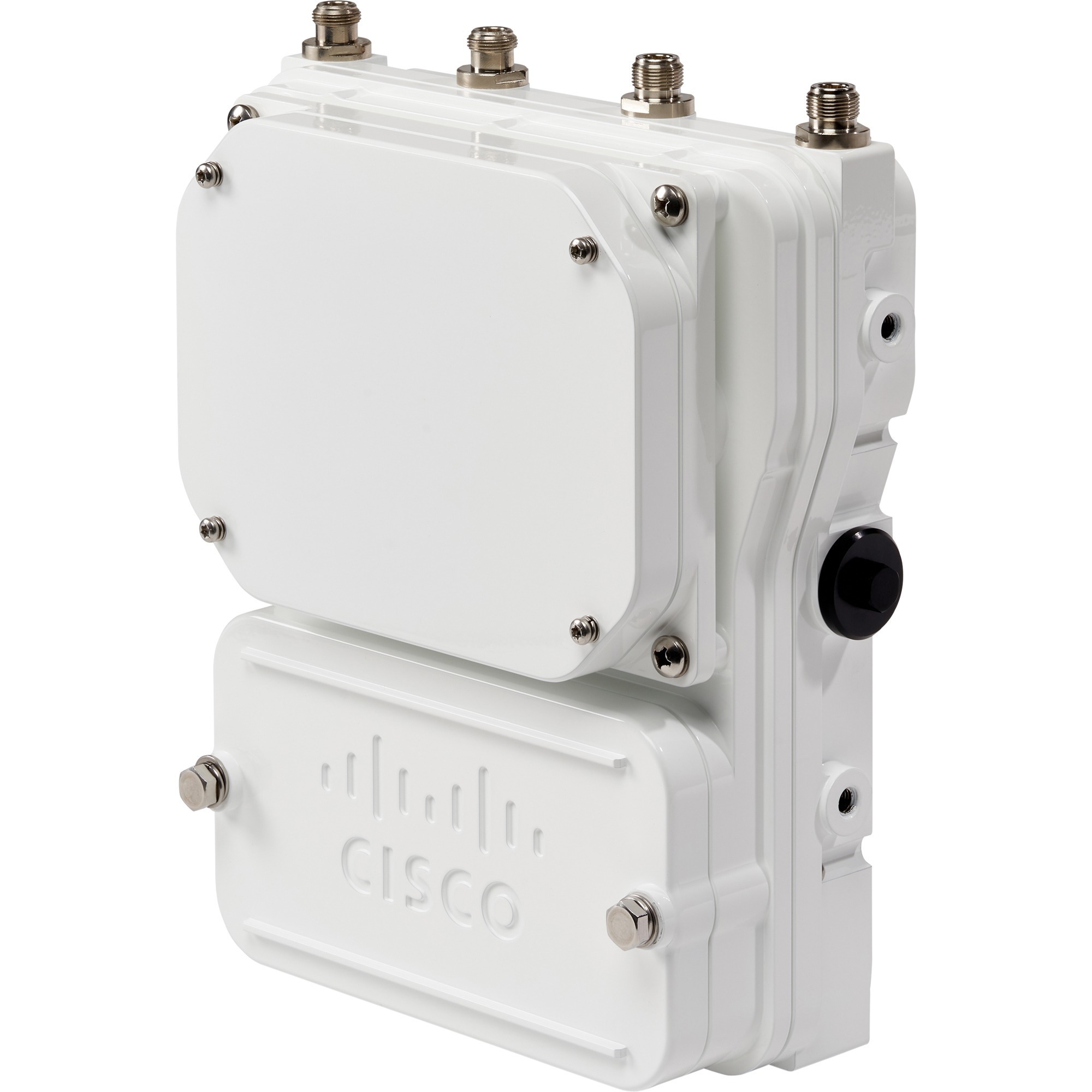

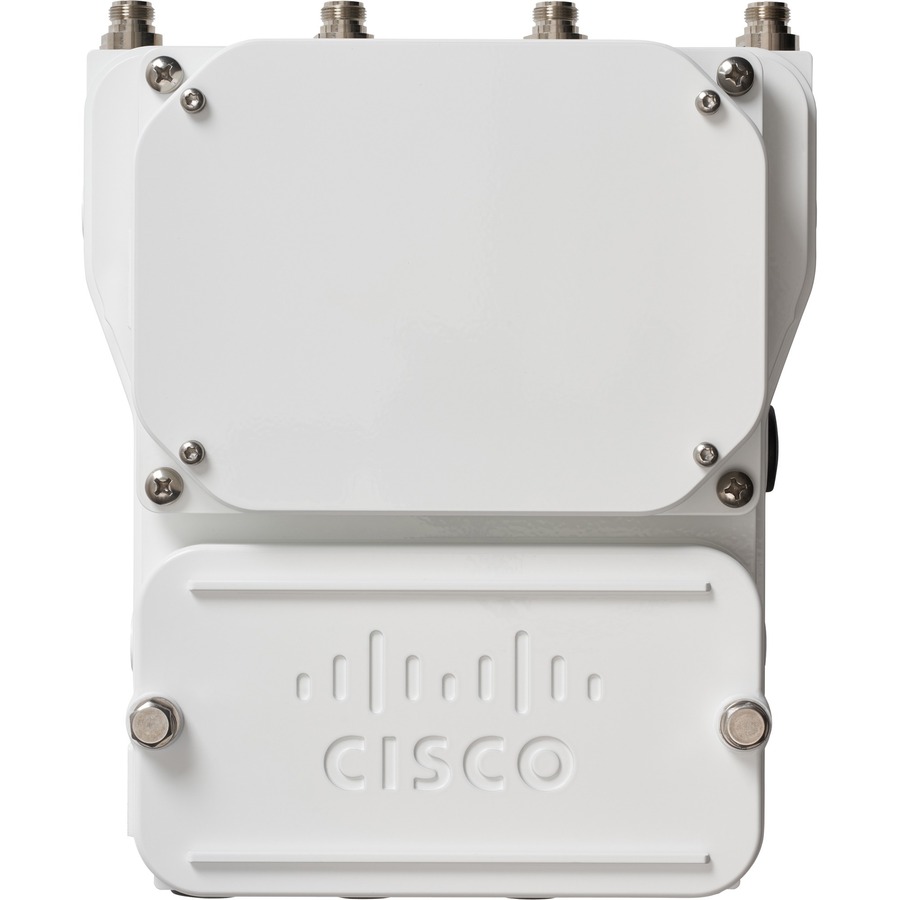

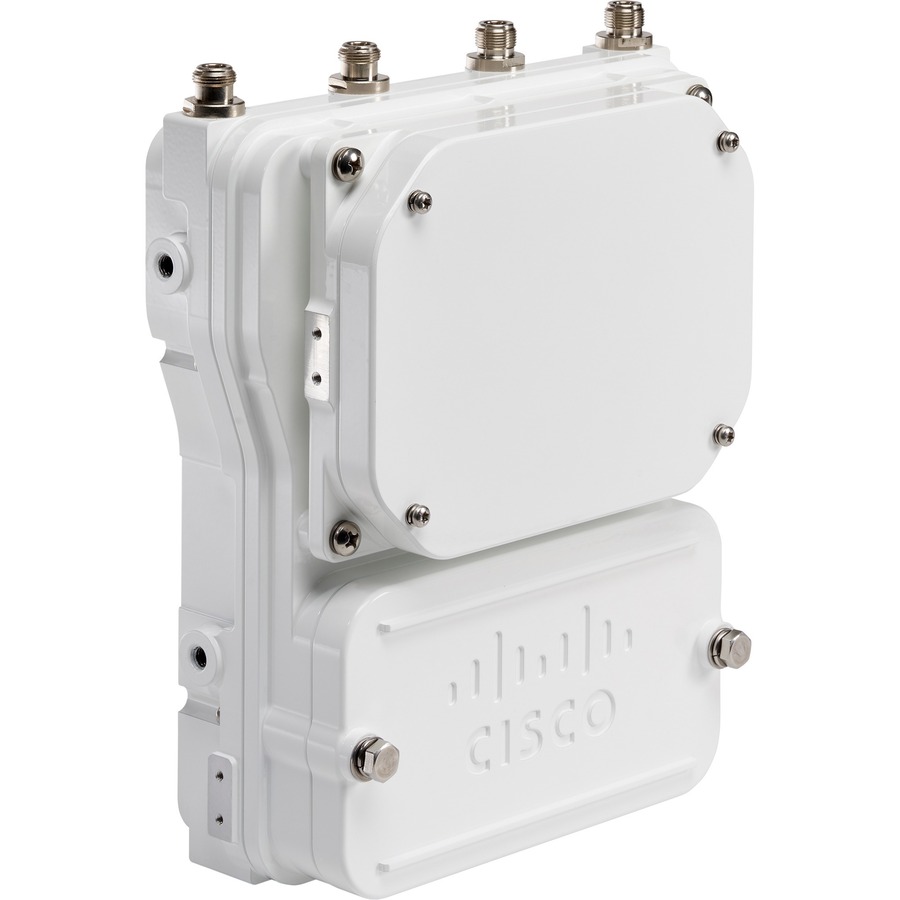

INDUSTRIAL WRLS AP 6300 AC INPUT HAZLOC M DOMAIN

Designed for the most hazardous industrial locations, Cisco Catalyst IW6300 Heavy Duty Access Points deliver wireless connectivity, IoT control, and robust data collection to dangerous environments. Mines, refineries, and factory floors are undergoing a digital transformation, with Wi-Fi availability extracting live insights from equipment and workers alike. With 802.11ac Wave 2 connectivity, dual Power over Ethernet Plus (PoE+) out for IoT sensors or peripherals, multiple power-in sources, and a variety of uplink options, the IW6300 is a flexible wireless solution today's dynamic industry landscape requires. The IW6300 carries an IP67 rating and Class I, Division/Zone 2 certification, as well as a temperature rating of -40 to +75 degrees Celsius, making it an ideal mesh network component for heavy industry use. Additional customization beyond antenna and mounting options include WirelessHART, ISA100.11a, GPS, Bluetooth Low-Energy, and Zigbee modules, as well as customer or partner-built modules for specific use cases.

• 5 GHz
• 2.40 GHz

• WPA3
• WPA
• AES
• TKIP
• EAP-PEAP
• EAP-TLS
• EAP-TTLS
• EAP-SIM
• LEAP

• UL/CSA 60950-1
• UL/CSA 62368-1
• IEC/EN 60950-1
• IEC/EN 62368-1
• IEC 60950-1
• IEC 62368-1
• NOM to NOM-019-SCFI (via UL certificate of conformity)
• UL 121201 (Class l, Div 2, groups A-D)
• CSA 213 (Class l, Div 2, groups A-D)
• UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC)
• IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC)
• EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC)
• UL 50E (type 4X)
• EN/IEC 60529 (IP66 and IP67)
• UL/CSA/IEC 60950-22
• IEC/EN61000-4-5 Level 4 AC Surge Immunity
• IEC/EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
• IEC/EN61000-4-3 Level 4 Radiated Field Immunity
• IEC/EN61000-4-2 Level 4 ESD Immunity
• IEC/EN 61000-4-3 10vrms Conducted Immunity
• IEC/EN 61000-4-8 - Power-frequency Magnetic Field Immunity
• IEC/EN 61000-4-11 - VDI
• IEC 61010-1 Overvoltage Category IV
• CISPR24/CISPR 35
• KN 35
• FCC part 15.107, 15.109
• FCC Part 15B, Class A
• EN 55032
• CISPR 32 /CISPR22
• KN32
• ICES-003
• EN 61000-3-3 - Harmonics emissions for up to 16am
