16 PORT POE+ 8 PORT MGIG UPOE DOWNLINKS WITH 4 10G UPLINKS

by
CISCO
PCN#
HH1397
MFG#
IE-9320-16P8U4X-A

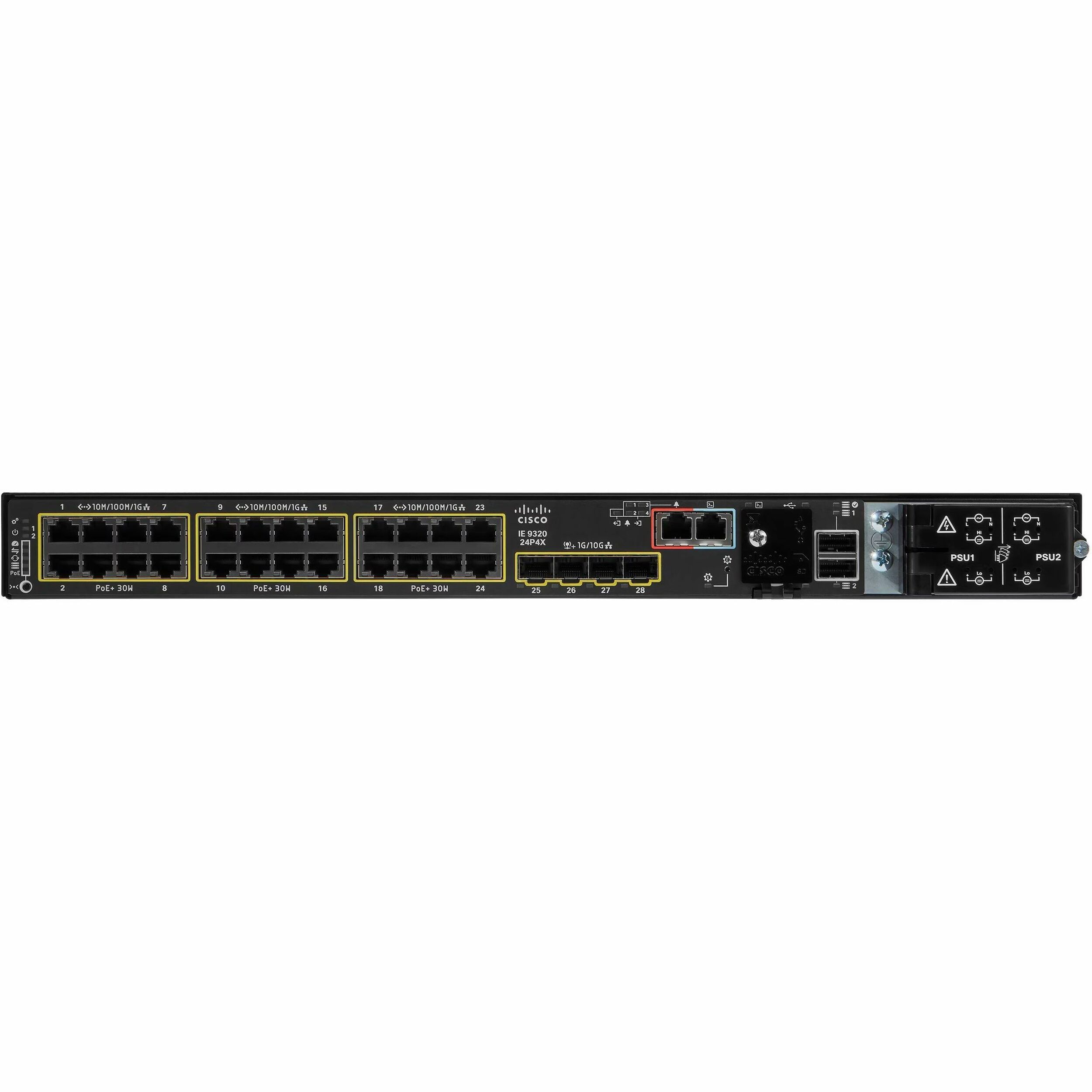

main product photo
fotorama-image
CISCO Authorized Dealer
$17,875.39
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 24 Ports
  • Manageable
  • Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 1 lbs.
Cisco Catalyst IE9300 Ethernet Switch

Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

These switches run Cisco IOS XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco Catalyst Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with support for Cisco Cyber Vision and Cisco Secure Network Analytics.

The IE9300 Rugged Series switches offer

Robust resiliency enabled by features such as dual ring design, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP)1, PROFINET, Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR)1ring, EtherChannel, integrated redundant power supplies, dying gasp, etc.True zero-touch replacement for middle-of-the-night or middle-of-nowhere failuresLine-rate, low-latency forwardingSimplified software managementSupport for industrial automation protocols EtherNet/IP (CIP) and PROFINET


Product Type

Ethernet SwitchTechnical Information

Features

FanlessIP30Interfaces/Ports

Total Number of Network Ports

24

Uplink Port

Yes

Stack Port

Yes

Network (RJ-45)

Yes

Port/Expansion Slot Details

16 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port8 x 100/1000/2500BASE-T Gigabit Ethernet PoE RJ-45 Network Port4 x 10 Gigabit Ethernet Expansion Upnlink1 x RS-232 RJ-45 Console Port1 x Micro USB PortMedia & Performance

Media Type Supported

Optical FiberTwisted Pair

Ethernet Technology

Gigabit Ethernet2.5 Gigabit Ethernet10 Gigabit Ethernet

Network Technology

10/100/1000Base-T10GBase-X2.5GBase-T

Maximum Data Transfer Rate

1.25 GB/sI/O Expansions

Total Number of Expansion Slots

4

Expansion Slot Type

SFP+

Number of SFP+ Slots

4Network & Communication

Layer Supported

3

Networking Standards

IEEE 802.3afIEEE 802.3atIEEE 802.3btIEEE 802.1QIEEE 802.1wIEEE 802.1abIEEE 802.1sIEEE 802.3adIEEE 802.1xIEEE 802.1aeIEEE 802.1pIEEE 802.1DIEEE 802.3ahIEEE 802.3uIEEE 802.3abIEEE 802.3zManagement & Protocols

Manageable

YesReliability

MTBF

250733 HourPower Description

PoE (RJ-45) Port

Yes

PoE Budget

720 W

Power Source

AC/DCPoE+

Power Consumption

45 WPhysical Characteristics

Compatible Rack Unit

1U

Form Factor

CompactRack-mountable

Height

1.7"

Width

17.5"

Depth

14"

Weight (Approximate)

9.90 lbMiscellaneous

Application/Usage

EnterpriseBusinessNetworkIP CameraWireless Access PointTransportationOutdoor

Certifications & Standards

Overview
Industry standardsEN 61000-6-2 IndustrialEN 61000-6-4 IndustrialEN 61000-6-1 Light IndustrialEN 61326 Industrial ControlIEEE 1613
2009 Electric Power Stations Communications NetworkingIEC 61850-3 Electric Substations Communications NetworkingEN 50121-4EN 50121-3-2
2016 +A1
2019EN 50125-3
2003EN 50125-1
2014AREMA C&S Manual 2019 part 11.5.1 and 11.5.2IP30 (per EN60529)IEC 61850-9-3 (Power Utility Profile)Product TypeEthernet SwitchTechnical InformationFeaturesFanlessIP30Interfaces/PortsTotal Number of Network Ports24Uplink PortYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details16 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port8 x 100/1000/2500BASE-T Gigabit Ethernet PoE RJ-45 Network Port4 x 10 Gigabit Ethernet Expansion Upnlink1 x RS-232 RJ-45 Console Port1 x Micro USB PortMedia & PerformanceMedia Type SupportedOptical FiberTwisted PairEthernet TechnologyGigabit Ethernet2.5 Gigabit Ethernet10 Gigabit EthernetNetwork Technology10/100/1000Base-T10GBase-X2.5GBase-TMaximum Data Transfer Rate1.25 GB/sI/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP+Number of SFP+ Slots4Network & CommunicationLayer Supported3Networking StandardsIEEE 802.3afIEEE 802.3atIEEE 802.3btIEEE 802.1QIEEE 802.1wIEEE 802.1abIEEE 802.1sIEEE 802.3adIEEE 802.1xIEEE 802.1aeIEEE 802.1pIEEE 802.1DIEEE 802.3ahIEEE 802.3uIEEE 802.3abIEEE 802.3zManagement & ProtocolsManageableYesReliabilityMTBF250733 HourPower DescriptionPoE (RJ-45) PortYesPoE Budget720 WPower SourceAC/DCPoE+Power Consumption45 WPhysical CharacteristicsCompatible Rack Unit1UForm FactorCompactRack-mountableHeight1.7"Width17.5"Depth14"Weight (Approximate)9.90 lbMiscellaneousApplication/UsageEnterpriseBusinessNetworkIP CameraWireless Access PointTransportationOutdoorCertifications & Standards
Tech Specs
Safety standards and certificationsInformation technology equipment
  • UL/CSA 60950-1
  • EN 60950-1, CB to IEC 60950-1 with all country deviations
  • UL/CUL 62368-1, CB to IEC62368-1 with country deviations
  • NOM to NOM-019-SCFI (through partners and distributor)
  • Industrial floor (control equipment)
  • CB report and certificate to IEC 61010-2-201
  • UL/CSA 61010-2-201
  • CSA C22.2, No.142
  • Hazardous locations
  • UL 121201 (Class l, Div 2, groups A-D)
  • CSA 213 (Class l, Div 2, groups A-D)
  • UL/CSA 60079-0, -7 (Class l, Zone 2, Gc/IIC)
  • IEC 60079-0, -7 IECEx test report (Class l, Zone 2, Gc/IIC, ec)
  • EN 60079-0, -7 ATEX certificate (Class l, Zone 2, Gc/IIC, ec)
CertificationsEnvironmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)WarrantyLimited Warranty5 Year
