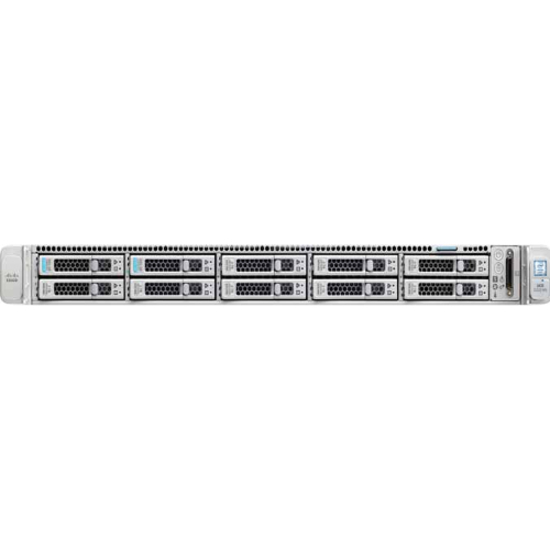

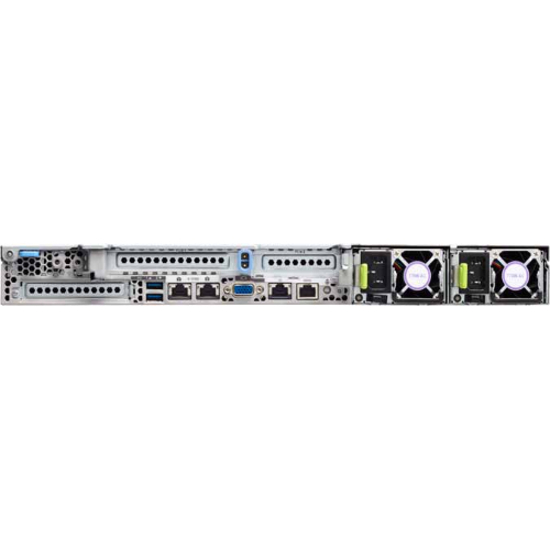

Cisco HyperFlex Barebone System - 1U Rack-mountable - 2 x Processor Support

Name: Cisco HyperFlex Barebone System - 1U Rack-mountable - 2 x Processor Support
Brand: CISCO
SKU: 6LH430
Price: 2613.65 USD
Availability: InStock

CISCO

PCN#

6LH430

MFG#

HXAF220C-M5SN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,613.65

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C620 Chip
3 TB DDR4 SDRAM DDR4
2666/PC4
21300 Maximum RAM Support
24 Total Memory Slots
12Gb/s SAS RAID Supported Controller
ASPEED Pilot 4 16 MB Graphic(s)
10 2.5" Bay(s)
Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze)
10 Gigabit Ethernet
2 USB 3.0 Port(s)

Product Condition: New and Factory Fresh

Shipping Weight: 40 lbs.

Cisco HyperFlex Barebone System - 1U Rack-mountable - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	HXAF220C-M5SN
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Line	HyperFlex
Product Series	HXAF220c M5
Product Name	HyperFlex HXAF220c M5 Barebone System
Marketing Information	Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate. The HXAF220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
Product Type	Barebone System

Processor

Number of Nodes	1
Number of Processors Supported	2
Processor Supported	Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C620

Memory

Maximum Memory Supported	3 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21300
Number of Total Memory Slots	24

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	Pilot 4
Graphics Memory Capacity	16 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	10
Number of Internal 2.5" Bays	10

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2

Power Description

Input Voltage

120 V AC
230 V AC

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	19"
Depth	31"
Weight (Approximate)	37.50 lb

Miscellaneous

Country of Origin

United States
