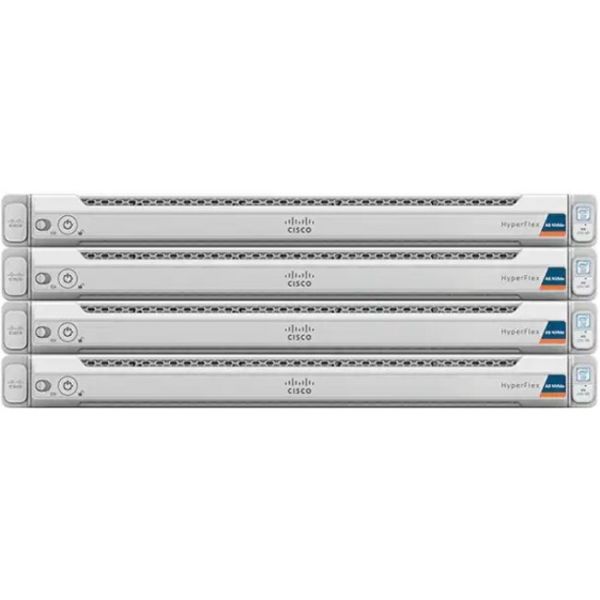

Cisco HyperFlex HX220 M6 Barebone System - 1U Rack-mountable - 2 x Processor Support

Name: Cisco HyperFlex HX220 M6 Barebone System - 1U Rack-mountable - 2 x Processor Support
Brand: CISCO
SKU: 9JX632
Price: 2917.99 USD
Availability: InStock

CISCO

PCN#

9JX632

MFG#

HXAF-E-220M6S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,917.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621A Chip
4 TB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
32.0 Total Memory Slots
12Gb/s SAS, Serial ATA/600 Controller
Matrox G200e 8 MB Graphic(s)
Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze)
Gigabit Ethernet, 10 Gigabit Ethernet
2 USB 3.0 Port(s)
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media.

Shipping Weight: 40 lbs.

Cisco HyperFlex HX220 M6 Barebone System - 1U Rack-mountable - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	HXAF-E-220M6S
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Line	HyperFlex
Product Series	HX220 M6 Edge
Product Model	HX220 M6
Product Name	HyperFlex HX220 M6 Edge Barebone System
Marketing Information	Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives).
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Supported	Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Memory

Maximum Memory Supported	4 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	32.0

Storage

Supported Storage Drive Interfaces

SAS-3
Serial ATA III

Controllers

Controller Type	12Gb/s SAS Serial ATA/600
RAID Supported	No

Display & Graphics

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet
10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	10
Total Number of Expansion Slots	5.0
Number of PCI Express x16 Slots	5

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Number of VGA Ports	1

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	16.9"
Depth	30"
Weight (Approximate)	42.55 lb

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media.
