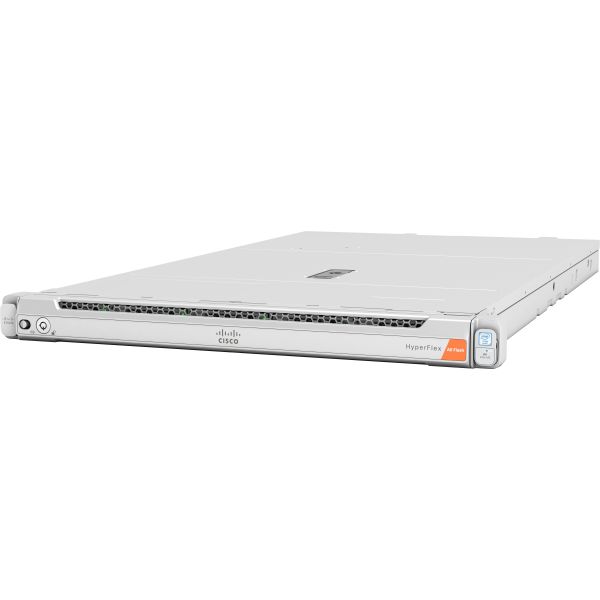

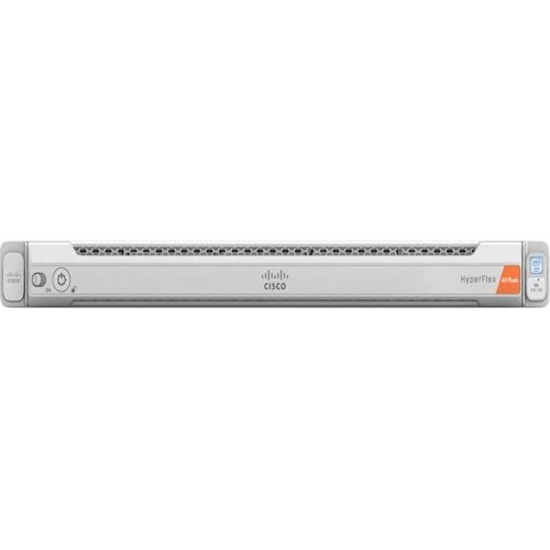

Cisco HyperFlex Barebone System - 1U Rack-mountable - 2 x Processor Support

Name: Cisco HyperFlex Barebone System - 1U Rack-mountable - 2 x Processor Support
Brand: CISCO
SKU: 4AZ344
Price: 2568.06 USD
Availability: InStock

CISCO

PCN#

4AZ344

MFG#

HXAF-E-220M5SX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,568.06

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C620 Chip
3 TB DDR4 SDRAM DDR4
2666/PC4
21300 Maximum RAM Support
24 Total Memory Slots
12Gb/s SAS RAID Supported Controller
ASPEED Pilot 4 16 MB Graphic(s)
10 2.5" Bay(s)
Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze)
10 Gigabit Ethernet
2 USB 3.0 Port(s)

Product Condition: New and Factory Fresh

Shipping Weight: 40 lbs.

Cisco HyperFlex Barebone System - 1U Rack-mountable - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	HXAF-E-220M5SX
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Line	HyperFlex
Product Series	HXAF220c M5
Product Name	HyperFlex HXAF220c M5 Barebone System
Marketing Information	Cisco HyperFlex™ Systems provides an all-purpose virtualized server platform, with hypervisor hosts, networking connectivity, and virtual server storage across a set of Cisco UCS HX-Series x86 rack-mount servers. It combines the convergence of computing and networking provided by Cisco UCS, along with next-generation hyperconverged storage software, to uniquely provide the compute resources, network connectivity, storage, and hypervisor platform to run an entire virtual environment, all contained in a single uniform system. Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives). HyperFlex Edge operates using existing top of rack 1GE or 10GE switching with options for both single and dual switch configurations. Edge clusters are configured with replication factor 2 (RF2) to ensure availability during various failure scenarios. HyperFlex Edge is typically deployed in environments with a minimal infrastructure footprint, hence the use of UCS compute-only nodes is not supported. The HXAF-E-220M5SX Edge servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Supported	Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C620

Memory

Maximum Memory Supported	3 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21300
Number of Total Memory Slots	24

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	Pilot 4
Graphics Memory Capacity	16 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	10

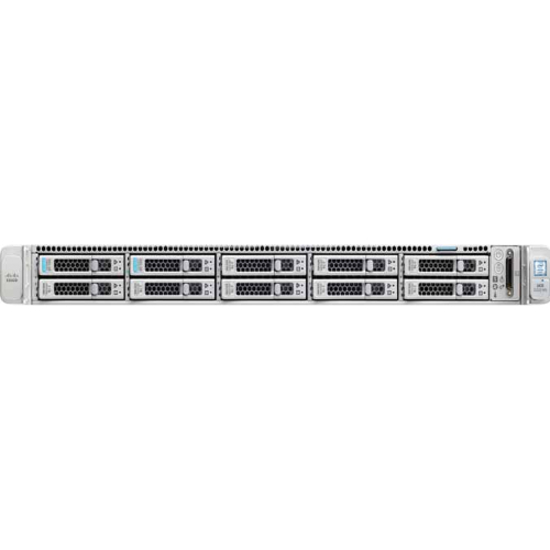

Number of Internal 2.5" Bays	10

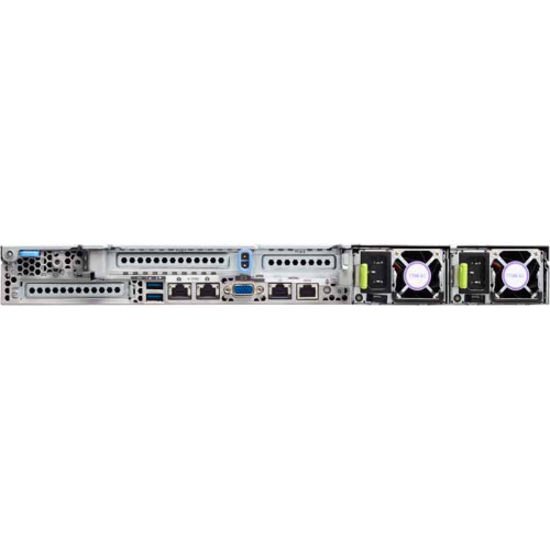

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2

Power Description

Input Voltage

120 V AC
230 V AC

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	19"
Depth	31"
Weight (Approximate)	37.50 lb
