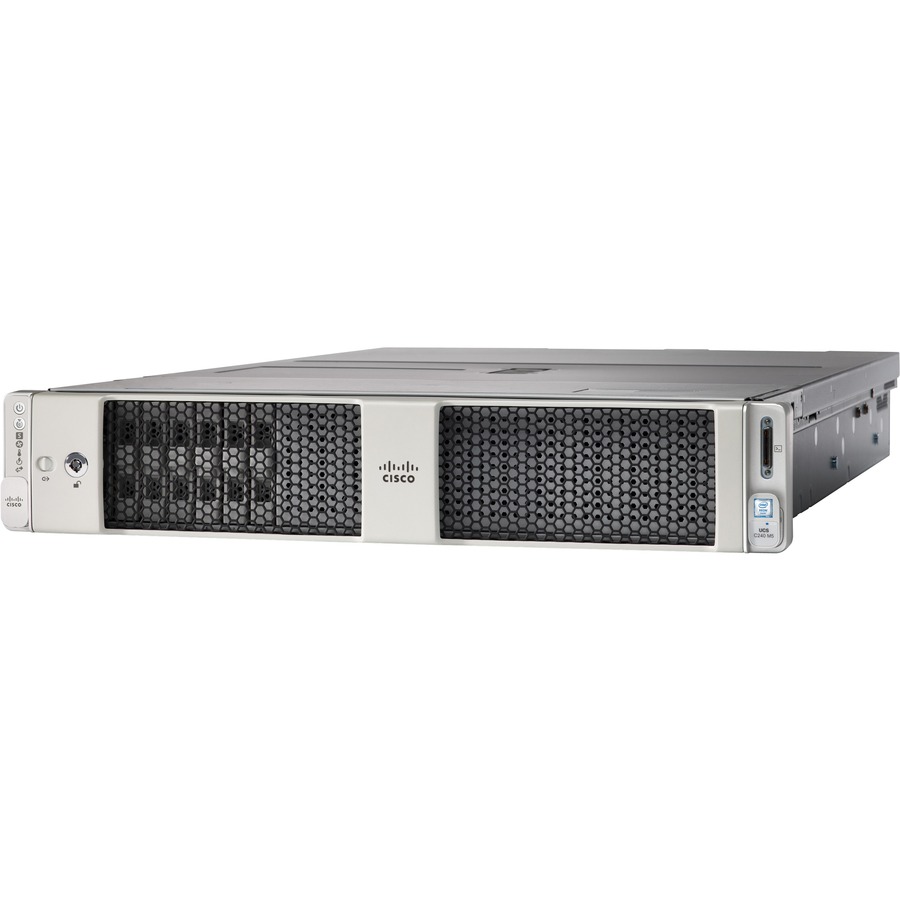

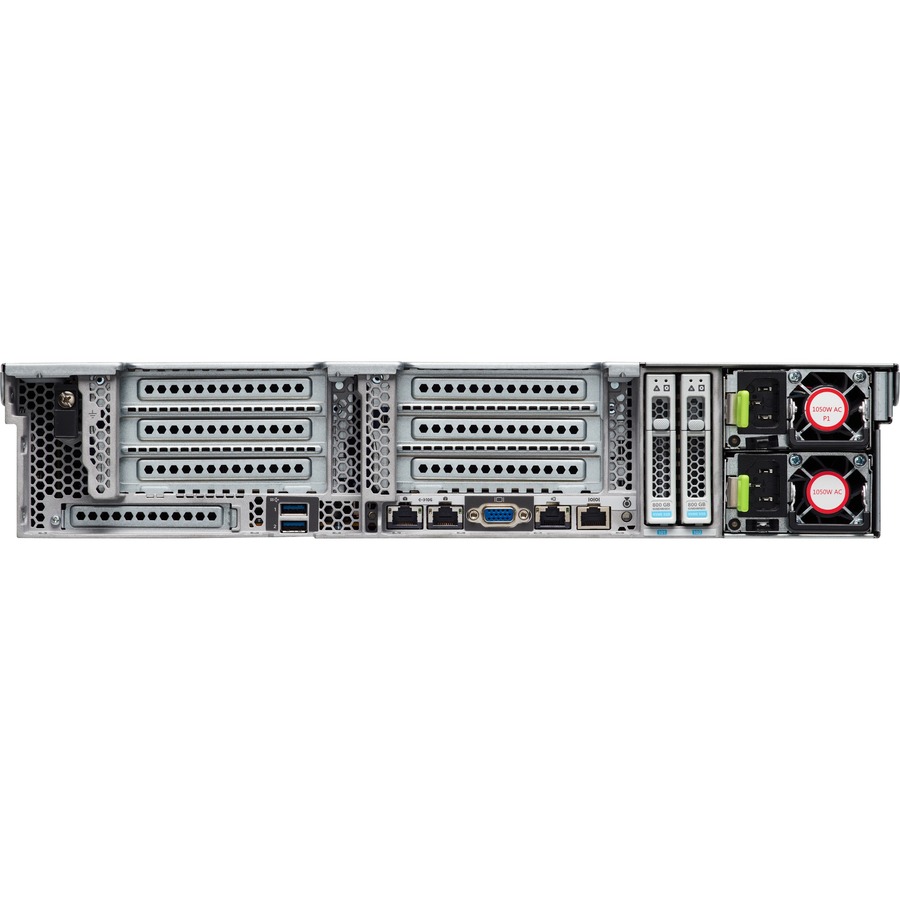

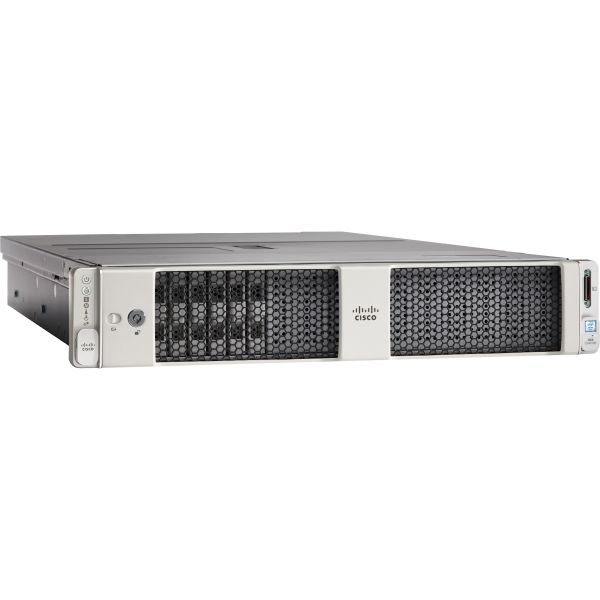

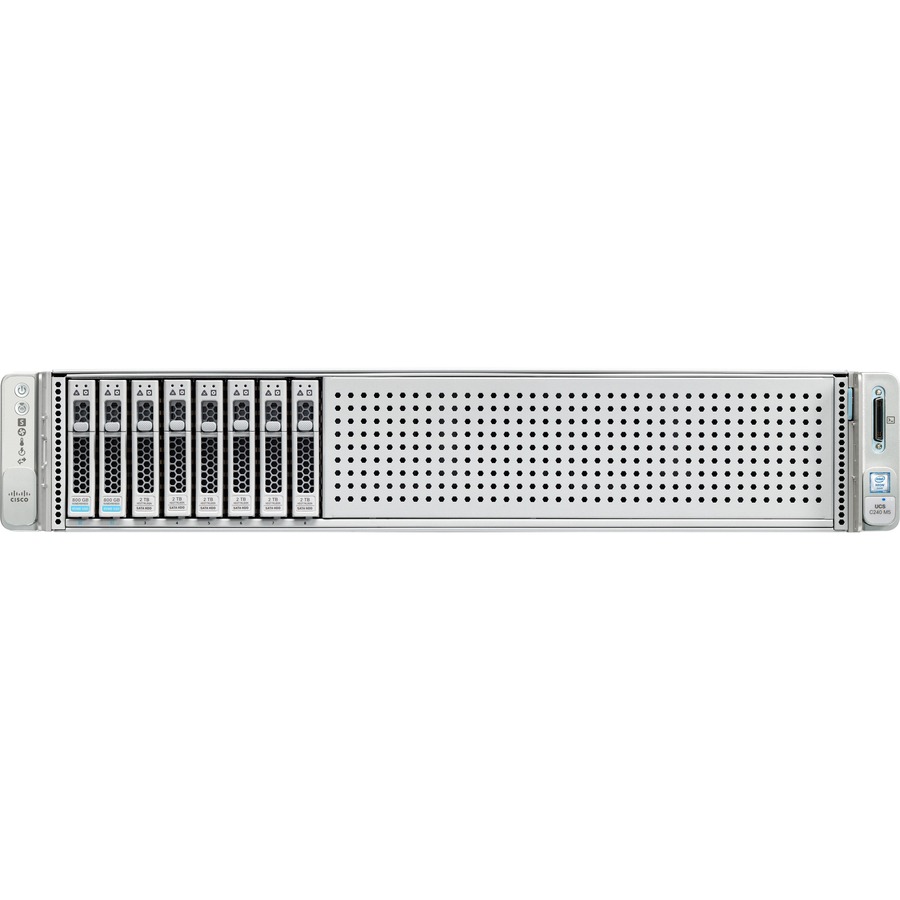

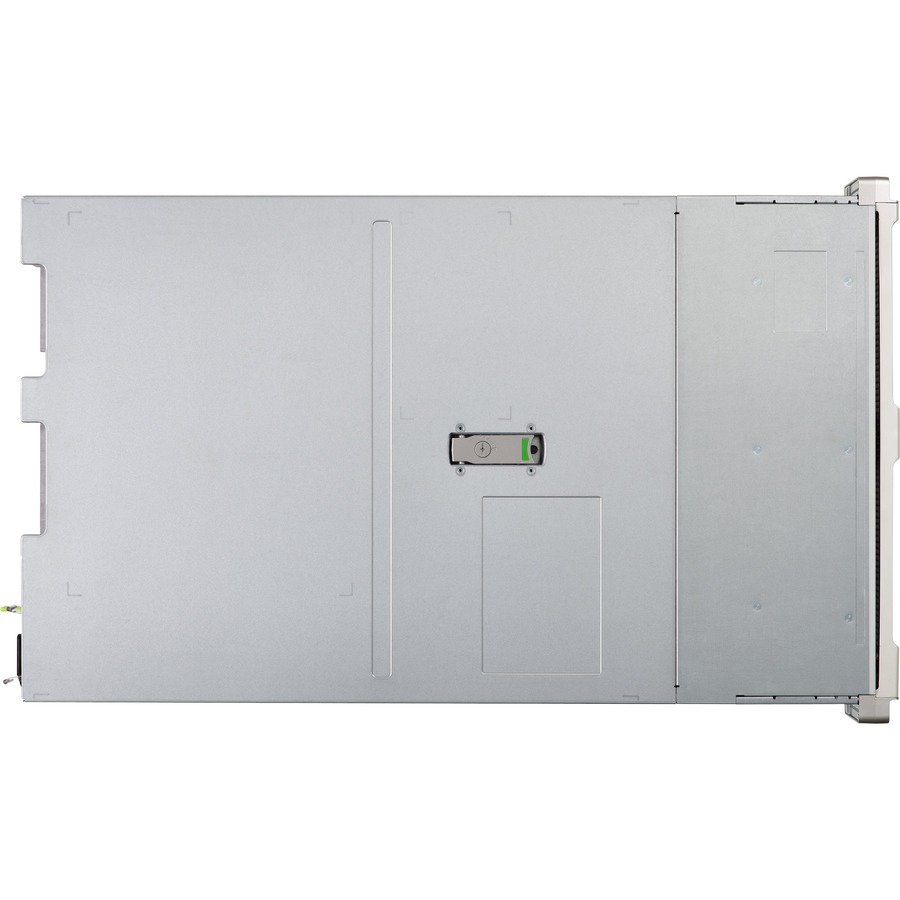

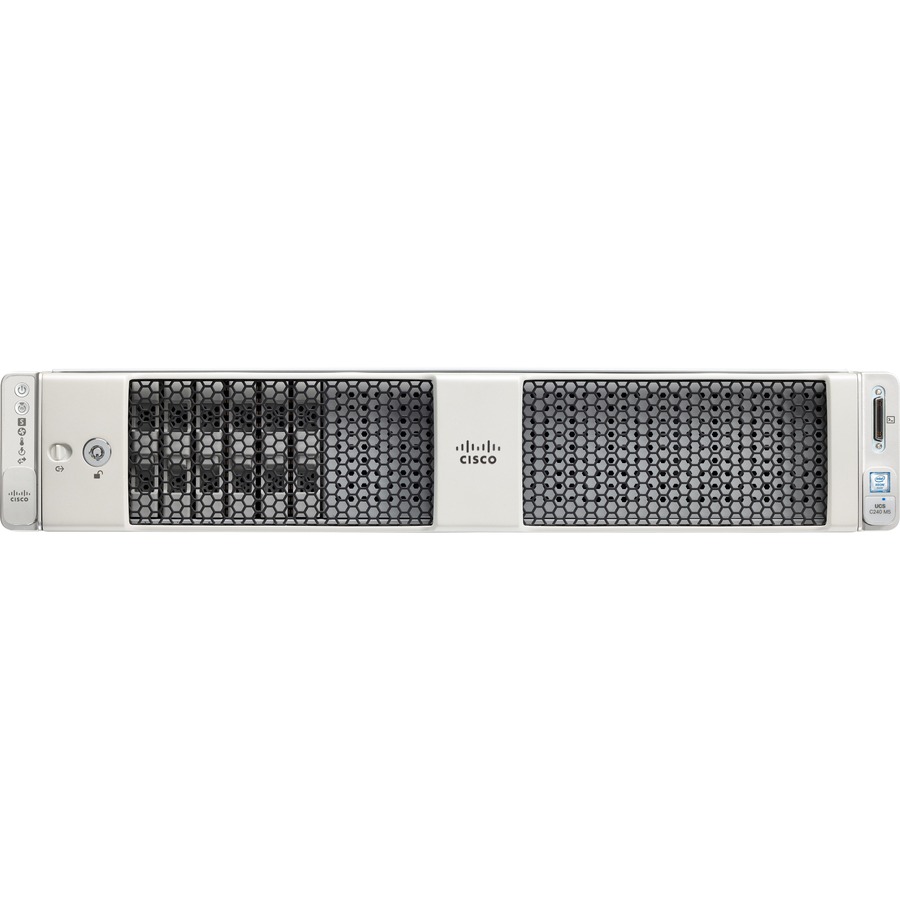

Cisco Barebone System - 2U Rack-mountable - 2 x Processor Support

Name: Cisco Barebone System - 2U Rack-mountable - 2 x Processor Support
Brand: CISCO
SKU: 6PQ476
Price: 2348.81 USD
Availability: InStock

CISCO

PCN#

6PQ476

MFG#

HX-C240-M5L

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,348.81

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C620 Chip
9 TB DDR4 SDRAM DDR4
2933/PC4
23466 Maximum RAM Support
24 Total Memory Slots
12Gb/s SAS RAID Supported Controller
Matrox G200e 8 MB Graphic(s)
12 3.5" Bay(s)
2 2.5" Bay(s)
Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze)
10 Gigabit Ethernet, Gigabit Ethernet
Intel Optane Memory Ready
2 USB 3.0 Port(s)
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Cisco Barebone System - 2U Rack-mountable - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	HX-C240-M5L
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C240 M5
Product Name	UCS C240 M5 Barebone System
Marketing Information	The UCS C240 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666-MHz or 2933-MHz DIMMs with capacity points up to 128 GB, 2666-MHz DCPMMs with capacity points up to 512 GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card. The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® OptaneTM DC Persistent Memory Modules (DCPMMs). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB DCPMMs). The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports. The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Supported	Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C620

Memory

Maximum Memory Supported	9 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2933/PC4-23466
Number of Total Memory Slots	24
Intel Optane Memory Ready	Yes

Storage

Optical Drive Type

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	14
Number of 3.5" Bays	12
Number of Internal 2.5" Bays	2

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2

Power Description

Input Voltage

120 V AC
230 V AC

Physical Characteristics

Product Color	Gray Silver
Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	19"
Depth	30.2"
Weight (Approximate)	66 lb

Miscellaneous

Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)

Warranty

Limited Warranty

3 Year
