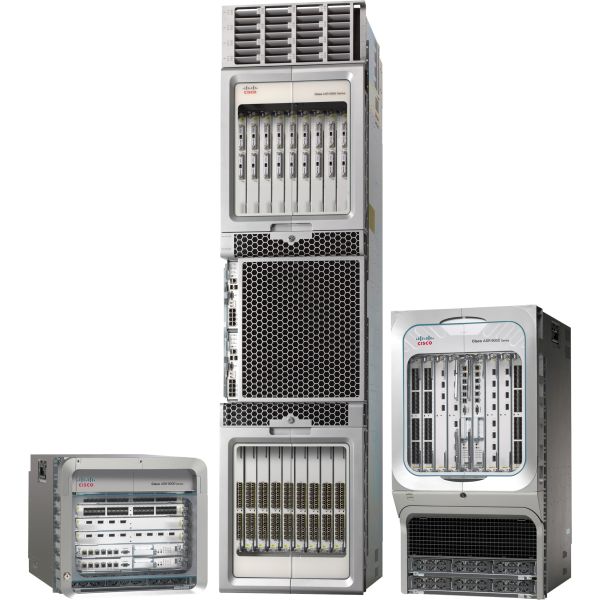

Cisco ASR 9010 Chassis

The Cisco ASR 9000 Series is an operationally simple, future-optimized platform using next-generation hardware and software. The following are highlights of this next-generation platform.

• The Cisco ASR 9000 System brings increased power and simplicity to the edge, and the ASR 9000v sets the industry benchmark as a virtualized compact carrier-class converged access and aggregation platform. Leveraging Cisco's "network virtualization" or nV Technology, the Cisco ASR 9000 System offers exceptional pay as you grow scale, carrier-class reliability, and simplified service provisioning.

• ACL
• AAA
• TACACS+
• SSH
• L2CP
• BPDU Filtering
• MAC limiting per EFP or Bridge Domain
• Unknown Unicast Flood Blocking (UUFB)
• DHCP snooping
• URPF
• Control-Plane Security
• Dynamic ARP Inspection DAI
• IP Source Guard IPSG

ETSI Standards:

• EN300 386: Telecommunications Network Equipment (EMC)
• ETSI 300 019 Storage Class 1.1
• ETSI 300 019 Transportation Class 2.3
• ETSI 300 019 Stationary Use Class 3.1

EMC Standards Emission:

• FCC Class 47CFR15 A
• ICES 003 Class A
• AS/NZS CISRP22 Class A
• CISPR 22 (EN55022) Class A
• VCCI Class A
• BSMI Class A
• IEC/EN 61000-3-12: Power Line Harmonics
• IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
• EN55022: Information Technology Equipment (Emissions)
• EN 50121-4: Railway EMC

EMC Standards Immunity:

• IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
• IEC/EN-61000-4-3: Radiated Immunity (10V/m)
• IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
• IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
• IEC/EN-61000-4-5: Signal Surge Ports (1kV)
• IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
• IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
• IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
• IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
• EN55024: Information Technology Equipment (Immunity)
• EN50082-1/EN-61000-6-1: Generic Immunity Standard
• EN 50121-4: Railway EMC

Safety:

• UL/CSA/IEC/EN 60950-1
• IEC/EN 60825 Laser Safety
• ACA TS001
• AS/NZS 60950
• FDA Code of Federal Regulations Laser Safety
• OSHA acoustic requirements
