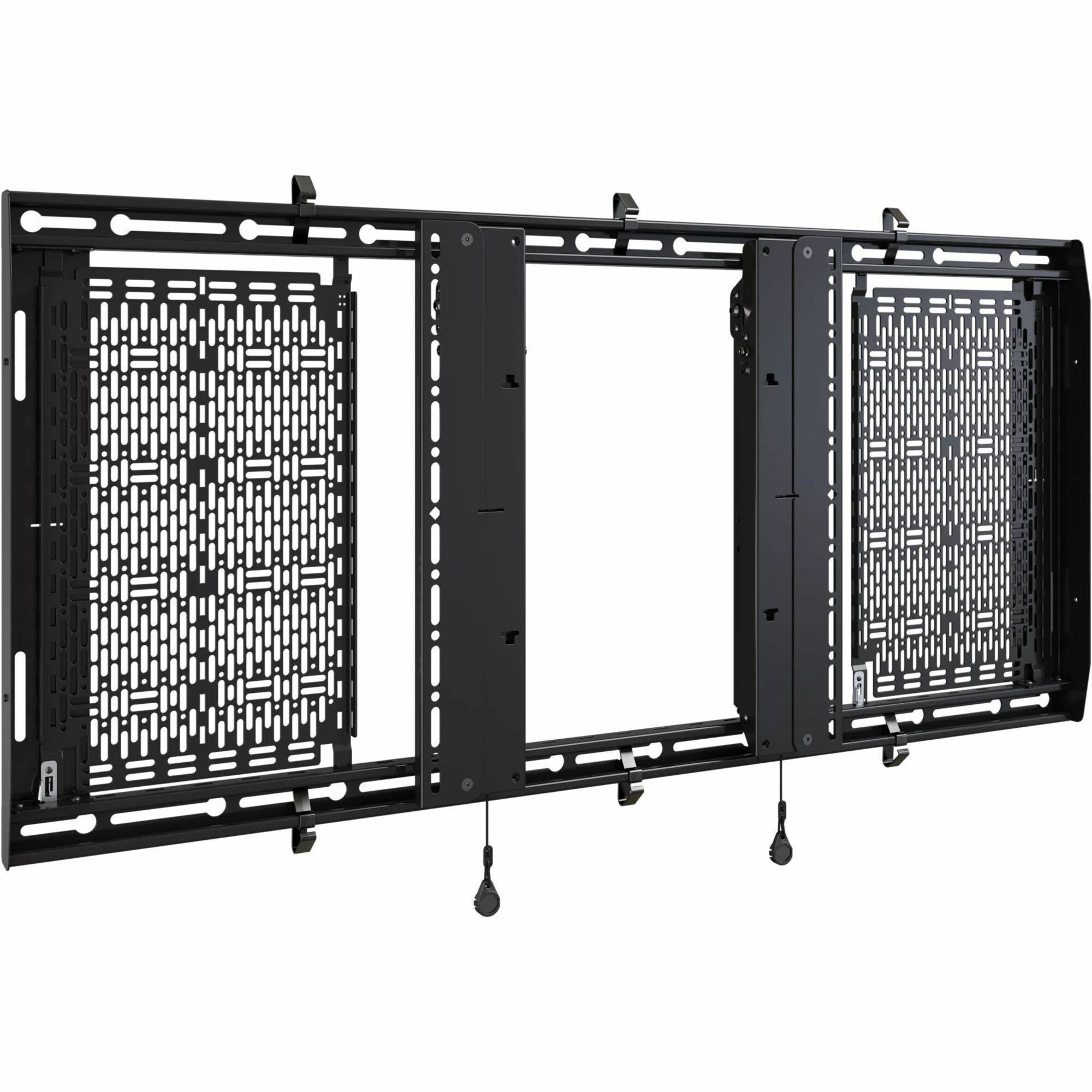

Chief Tempo Universal Flat Panel Wall Mount - For Displays 49-86" - Black

Accelerate AV Installations

• One part number, one box, one order!
• Ship to site pre-loaded with small devices and cabling.

Save Money

• Reduce onsite installation personnel and time.
• Minimize last-minute shipping costs of missing parts.

Feature Flexibility

• Wall plate and extending interface design facilitates centering display in the right position.
• 10° of adjustable display tilt in 2.5° increments.

Streamlined for Success

• Total installation depth facilitates ADA compliance*
• OSHPD approved and UL & TUV certified.
• Up to 1" (25 mm) post-install leveling adjustment.

*When display depth is less than 2" (51 mm) Integrated Storage

• Ships with two 15"x10" Lever Lock™ plates with space to add more.
• Storage plates can be moved along the mounting rail for best placement of components.
• Now includes six cable management clips to keep cables tidy for a professional-looking installation (Shipping as of October 2024).

Simplify Service

• 12.6" (320 mm) of service access.
• Open wall plate for easy positioning of power and data sources and in-wall storage.
• Home latch lockout clip prevents home latch from accidentally locking until pull cords are properly stowed.

Product TypeWall MountProduct InformationDevice Supported

• Flat Panel Display
• Audio/Video Device

Maximum Load Capacity200 lbMinimum Screen Size Supported49"Maximum Screen Size Supported86"Features

• Lateral Adjustment
• Extendable
• 0°/-10° Tilt
• Adjustable Tilt
• Flexible
• Storage Space
• Plumb Adjustment
• Micro Adjustment
• Latch Lock
• Cable Management
• Adjustable

OrientationLandscapeMount Pattern Compatibility TypeUniversalMinimum Tilt Angle-10°Maximum Tilt Angle10°Mount FunctionTiltMount SurfaceWallPhysical CharacteristicsColor FamilyBlackProduct ColorBlackVESA Mount CompatibleYesMounting Pattern970 x 450Form FactorWall MountableHeight19.75"Width42.03"Depth1.96"MiscellaneousPackage Contents

• Tempo Flat Panel Wall Mount System
• 2 x (15"x10") Lever Lock Plates
• 6 x Cable Management Clips

Application/Usage

• Stud
• Concrete

Country of OriginChinaWarrantyLimited Warranty10 Year
