C2G HDMI over Cat5/Cat6 Extender Box Transmitter to Receiver - up to 164ft

Name: C2G HDMI over Cat5/Cat6 Extender Box Transmitter to Receiver - up to 164ft
Brand: C2G
SKU: 9RF842
Price: 313.99 USD
Availability: InStock

C2G

PCN#

9RF842

MFG#

C2G60220

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$313.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Input Device
1 Output Device
164 ft Range
2 x Network (RJ
45)
1 x HDMI In
1 x HDMI Out
1080p
4K
Twisted Pair
Category 6a

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 2 lbs.

C2G HDMI over Cat5/Cat6 Extender Box Transmitter to Receiver - up to 164ft

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	C2G60220
Manufacturer Website Address	http://www.legrand.us
Brand Name	C2G
Product Name	HDMI over Cat5/Cat6 Extender Box Transmitter to Receiver - up to 164ft
Marketing Information	The HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 131ft to a 4K display using a single Cat6/6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling. This HDMI over Cat Extender is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio. With bi-directional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Note: Ensure a solid, reliable connection between the 4K HDMI Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Product Type	Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	164 ft

Video

Graphics Modes	4K
Supported Video Modes	1080p

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	2
Number of HDMI Inputs	1
Number of HDMI Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6a

Physical Characteristics

Color Family	Black
Product Color	Black
Transmitter Height	0.60"
Transmitter Width	3.54"
Transmitter Depth	3.54"
Receiver Height	0.60"
Receiver Width	3.54"
Receiver Depth	3.54"

Miscellaneous

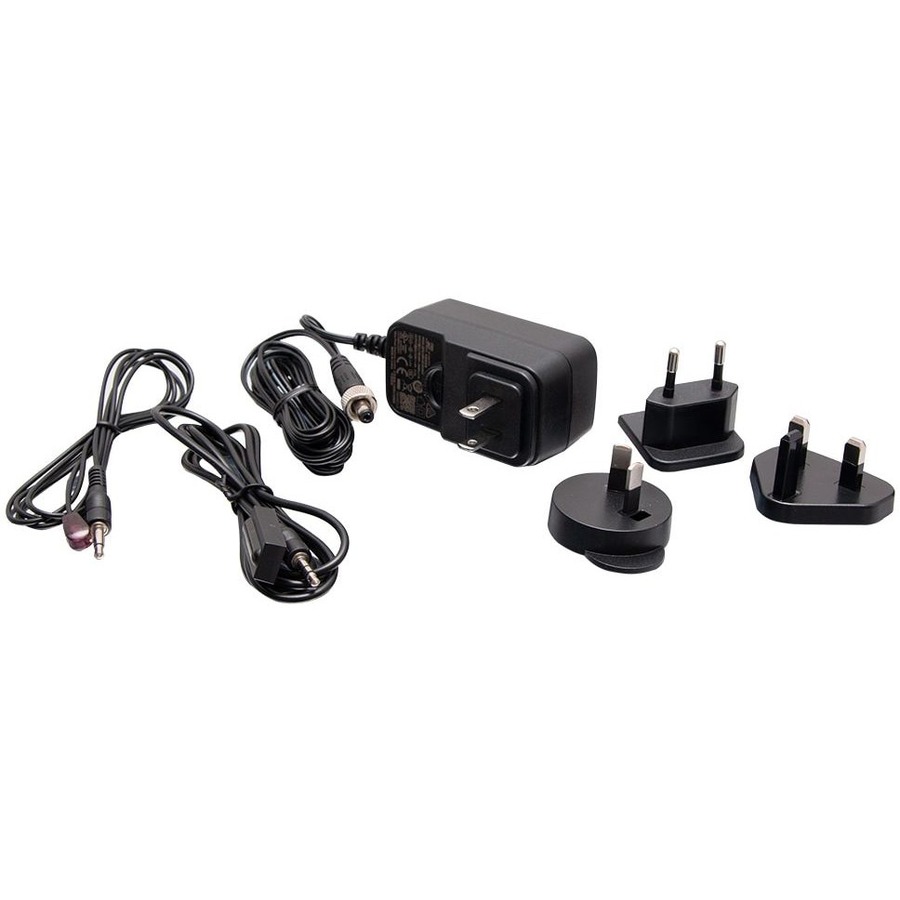

Package Contents	1 x Transmitter 1 x Receiver 1 x 12V/1A Power Adapter with UK, EU & AU Plug 1 x IR Emitter 1 x Broadband IR Receiver (30-50KHz) 4 x Mounting Brackets (with screws) 1 x User Manual
Country of Origin	China

Warranty

Limited Warranty

3 Year
